ETAS ES592.1 - CBP1205 Cable; HOST Interface Cable

ETAS Cable and Accessoires
ES592.1 - User Guide 55
9.1.2 CBP1205 Cable

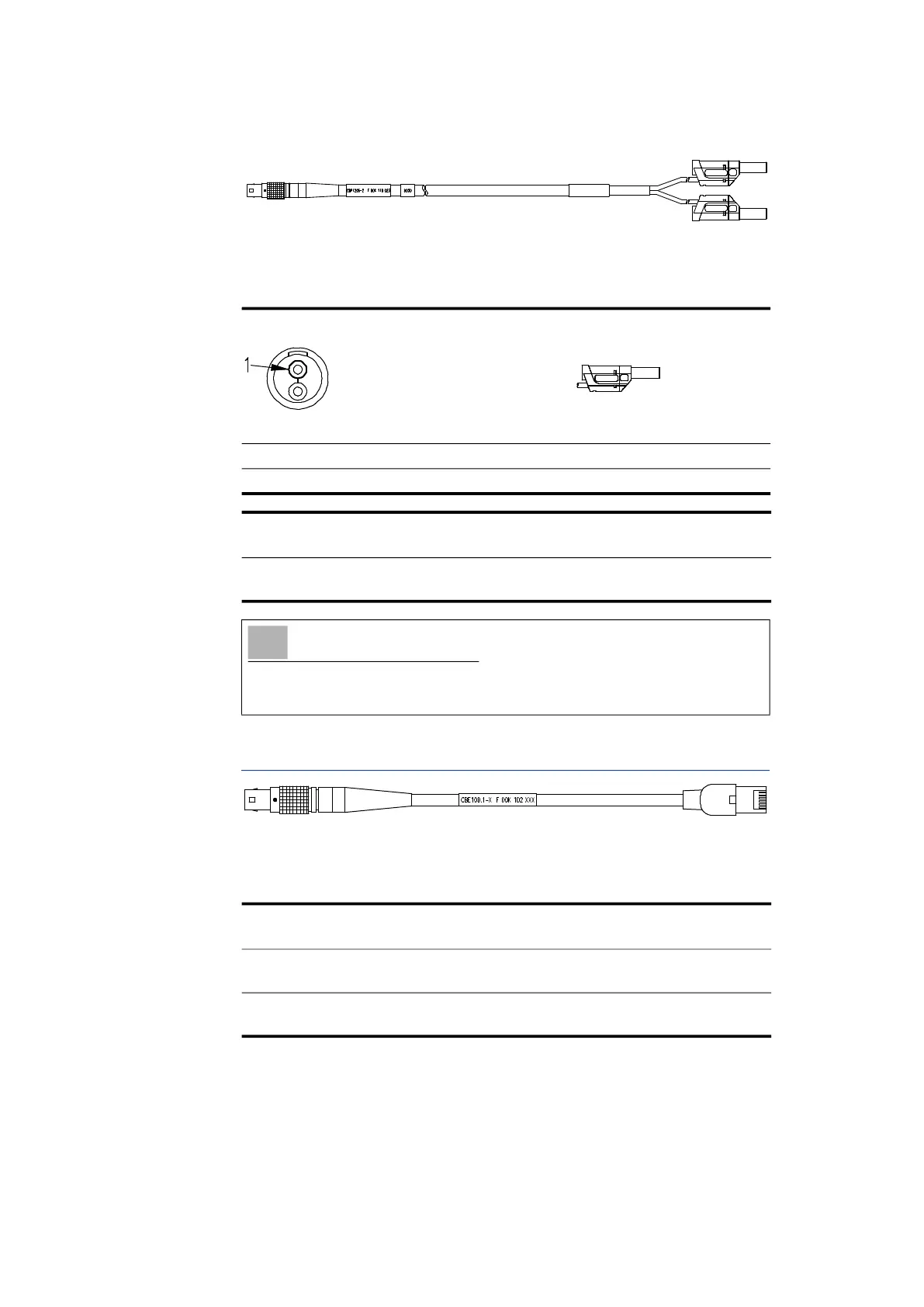

Fig. 9-2 Cable CBP1205 (power supply cable with safety banana plugs)
9.2 HOST Interface Cable
Fig. 9-3 CBE100-x Cable
Side A Side B
Side A Side B
Pin Signal Plug Signal
1 UBATT Red UBATT
2 Ground Black Ground
Order Name Short name Order
Number
Power Supply Cable, Lemo 1B FGJ –
Safety Banana (2mc-2mc), 2 m
CBP1205-2 F 00K 110 023
NOTE
Power supply cables with safety banana plug are suitable only for connection
to voltage sources with safety socket.
Side A Side B
Order Name Short name Order
Number
Ethernet PC Connection Cable, Lemo 1B
FGG - RJ45 (8mc-8mc), 3
m
CBE100-3 F 00K 102 559
Ethernet PC Connection Cable, Lemo 1B
FGG - RJ45 (8mc-8mc), 8 m
CBE100-8 F 00K 102 571
