8.10.5 CAN/LIN Interface (CAN1/LIN1 and CAN2/LIN2)

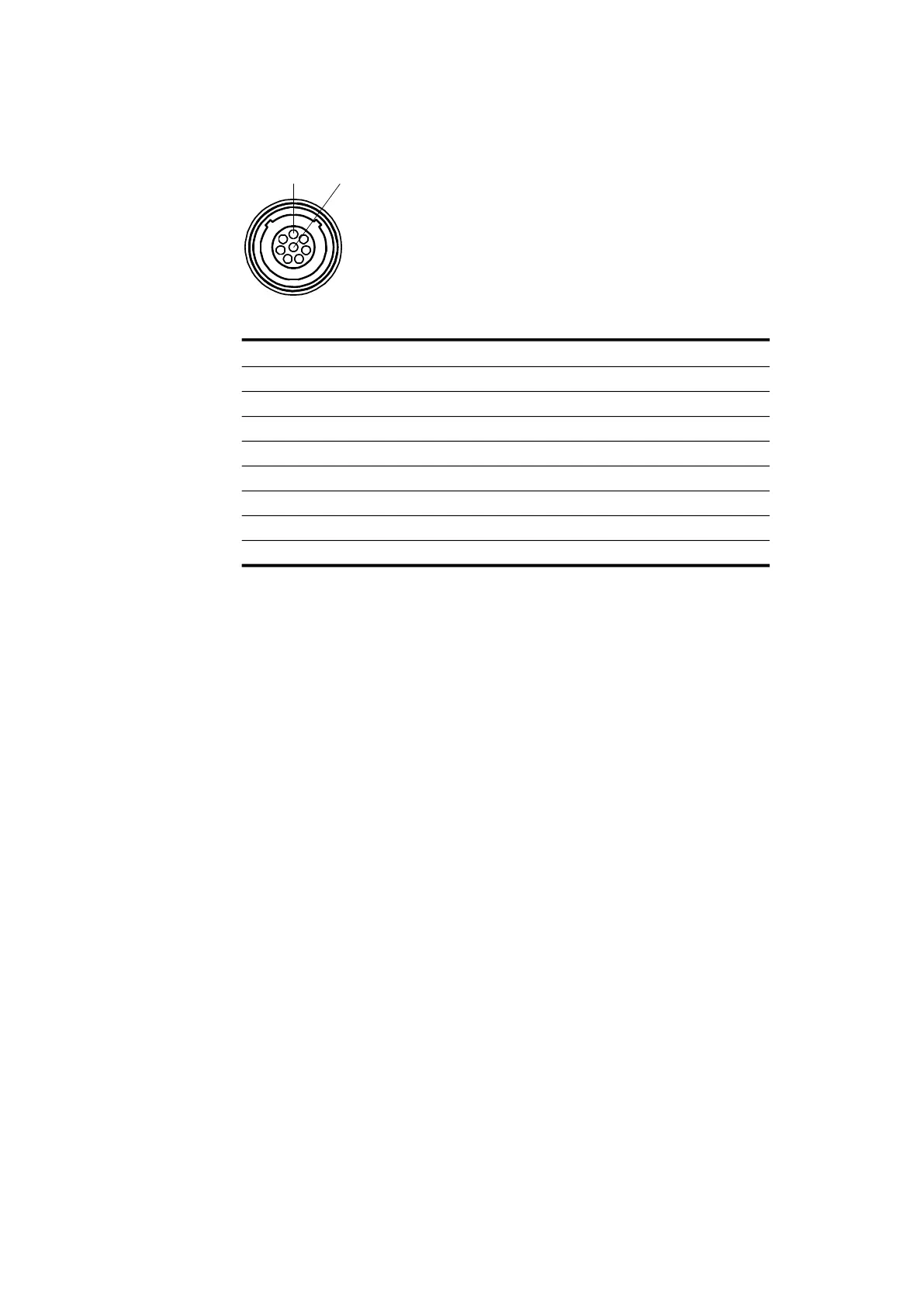

Fig. 8-6 CAN/LIN Interface (CAN1/LIN1 and CAN2/LIN2)
Pin Signal Meaning
1 UBATT (LIN)
2 CAN_LOW
3 CAN_GND
4 LIN
5 LIN_GND
6 CAN_GND
7 CAN_HIGH
8 - Reserved
1
8
