ETAS ES592.1 - Complex Module Network

ETAS Getting Started
ES592.1 - User Guide 32
To connect an ES592.1 with ES59x measure modules
1. Connect the ETH1 port of the ES592.1 with the Ethernet cable
CBE130.
2. Connect the second cable connector with the HOST port of an
ES59x measure module.
3. Connect further modules in accordance with this principle with
the
ETH2 port of the ES592.1.
Complex Module Network
A complex module network consists of several cascaded ES59x line modules
with connected measure modules. ES59x measure modules are used in the
following example.
With larger module networks, it is a good idea to make a sketch of the planned

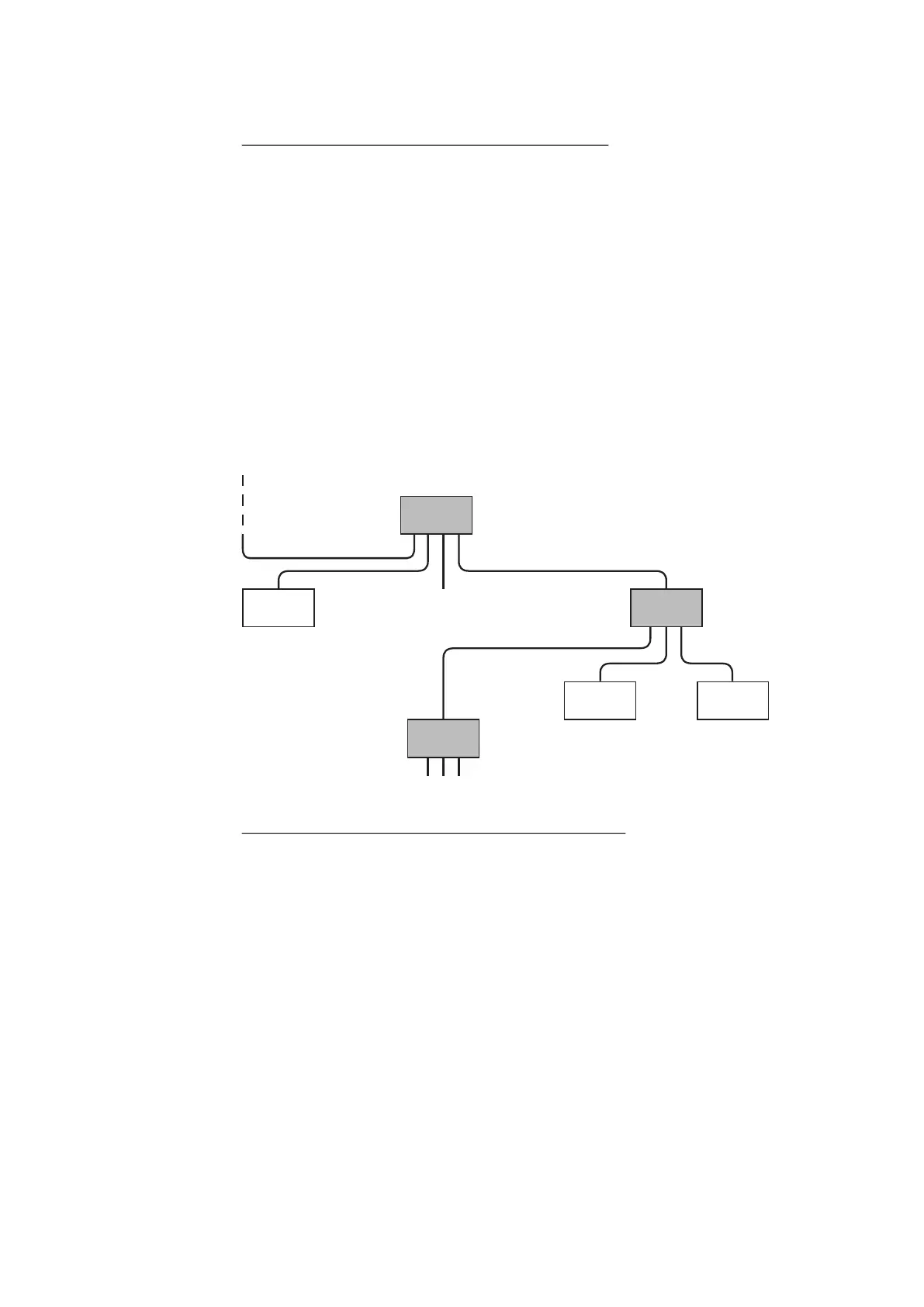

module network. The following figure shows an example of a module network
with three cascaded ES59x modules.
Fig. 6-5 Example of a Module Network
To connect an ES59x module with other ES59x modules
1. Connect the HOST port of the subordinate ES59x module with
the
ETH1 port or with the ETH2 port of the superordinate
ES592.1 module
or
1. connect the HOST port of the subordinate ES59x module with
the ETH1 port of the superordinate ES595.1 module
The superordinate ES59x module is nearer the host PC in the
hierarchy.
2. Connect further ES59x modules in accordance with this princi-
ple with other ETH ports of the ES59x module.
ES592
ES592ES595
ES592 ES595
ES59x
HOST
