Pigtail Adapter
• Provides data/power or power to fixtures mounted
using a fixture hanger (see Fixture Hanger on page
62 and Fixture Hanger for Emergency Lighting on
page 63 )
• Cables and connectors not shown; see options in
table at right
• Includes a blanking plug (part number J1648) for
fixtures that automatically terminate DMX (to
ensure that the DMX signal continues along the
OneTrack data run)
Connectors Color Model Number
powerCON + DMX
Black OTB-PTP-BLK
White OTB-PTP-WHT
TRUE1 +DMX
Black OTB-PTT-BLK
White OTB-PTT-WHT
TRUE1 Only
Black OTB-PTPWR-BLK
White OTB-PTPWR-WHT
OneTrack Backbone Pigtail Adapter

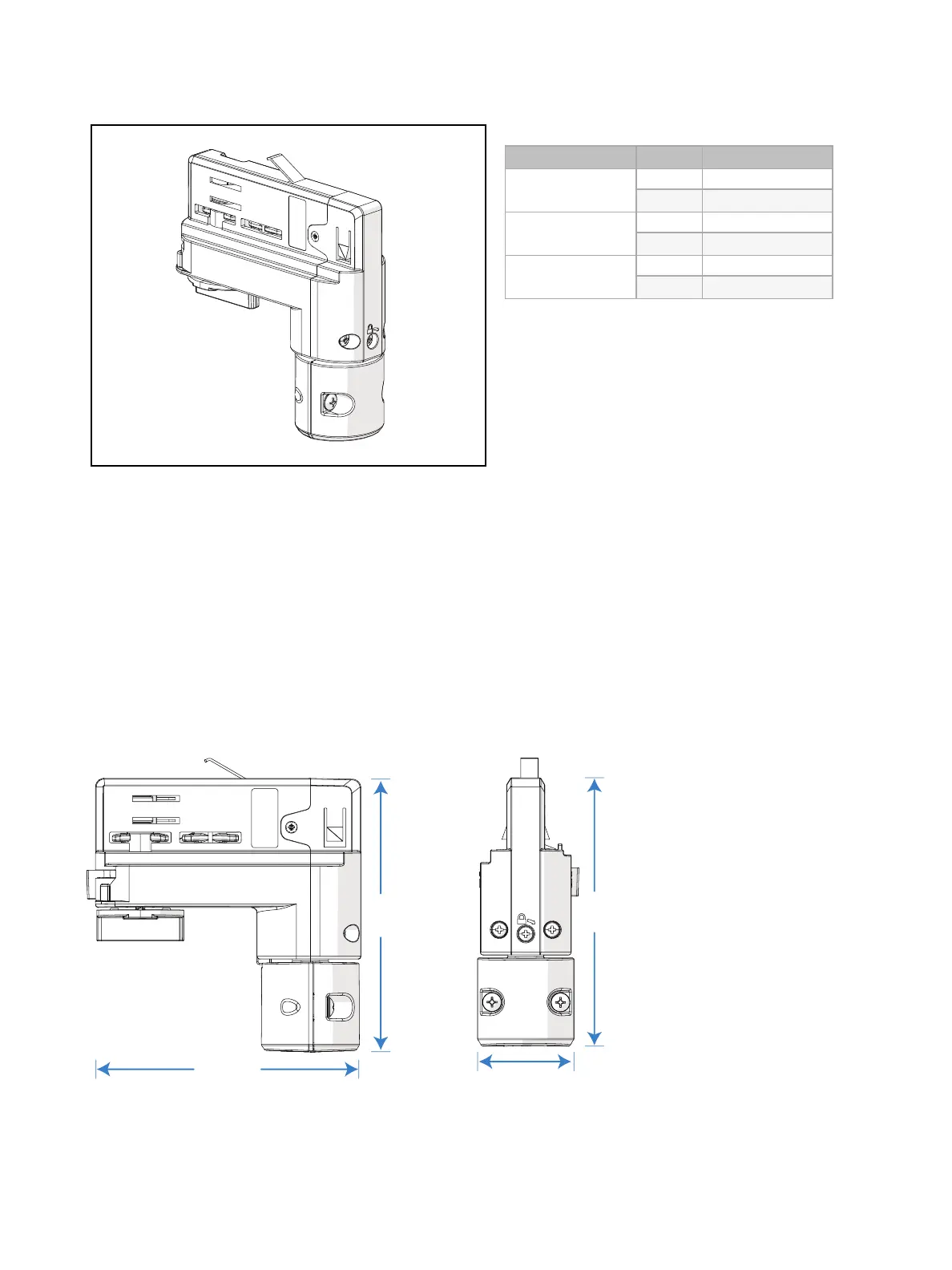

Dimensions
3.7 in
(94 mm)
3.8 in
(96 mm)
1.4 in
(35 mm)
3.8 in
(96 mm)
