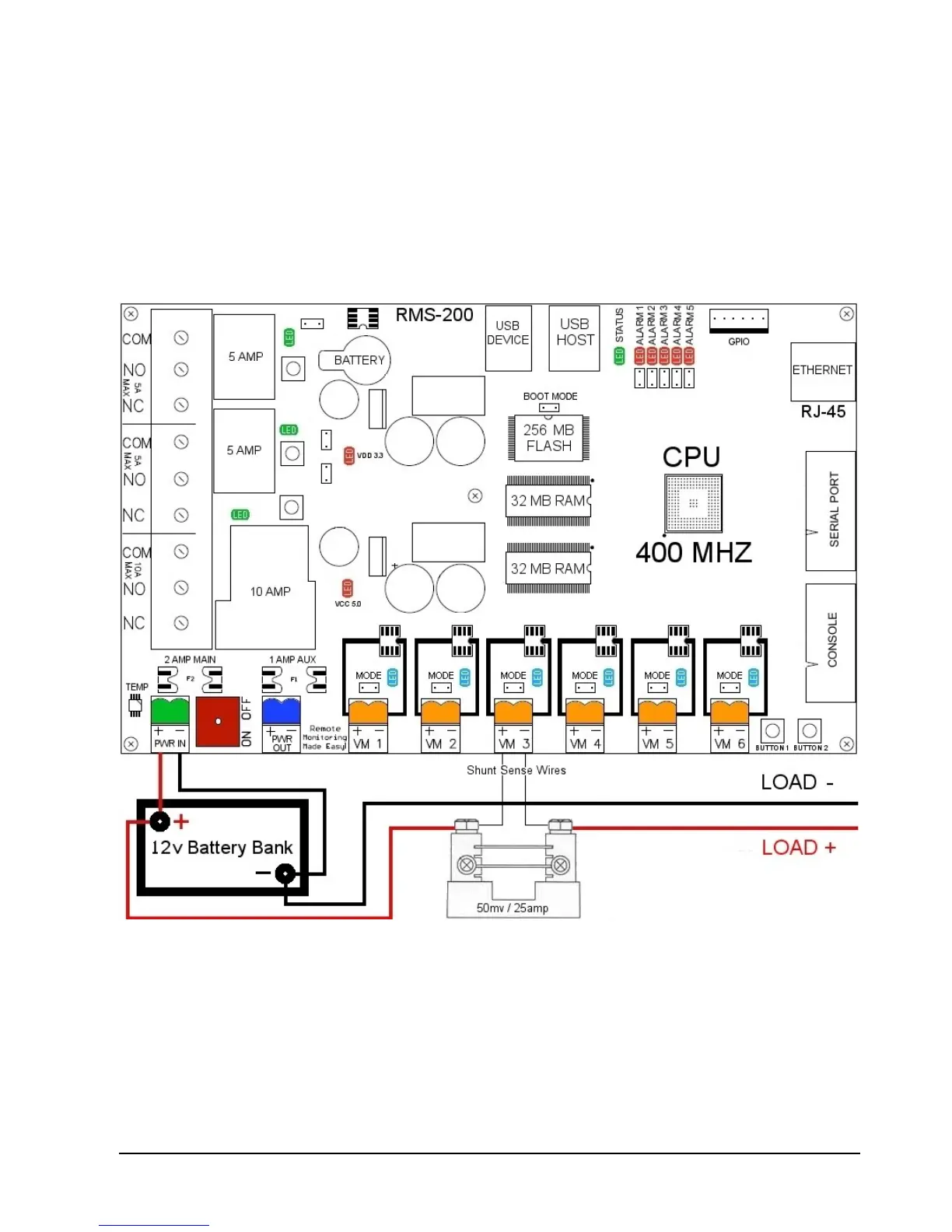

Below is an example of how to use RMS-200 with a shunt to measure current draw from your
equipment. The negative load wire is connected to the battery negative terminal. The positive
wire is routed to the positive battery terminal by way of a 50 millivolt 25 amp current shunt.
From one side of the shunt there is a sense wire run to the negative input on VM3. From the
other side of the shunt there is a sense wire run to the positive input on VM3.NOTE: Consult
the Owners Manual or the Manufacturer of the equipment you are measuring to determine if
there is any preference on which power wire the shunt should be hooked up to.
