e1 Assembly and User Manual - 13
30596-02A

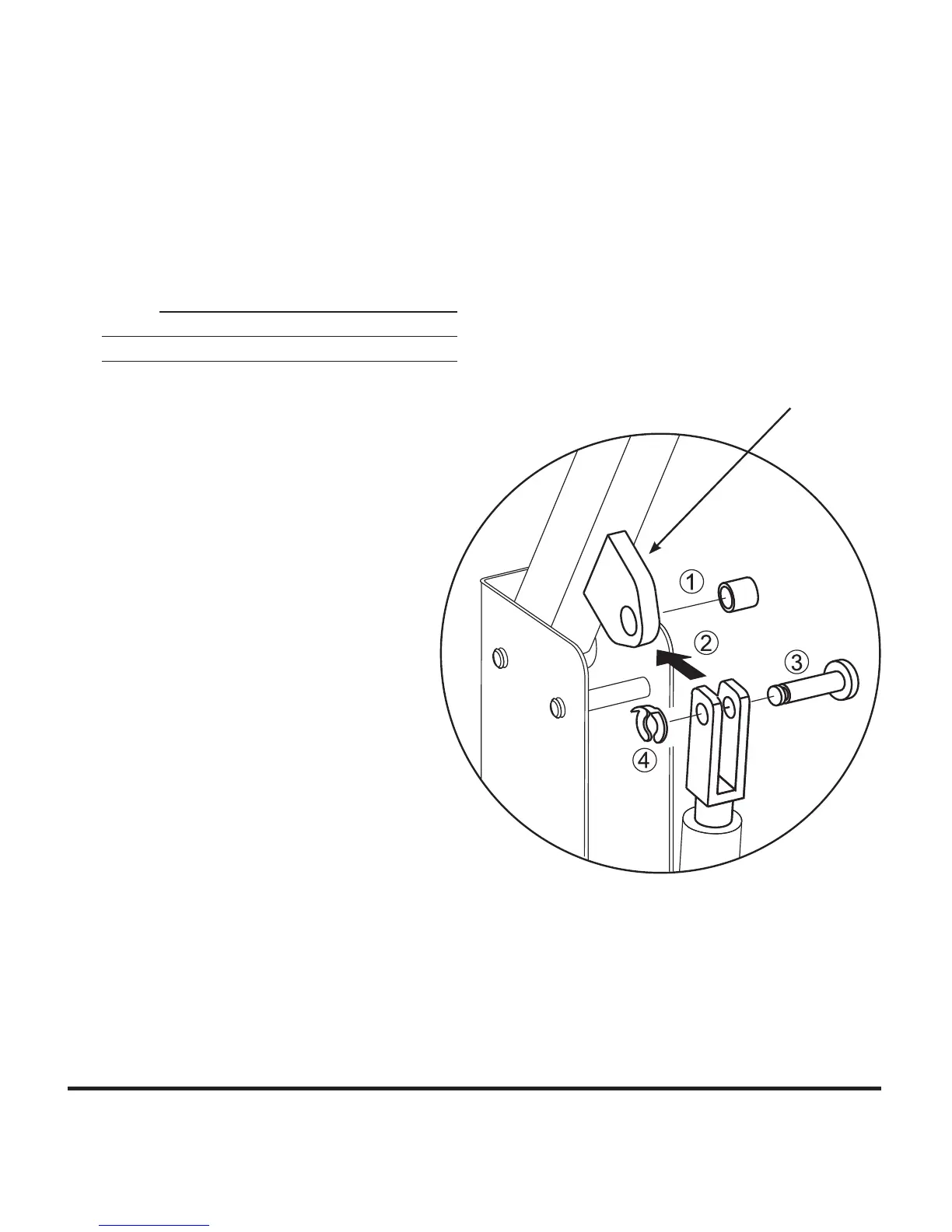

Attach Gas Springs
With the canopy still raised, slip the 1.
bronze bushings into the hole in the
clevis brackets on the underside of the
canopy arms.
Line up both clevis forks and carefully 2.
lower the canopy to engage the clevis
forks. Pay special attention when low-
ering the canopy that the clevis forks
do not damage the bronze bushings.
Bronze is excellent for smooth pivoting
applications such as this, but tends to be
soft compared to the steel clevis fork.
Lock the clevis forks in place with the 3.
10mm clevis pins.
Secure the clevis pins with the retaining 4.
rings.
NOTE: When this assembly is complete,
lift and lower the canopy a few times to
lubricate the gas springs for optimum
performance.
CLEVIS BRACKET
