12 - e1 Assembly and User Manual
30596-02A

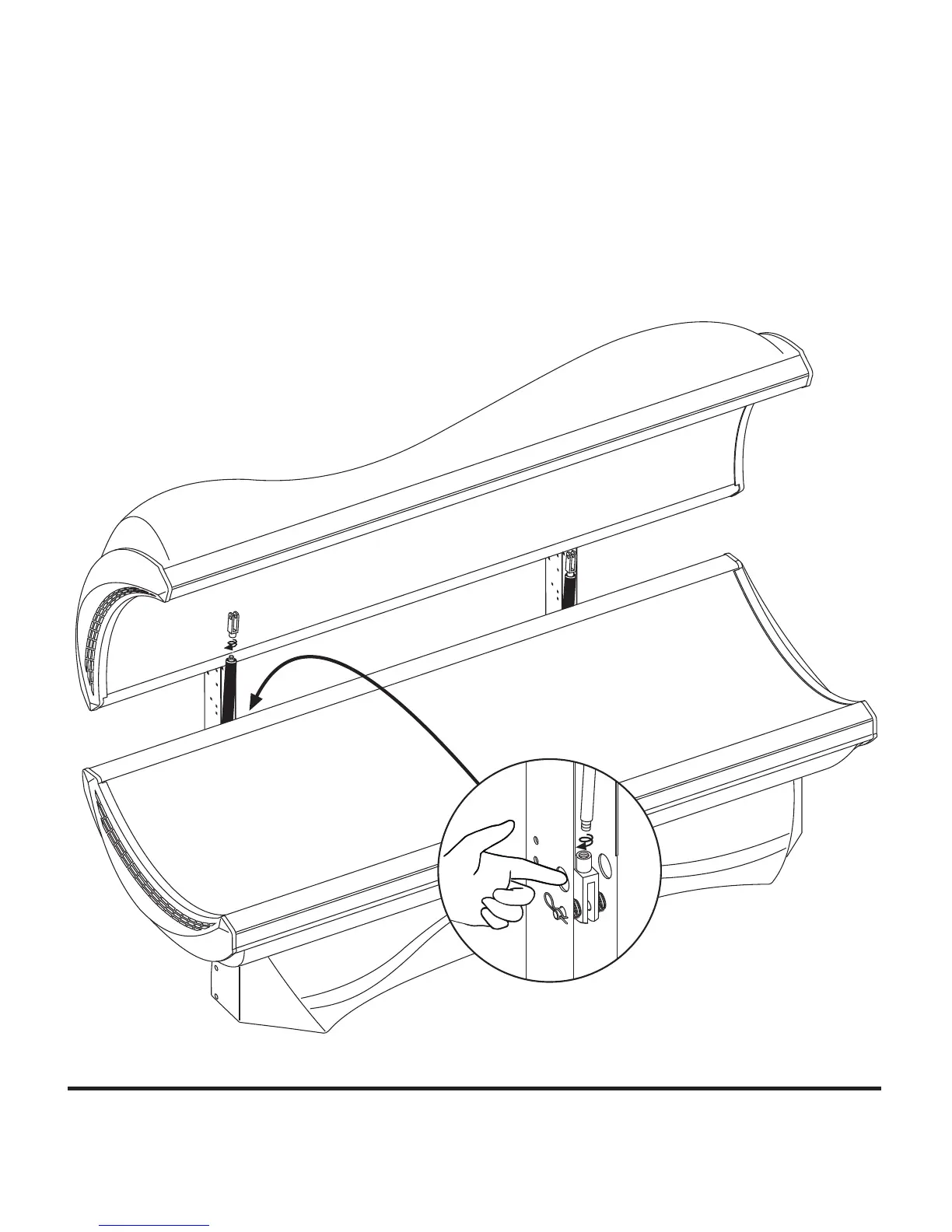

Install Gas Springs
Have a helper hold the canopy in its 1.
fully open position.
Make sure the threaded holes in the low-2.
er clevis forks face up (the large holes
above the clevis forks allow fi nger ac-
cess). Slide the gas springs down into the
stand uprights, piston end up as shown,
and twist the gas springs into the lower
clevis forks until they are snug.
Screw the upper clevis forks onto the gas 3.
springs.
Do not lower the canopy yet!
To Next Page
