e1 Assembly and User Manual - 11
30596-02A

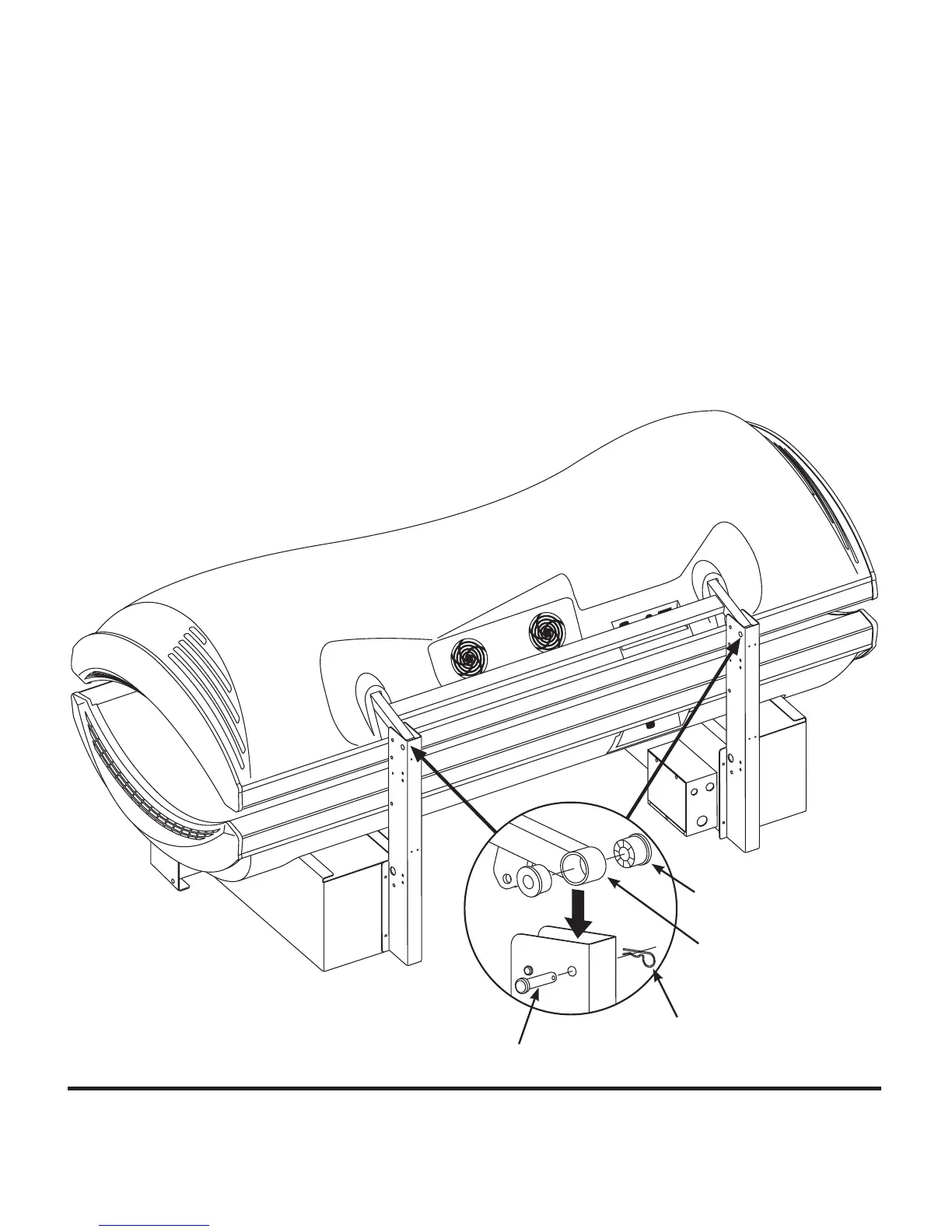

Canopy Installation
Place two nylon fl oating bearings into 1.
each canopy arm.
Holding the canopy over the bench, 2.
with the canopy arms inside the stand
uprights, insert clevis pins (5/16” x 2
1/32”) through the uprights and nylon
fl oating bearings to attach the canopy.
Secure the clevis pins by inserting the 3.
straight portion of a bridge pin through
the small hole in the end of the clevis
pin.
CLEVIS PIN
BRIDGE PIN
BEARING
CANOPY ARM
