CONTROL MODULES SECTION
Physical Specifications

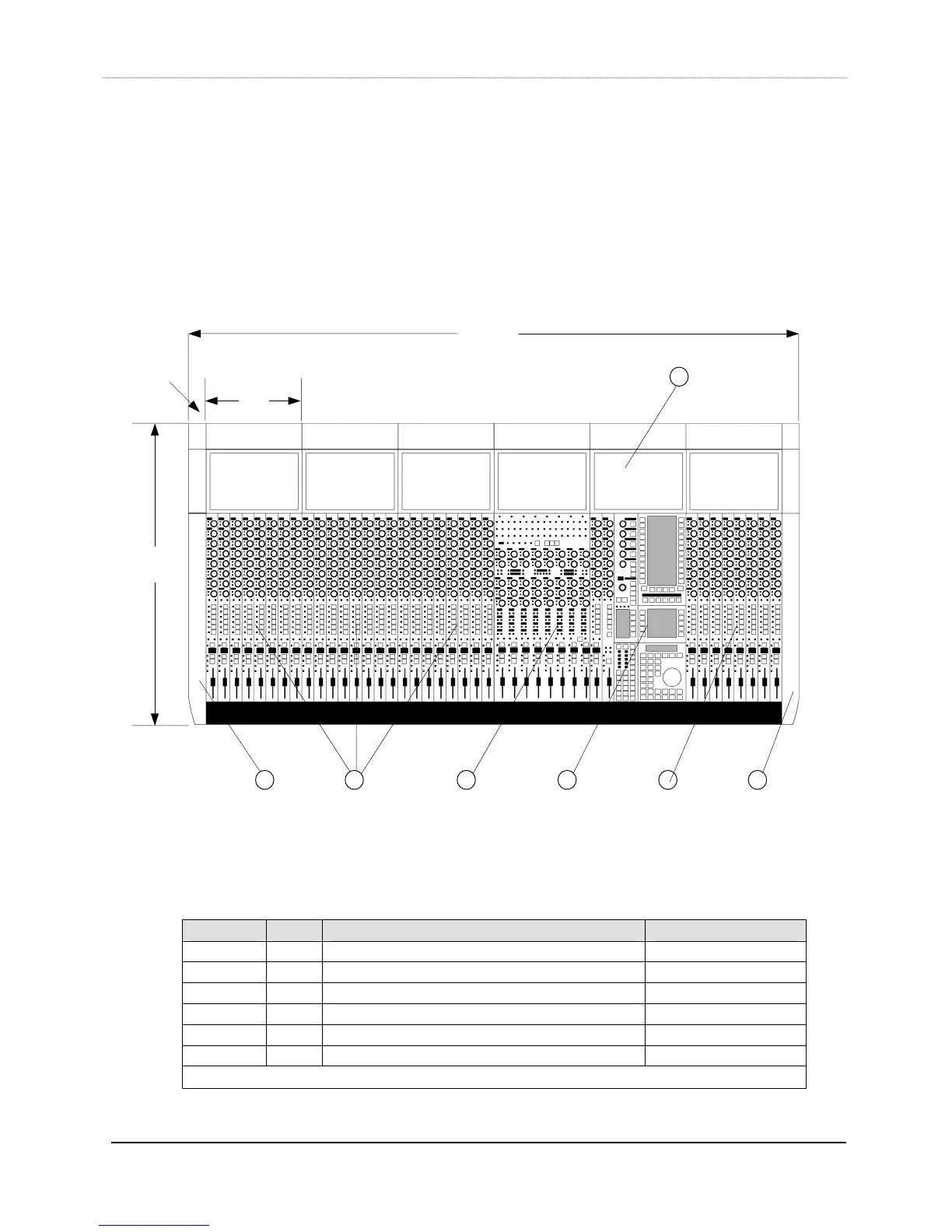

Top View - Control Modules
Frames are available in 6ft, 9ft, and 12ft sizes. Actual width of Control Surface is
frame size + 10 inches.
Item No. Qty Description Part No.
A * CM408 Control Module 946-05717-01
B * CM402 Control Module 946-05719-01
C 1 CM401 Control Module 946-05718-01
D * TFT Display Inc. in CM Module
1 1 Leg, right 726-06419-01
3 1 Leg, left 726-06398-01
*
Qty depends on specified configuration
12”
5”
6’10”
41”
A B C
D
1 3 A
