S5 Control Surface/Frame Manual Page 27 Version 1.0 ©1999 Euphonix, Inc.
Alternate Usage #1:
Another way of using these talkback inputs/outputs would be to have one switch
activate more than one talkback function. For example, a single switch can route the
Talkback signal to all four monitor outputs:

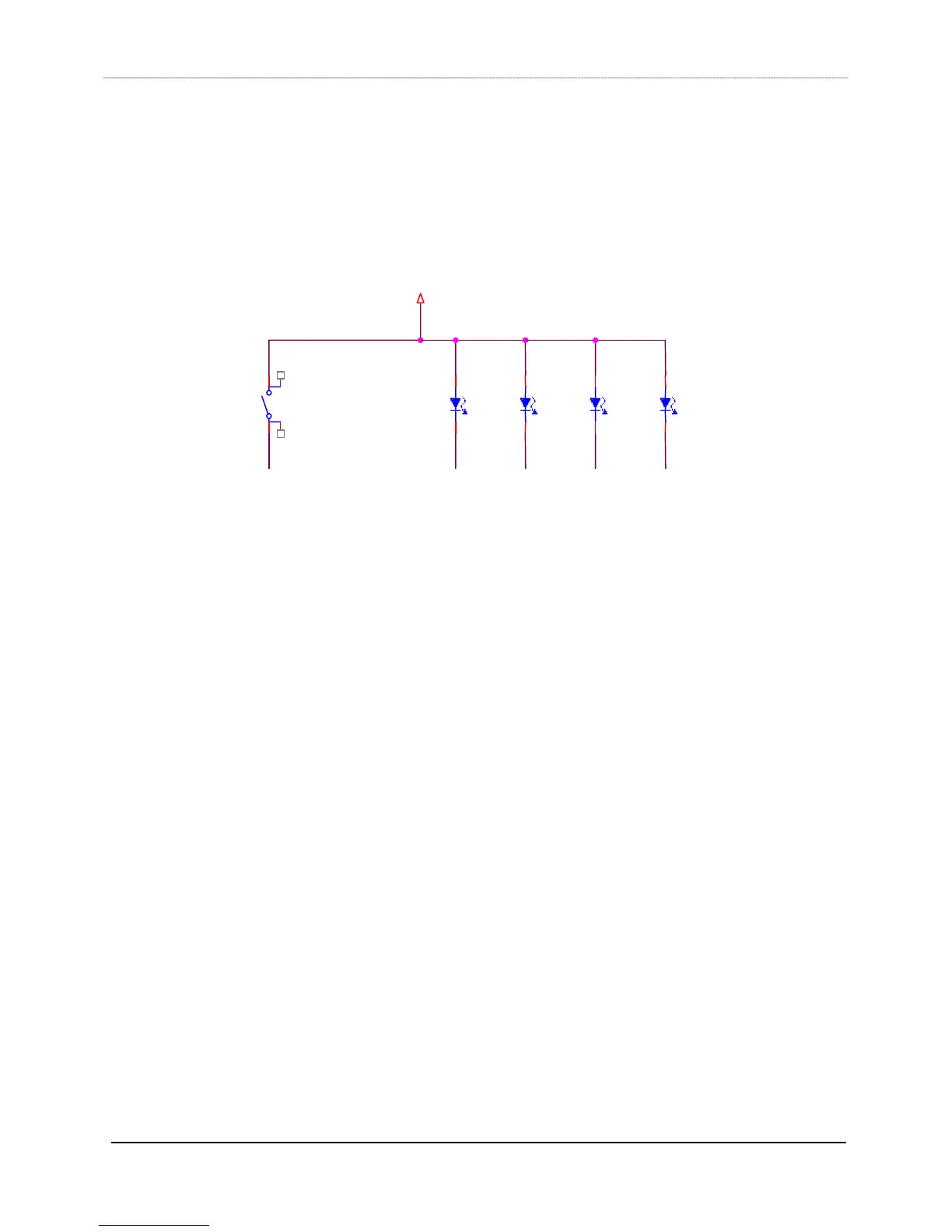

Pushing SW1A routes the Talkback signal to all four monitor outputs, and LED’s
D1-D4 indicate the Talkback ! Mon A-D status.
+5V
SW1A
2
3
1
4
D1
LED
D2
LED
D3
LED
D4
LED
PINS 3, 6, 9, 12, 13, 14, 17, 20, 23 (PICK ANY 4)
PIN 15
PIN 4
PIN 1
PINS 2, 16, 5, 19
PIN 18
