S5 Control Surface/Frame Manual Page 7 Version 1.0 ©1999 Euphonix, Inc.
FRAME SECTION
Physical Specifications

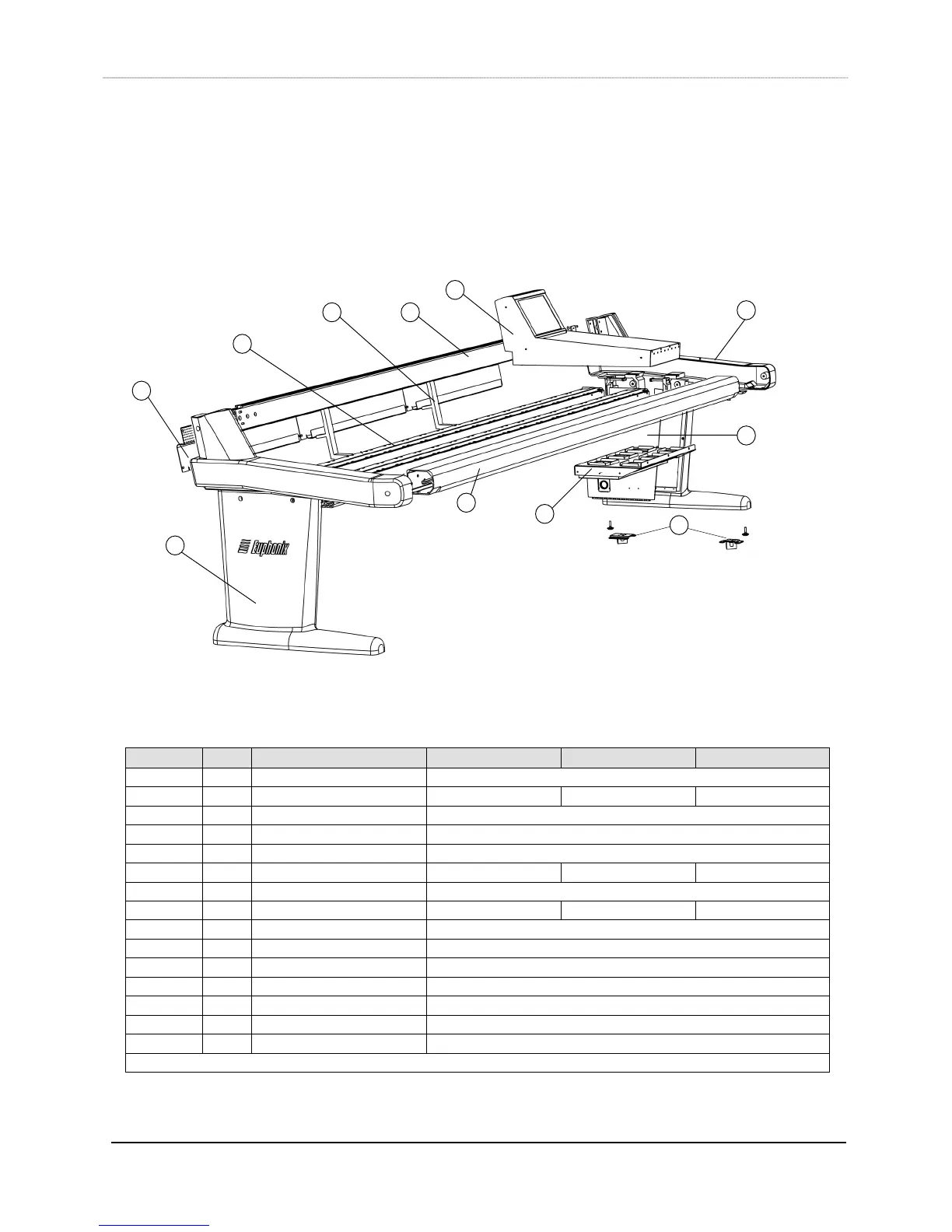

Exploded View
Item No. Qty Description Part No. 6ft Part No. 9ft Part No. 12ft
1 1 Leg, Right, Finished 726-06419-01
2 2 Box beam 726-06399-01 726-06437-01 726-07164-01
3 1 Leg, Left, Finished 726-06398-01
7 1 Palm beam 726-06415-01
10 4 Caster Brackets
13 1 Back beam-9 726-06408-01 726-06430-01 726-07163-01
15 2 Brace 1 726-06404-01
16 3 Cover, back, 3ft 726-06686-01 (1) 726-06686-01 (2) 726-06686-01 (3)
18 1 Leg panel Left – 726-06394-01 Right – 726-06826-01
19 1 Keyboard Tray Assy 726-06415-01
21 1 CM401 assembly 946-05718-01
21 * CM402 assembly 946-05719-01
21 * CM408 assembly 946-05717-01
21 * CM409F assembly 946-06651-01
21 * CM409H assembly 946-06650-01
* Qty depends on specified configuration
3
2
1
10
16
15 13
21
18
19
7
