Euphonix System 5 Control Surface/Frame - Side Panel View

S5 Control Surface/Frame Manual Page 8 Version 1.0 ©1999 Euphonix, Inc.

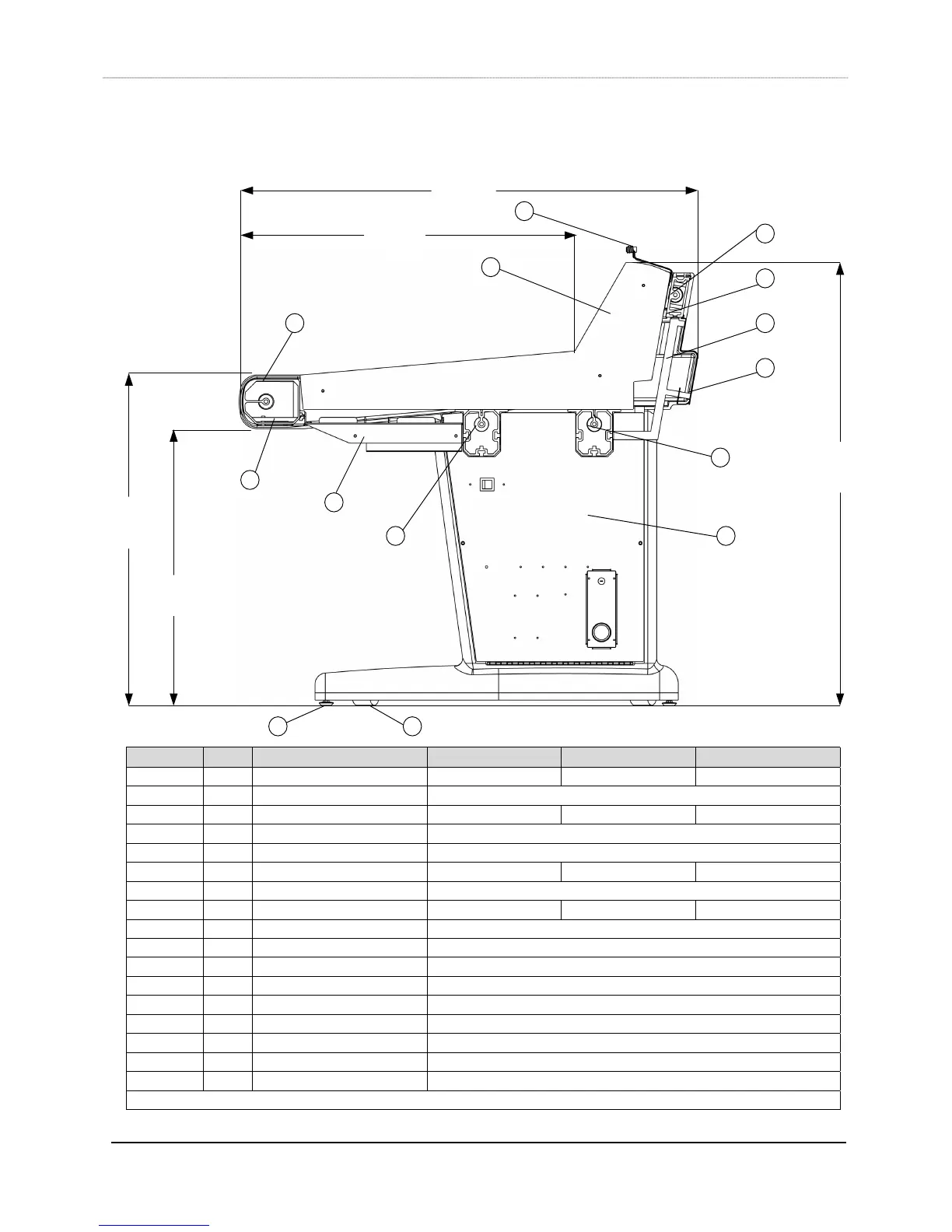

Side Panel View
Item No. Qty Description Part No. 6ft Part No. 9ft Part No. 12ft
2 2 Box Beam 726-06399-01 726-06437-01 726-07164-01
6 1 Plate, compression 726-06402-01
7 2 Palm Beam 726-0403-01 726-07168-01 726-07162-01
8 1 Plate, spread 726-06404-01
12 4 Caster 726-06407-01
13 1 Back beam 726-06408-01 726-06430-01 726-07163-01
15 2 Brace 726-06411-01
16 * Cover, back, 3ft 726-06686-01 (2) 726-06686-01 (3) 726-06686-01 (4)
18 2 Leg Panel 726-06394-01 (Left) 726-06826-01 (Right)
19 1 Keyboard Tray Assy 726-06415-01
21 1 CM401 assembly 946-05718-01
21 * CM402 assembly 946-05719-01
21 * CM408 assembly 946-05717-01
21 * CM409F assembly 946-06651-01
21 * CM409H assembly 946-06650-01
22 4 Foot, level 000-06434-00
27 1 Talk Back Mic 302-07044-00
* Qty depends on specified configuration
41”
30.5”
39.5”
29.5”
24.2”
16
2
2
15
13
7
8
27
21
19
22 12
18
6
