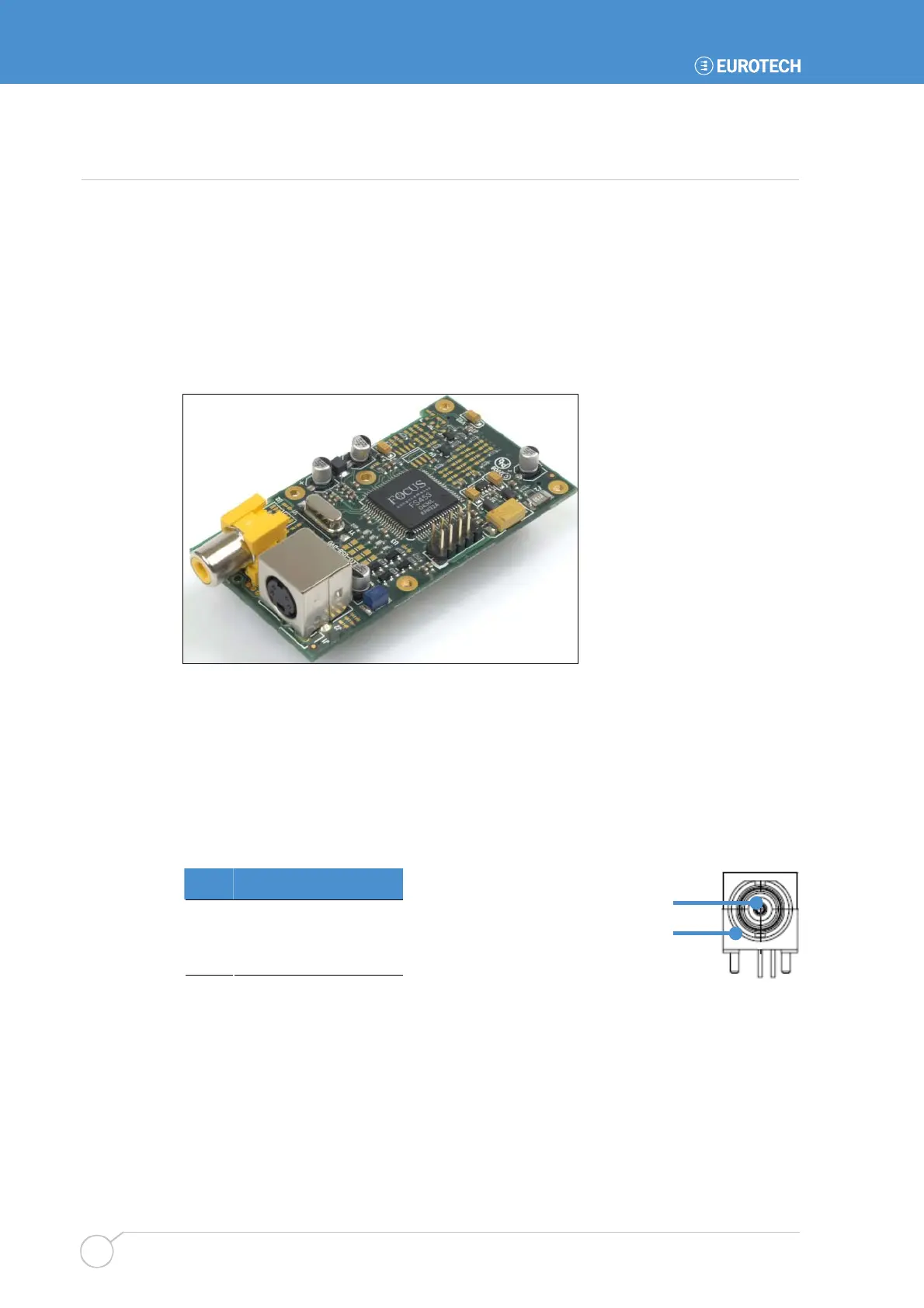

Appendix F – TV out video option board
The TV out video option board provides the ability to encode the DVO output for S-Video
and composite video outputs in a wide variety of broadcast quality NTSC and PAL video
output modes. Configuration of the video output mode is made using graphics options
from within the operating system graphics configuration, Windows XP, XP Embedded and
some Linux OS are supported.
The option board also provides the same USB functionality as the USB 5/6 breakout and
is mounted in the same location. The following connections refer to pinouts on the TV Out
board.
BIOS Setup
To enable the operation of the TV Out Video Option board the BIOS setup option IGD –
Boot Type in the Advanced Video (Intel IGD) Control Sub-Menu should be set to the
TV option.
J3 – Composite TV OUT
Connector: Kycon KLPX-0848A-2-Y
Pin Signal name
1
CVBS
2
VGND
1
2
