APOLLO user manual
Issue G
90
Detailed hardware description
This section provides a detailed description of the functions provided by the APOLLO.
This information may be required during development, once you have started adding
extra peripherals or are starting to use some of the embedded features.

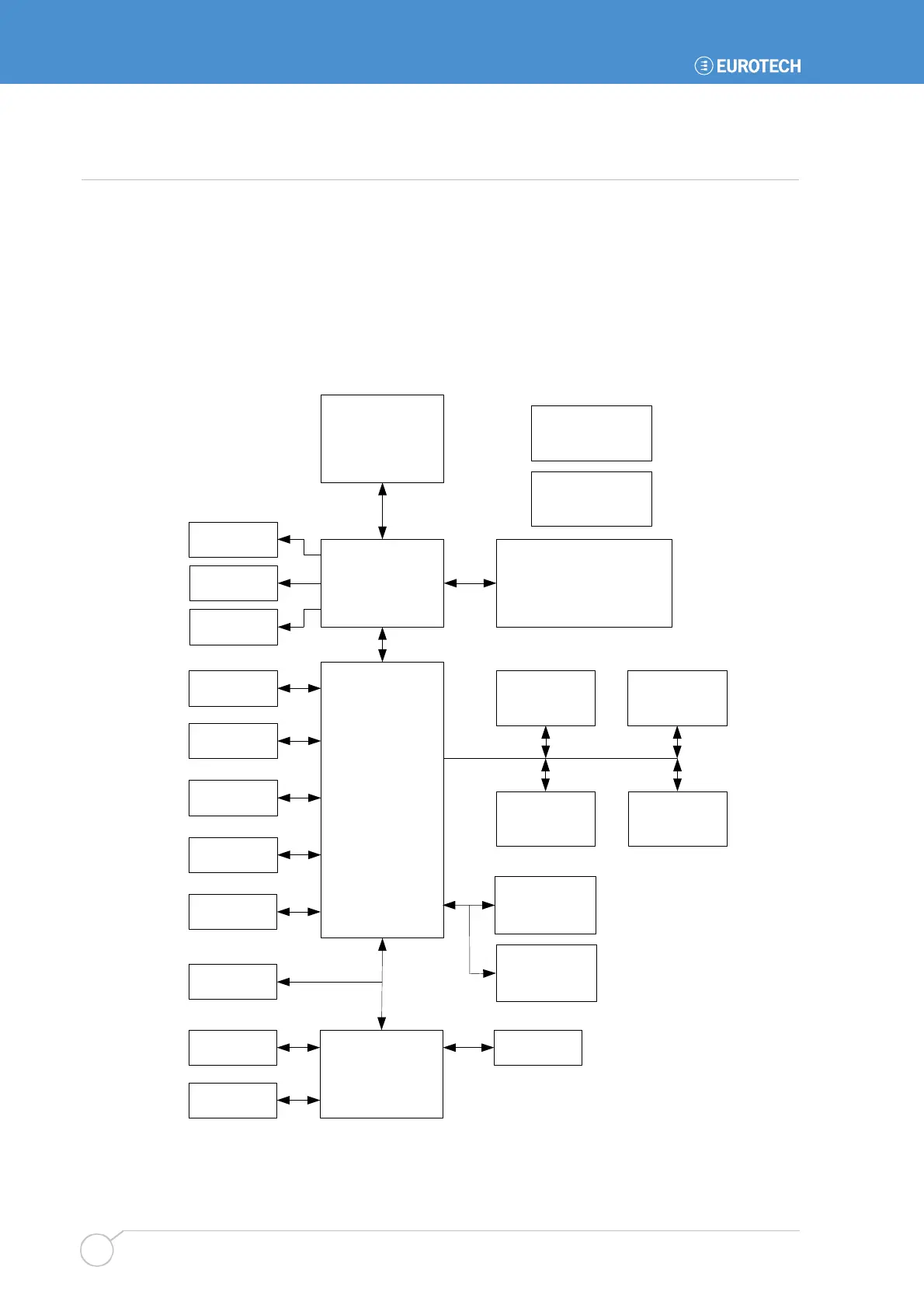

APOLLO block diagram
The diagram below illustrates the functional organization of the APOLLO:
Intel Pentium M
82855GME
Graphics and
Memory Controller
Hub
82801DB
I/O Controller Hub
(ICH4)
VGA
LVDS
IDE Devices
USB
AC ’97 2.2
CODEC
FWH BIOS
Unbuffered
DDR SDRAM
DIMM Socket
ECC or Non ECC
LPC Super I/O
IEEE802.3
10/100 NIC
Keyboard, Mouse, Floppy
Drive Controller, Parallel
Port, 2 UARTs and
Infrared Port
Hardware Monitor
Power Supplies
Clock Generator
PCI Slot
IEE802.3
10/100 NIC
FAN Control
Temperature
Sensing
Voltage
Monitoring
Dual IEEE1394
CardBus
PCI Bus
SMBus
LPC
Bus
400MHz
Processor Side Bus
Option Board
PCI Dual
UART
Front Panel
Connector
TPM (Optional)
TCPA Security Device
