Appendix G – VGA option board
Issue G 141

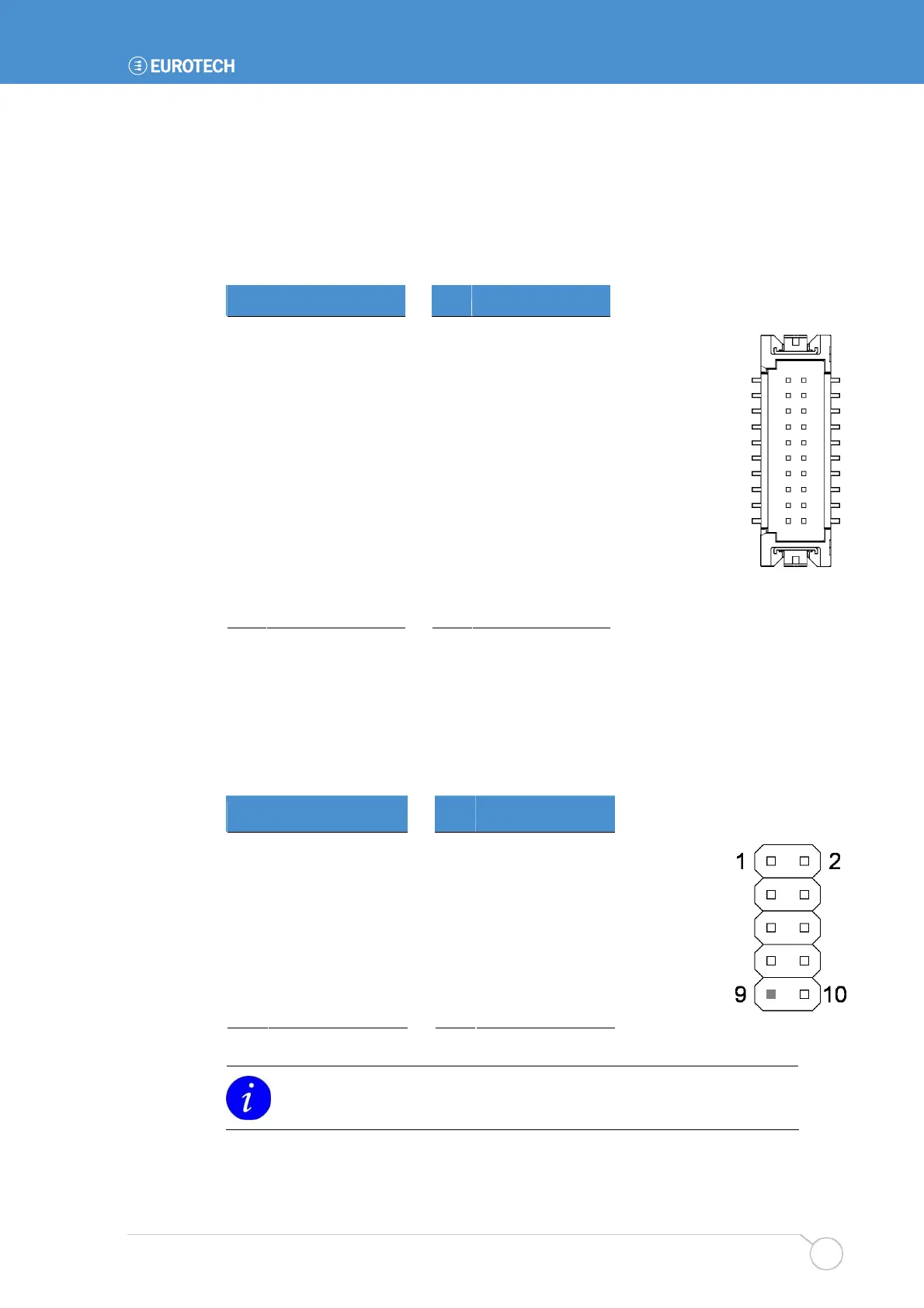

J2 – LVDS input interface (single channel)
20-way 2mm Hirose DF13-20DP-1.25V.
Mating connector: Hirose DF13-20DS-1.25C
Crimps: Hirose: DF13-2630SCFA
Pin Signal name Pin Signal name
1 +3.3V 2 +3.3V
3 GND 4 GND
5 LVDS_D0- 6 LVDS_D0+
7 GND 8 LVDS_D1-
9 LVDS_D1+ 10 GND
11 LVDS_D2- 12 LVDS_D2+
13 GND 14 LVDS_CLK-
15 LVDS_CLK+ 16 GND
17 DDC_CLK 18 DDC_DATA
19 GND 20 GND
J4 – USB ports 5 and 6
10-way, 2.54mm (0.1") x 2.54mm (0.1") dual row header.
Mating connector: Harwin M20-1070500
Mating connector crimps: Harwin M20-1180022
Pin Signal name Pin Signal name
1 VBUS (port 5) 2 VBUS (port 6)
3 D- (port 5) 4 D- (port 6)
5 D+ (port 5) 6 D+ (port 6)
7 Ground 8 Ground
9 Key (no pin) 10 Ground
For error free data transmission, cable certified for USB 2.0 operation
should be used.
2 1
20 19
