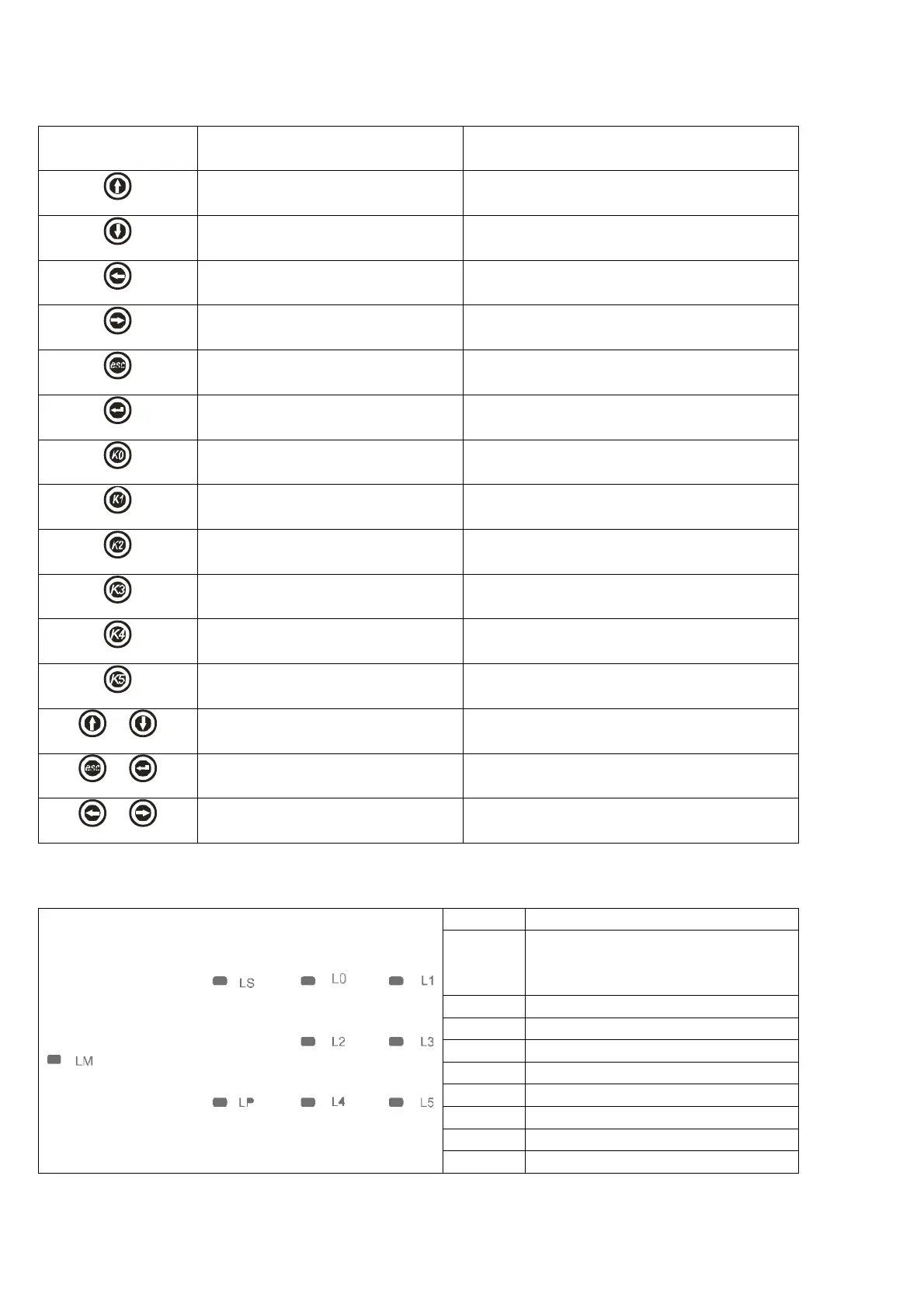

The following table summarizes the keyboard button meaning:
BUTTONS MAIN FUNCTION SECONDARY FUNCTION
Predefined as UP
Predefined as DOWN
Predefined as LEFT
Predefined as RIGHT
Predefined as ESC Stand-By command
Predefined as ENTER 1° programming level command
Programmable Alarm reset / identification
Programmable
Programmable
Programmable
Programmable
Programmable
+
Controller configuration parameters
command
+
2° programming level command
+
3° programming level command
The following table summarizes the meaning of the LEDs on front panel :
LED FUNCTION
LM
Predefined (blinking during the
parameters configuration of the
controller)
LS Programmable
LP Programmable
L0 Programmable
L1 Programmable
L2 Programmable
L3 Programmable
L4 Programmable
L5 Programmable
