C-PRO NANO HARDWARE MANUAL
Page 27

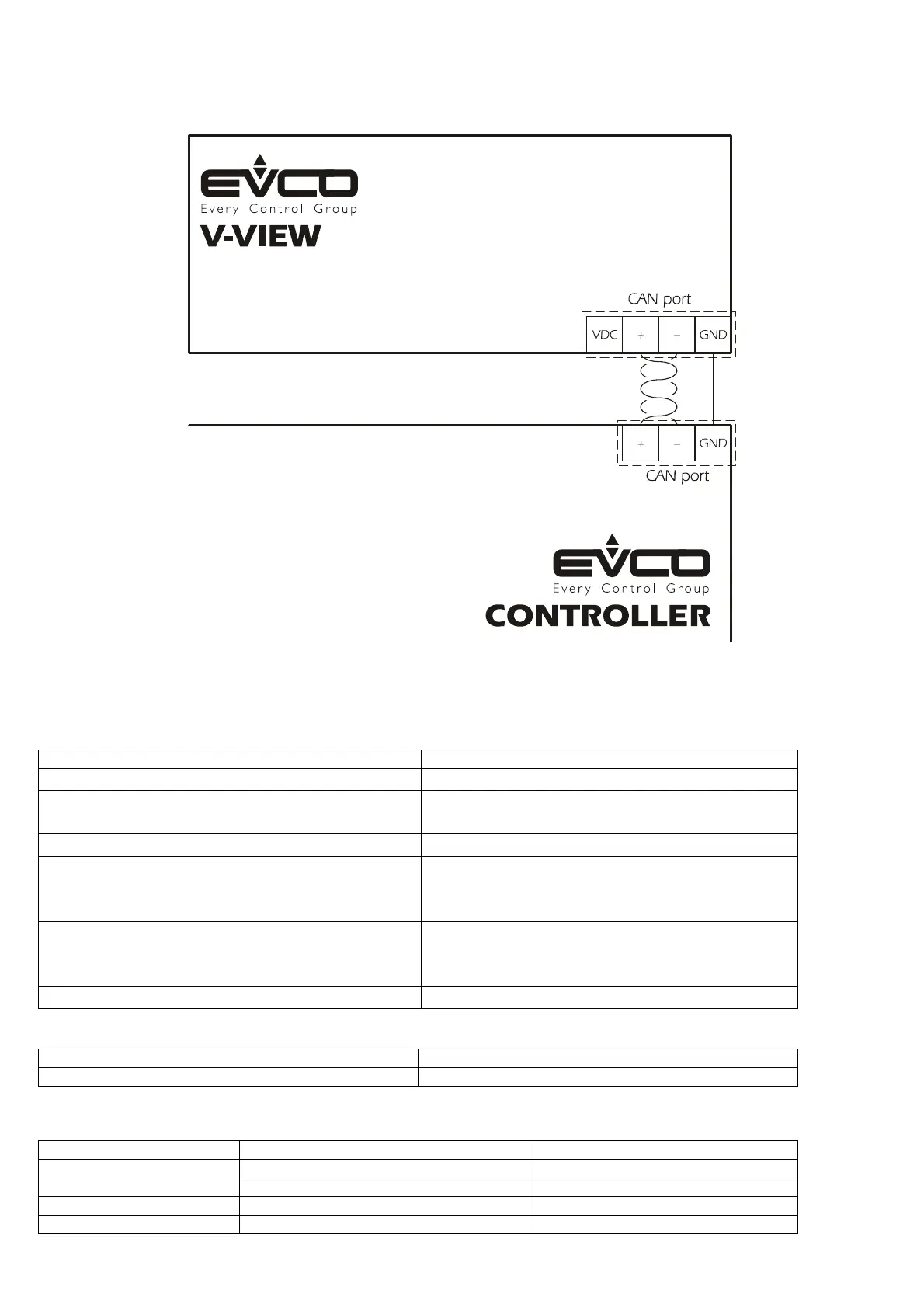

6.2.1.2 V-VIEW wiring layout
6.2.1.3 V-VIEW specifications
General specifications
Safety standards references EN 60730-1
Purpose of the device To be integrated in equipment
Electronic control device connections Plug-in terminal block 5mm pitch
for conductors up to 2.5 mm
2
Storage temperature limits -20T70 °C (@RH<90% non-condensing)
Ambuent temperature limits -10T60 °C
0T50 °C for version with integrated LCD
(@RH<90% non-condensing)
Electrical shock protection classification
An integrated control device takes up the
classification of the equipment which it is
integrated with
PTI of insulation materials used >250
Housing
Installation Pannel mounting
Housing 160 x 160 mm
Electrical specifications
Power supply Main (input) 12Vdc, 0.2A
Microprocessor 16 bit CPU
Oscillator frequency 16 MHz
EEPROM Memory for parameters 256 byte
Number 1
