Evident DP75 - External Triggering Function

DP75 can acquire still images and control a commercially available shutter with external triggering signals.

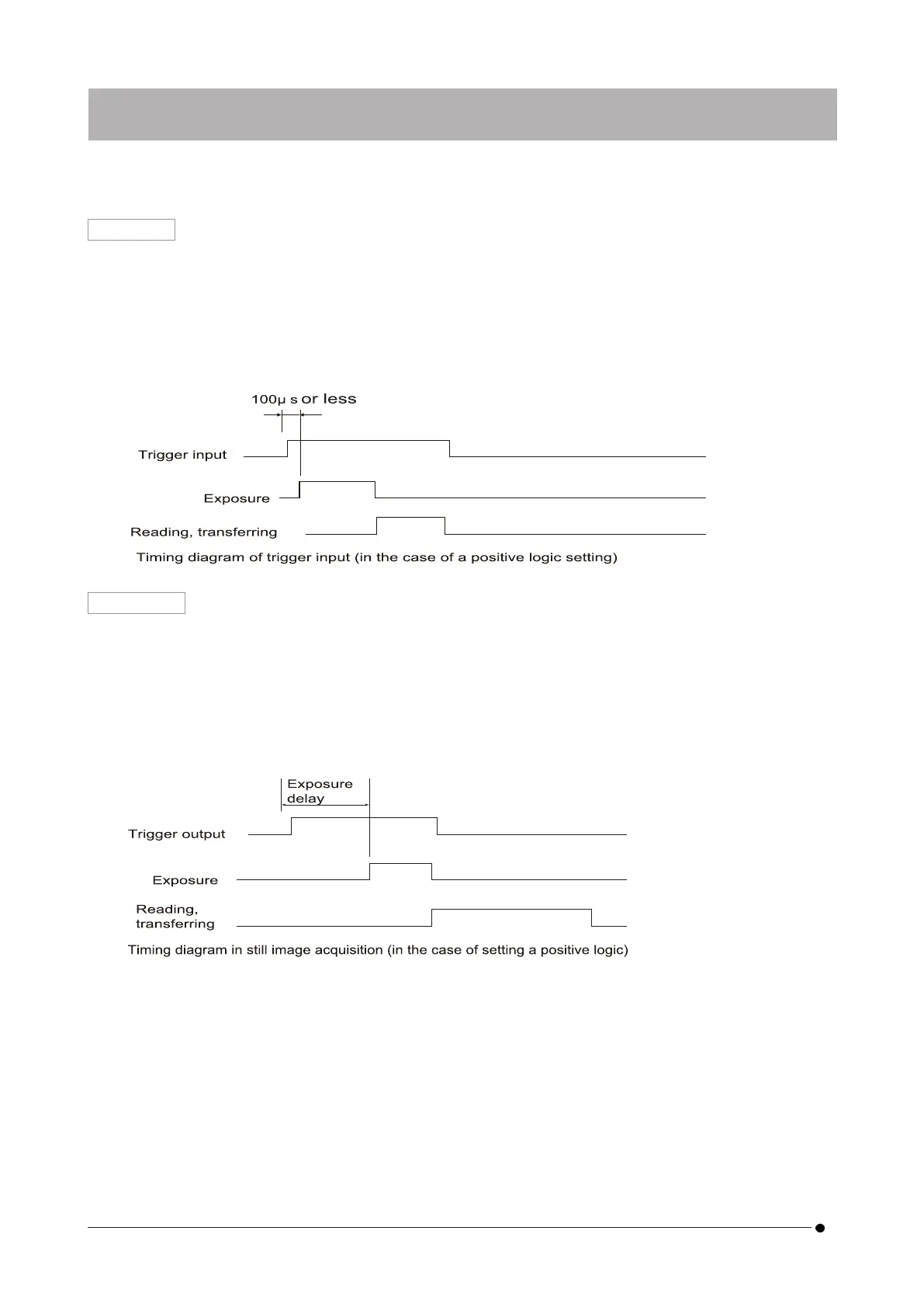

Trigger input
By inputting a trigger signal from an external device, a still image can be captured with cellSens/PRECiV.
When an edge signal is detected, images are captured with a pre-set exposure time. CellSens/PRECiV can be used
to switch the signal between positive and negative logics.
Exposure starts within 100 μs after trigger input.
The trigger input signal is TTL compatible.
V
IH
: 2.0V (minimum) V
IL
: 0.8V (maximum)
Trigger output
Outputting a trigger signal from cellSens/PRECiV can control the opening/closing of a commercially available
shutter.
The trigger signal is output in conjunction with the image acquisition of cellSens/PRECiV. Using cellSens/PRECiV,
you can switch the signal between positive and negative logics, and set the exposure delay time (0 to 2 seconds)
between outputting a trigger signal and starting exposure.
The trigger output signal is TTL compatible.
V
OH
: 2.4V (minimum) V
OL
: 0.4V (maximum)
