STERN BRACKET – POWER TILT MODELS
12
STERN BRACKET –
Power Tilt Models

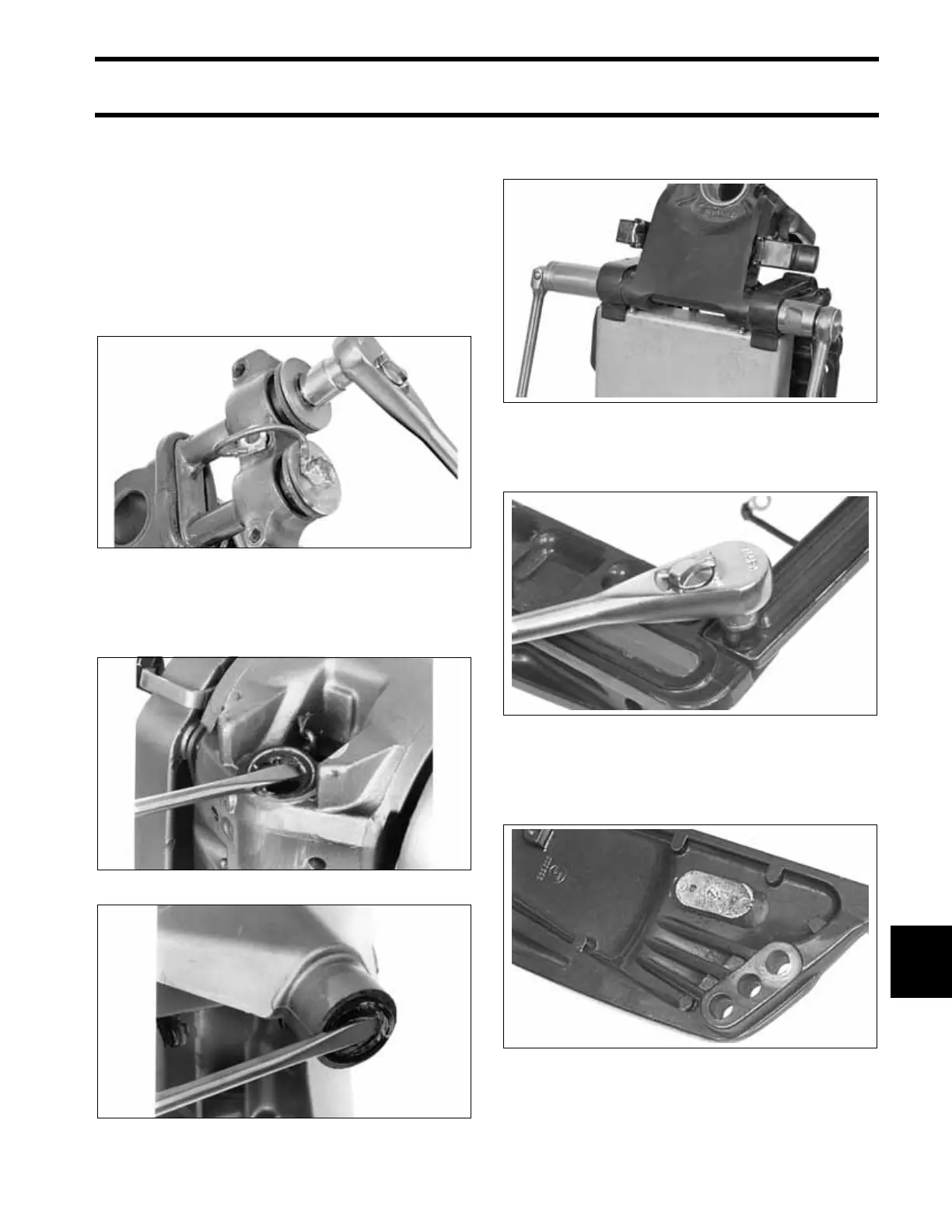

Stern Bracket Disassembly
(Power Tilt)
Remove the bumpers from the upper mount
retaining screws. Remove the screws, upper
mount, and ground lead from the bracket.
Pull the steering arm out of the swivel bracket.
Use an appropriate tool to pry the upper and lower
seals from the swivel bracket.
To separate the swivel bracket from the stern
bracket, remove one tilt tube nut.
Remove the tie bar to separate the two stern
brackets.
Check the condition of the anode. Replace the
anode if it has been reduced to two-thirds its origi-
nal size.
