TRIM AND TILT
SERVICING
14

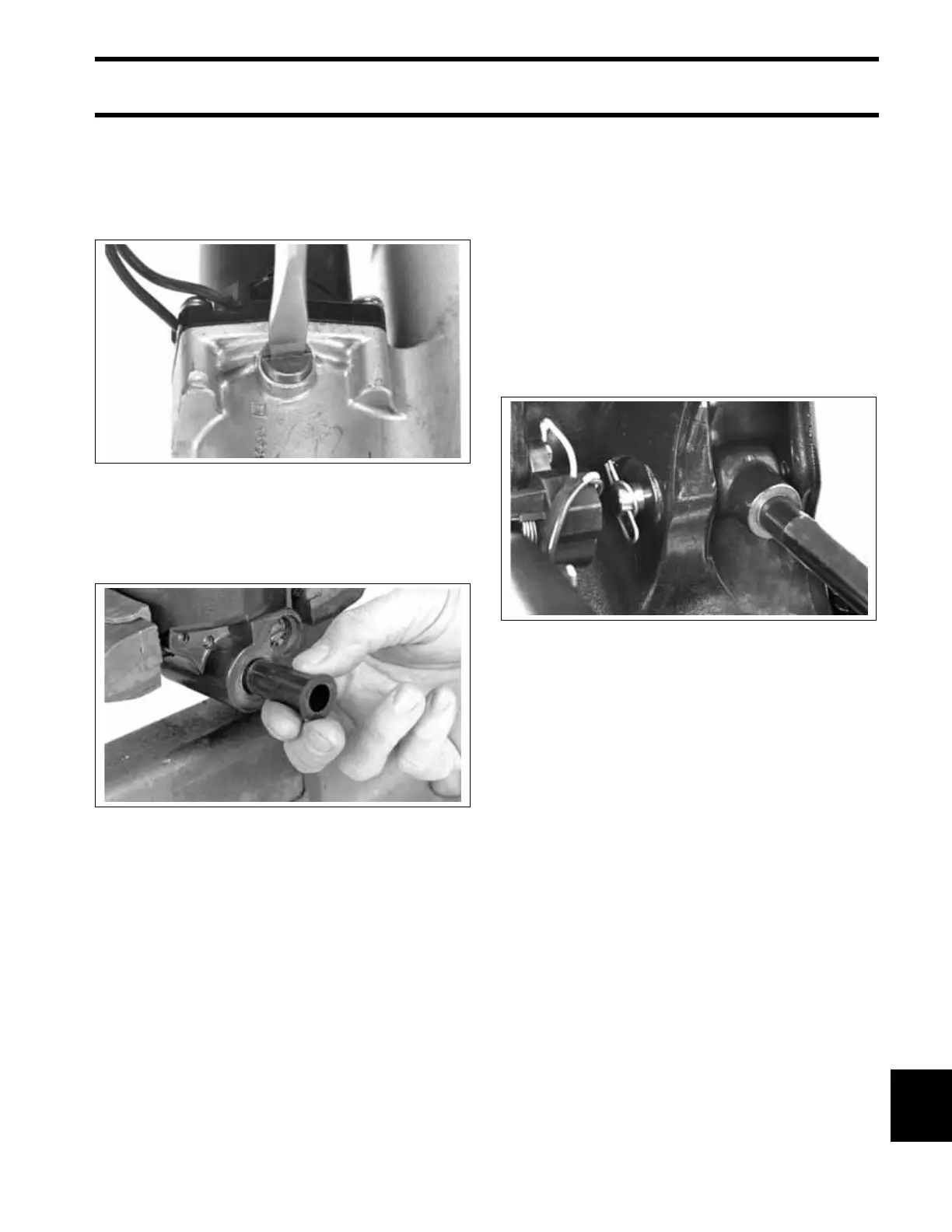

Run the motor, then recheck oil level. Cycle the
unit several times and check the oil level when the
cylinder is fully extended. Oil should be level with
bottom of fill port. Install and tighten the fill plug to
a torque of 45 to 55 in. lbs. (5 to 6 N·m).
Installation
Lubricate the cylinder and thrust rod bushings with
Triple-Guard grease. Install the bushings.
Install the ground lead. Position the hydraulic unit
between the stern brackets.
Lubricate the angle adjustment rod with Triple-
Guard grease. Install the rod. Tighten the locknuts
to a torque of 20 to 25 ft. lbs. (27 to 34 N·m).
Connect the pump motor wires.
Lubricate the cylinder pin with Triple-Guard
grease. Align the cylinder into the swivel bracket.
Install the cylinder pin.
Secure the cylinder pin with cotter clip.
33701
15591
15493
