Evinrude E-TEC E60DPLSCB - To Adjust the Throttle Cable

270
MIDSECTION
TILLER HANDLE SERVICE – LONG HANDLE
Throttle Cable Adjustment
Place throttle cable in position. Use Ball Socket
Installer tool, P/N 342225, to snap throttle cable
connector onto throttle lever.
Place throttle cable in upper anchor pocket. Install
cable retainer on anchor block.
Hold twist grip in full SLOW position. Pull firmly on
cable to remove backlash.
Adjust cable anchor so throttle cam is against idle
stop when anchor screw aligns with throttle body
boss. Then, rotate anchor four turns toward the
end of the cable.
Install washer, cable anchor, and cable anchor
screw on throttle body boss. Tighten screw
securely.
IMPORTANT: Rotate twist grip. Make sure
throttle cam goes to full throttle without bending
cable, and still returns to IDLE stop.

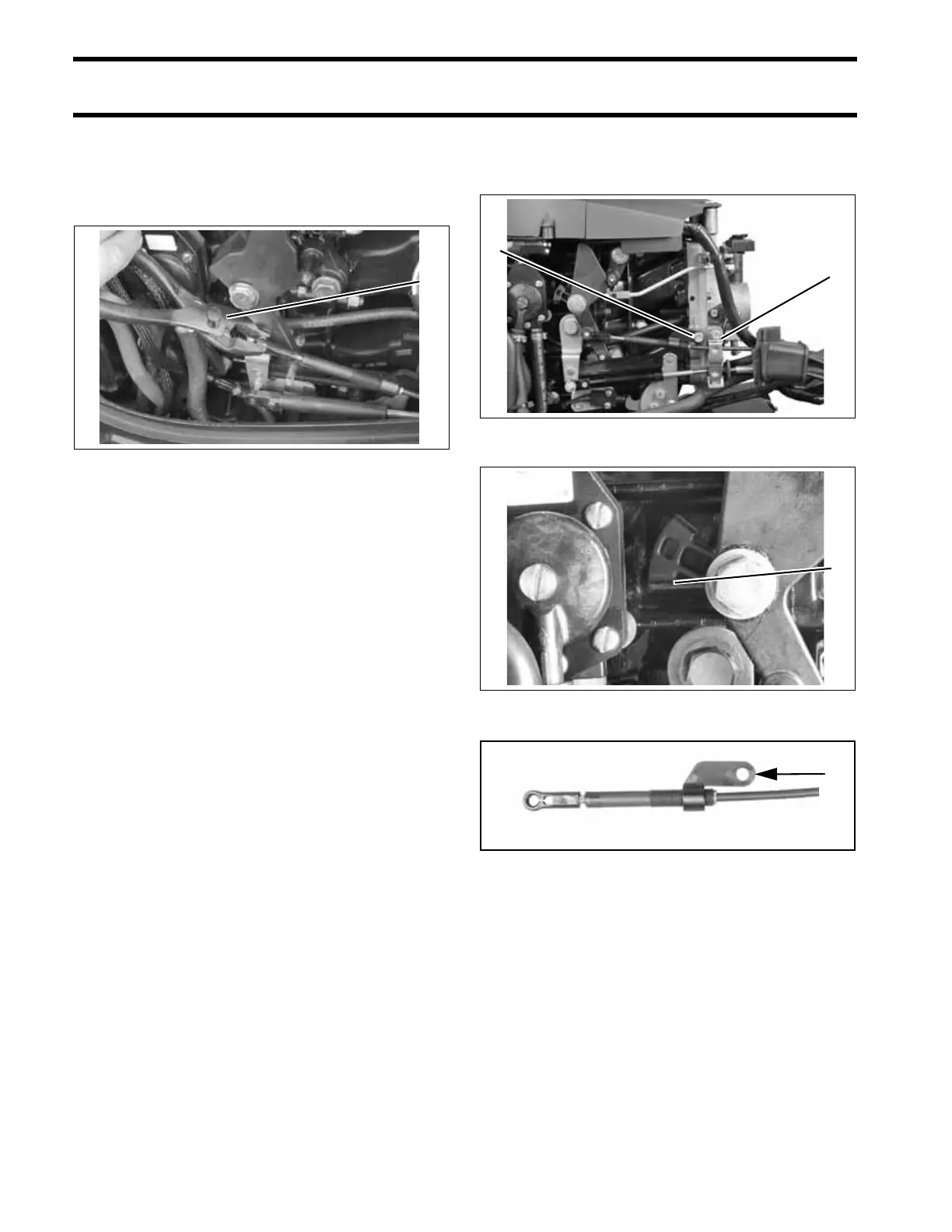

1. Installer tool 005106
1
1. Cable anchor screw and washer
2. Cable retainer
006745
1. Throttle lever stop 005114
1. Turn anchor four turns toward cable end. 006564
