MIDSECTION

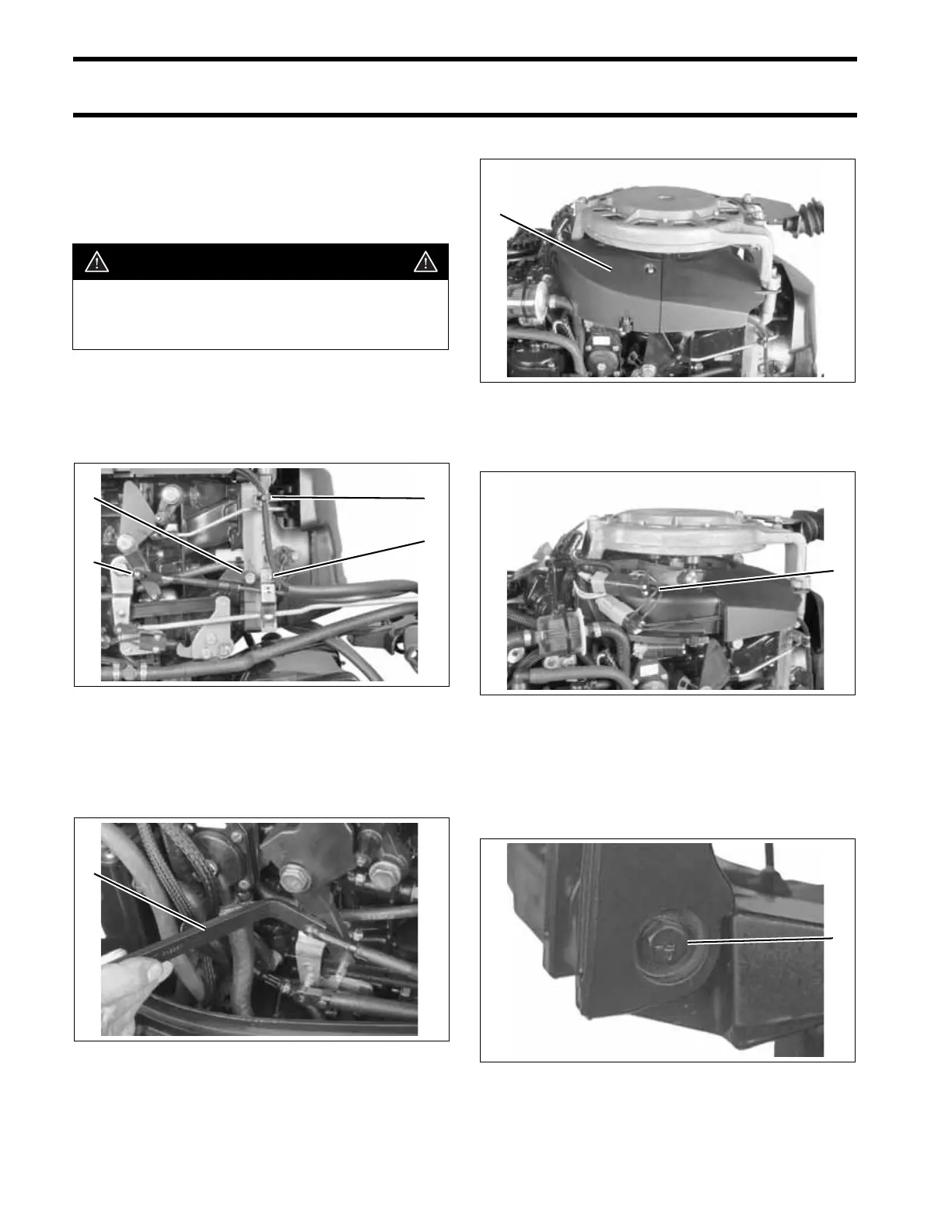

TILLER HANDLE SERVICE – STANDARD
TILLER HANDLE
SERVICE – Standard
Removal
Remove the throttle cable anchor screw and
washer. Loosen throttle cable retainer screw. And,
remove the tie strap holding the tiller handle elec-
trical harness.
Use Remover tool, P/N 342226, to unsnap the
throttle cable clip from the throttle lever.
Remove the electrical cover.
Disconnect the electrical harness coming from the
tiller handle.
Remove throttle cable and wires from grommet in
lower engine cover.
Remove the screw attaching steering handle.
Remove handle.
WARNING
To avoid accidental starting of engine
while servicing, twist and remove all spark
plug leads.
1. Cable anchor screw and washer
2. Cable retainer screw
3. Clip
4. Tie strap
002207
1. Remover tool 005121
4
2
1
3
1
1. Electrical cover 002509
1. Electrical harness connector 002511
1. Screw 31194
1
1
1
