Evolution Digital HD uDTA - Code Download; Table 21 Code Download Screen Parameters; Figure 38 Diagnostic Menu - Code Objects

Evolution Digital
EVO-SUP-DMS2002HD-U-001-v1r0 Page 63
stored in each Bank persist across resets of the device. Figure 38 shows an example of the Code Objects screen as
presented on the DTA.

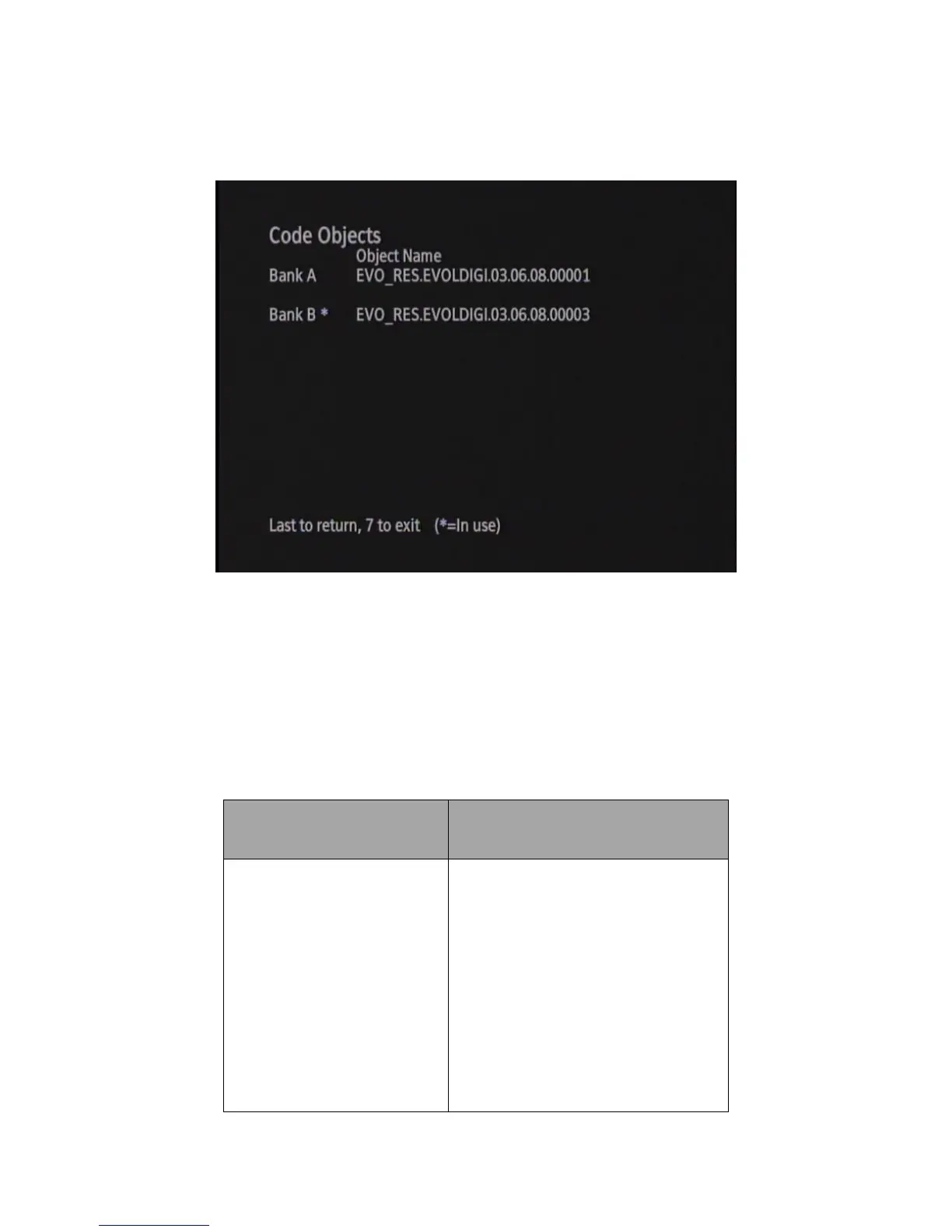

Figure 38 Diagnostic Menu – Code Objects
6.11 Code Download
The Code Download screen displays the state of the code download. Table 21 defines the parameters displayed in
the Code Download screen.
Table 21 Code Download Screen Parameters
Parameter
Description
Download Status
Indicates current download status of the
DTA. Valid values are:
• Not Attempted
• Cannot Locate DSM-CC PID
• Cannot Locate Code Image
• File Download Failure
• Not Enough Memory
• Code Verification Failure
