Evolution Digital HD uDTA - Figure 2 DTA Status, Hunt Mode

Evolution Digital
EVO-SUP-DMS2002HD-U-001-v1r0 Page 15
A/V Decode
None
Diagnostics
Available
IR Input
Available
In-band Message
Processing
Only processing CAT PID.

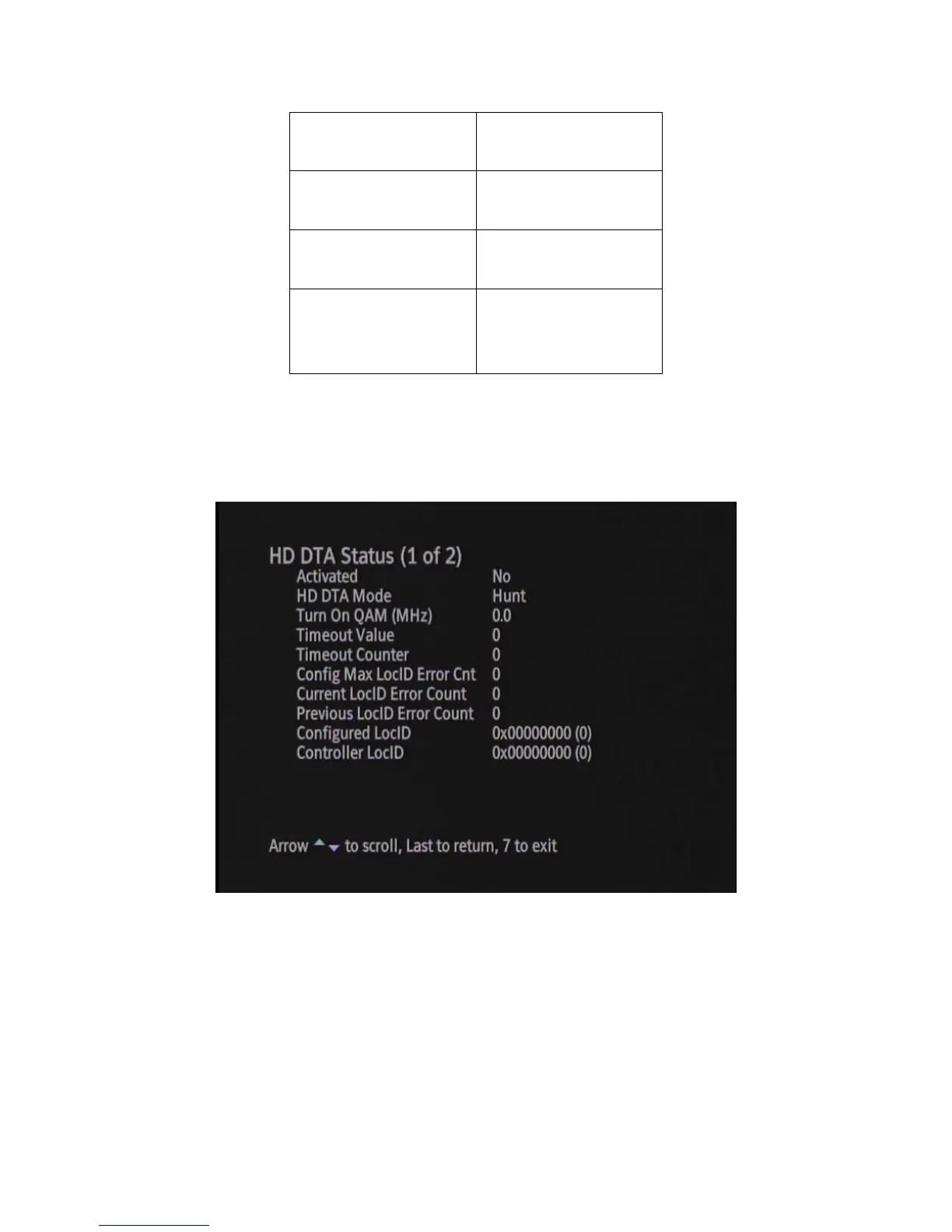

Figure 2 shows the DTA Status diagnostic screen while the DTA is in Hunt Mode.
Please note the DTA should not be sent an activation and or configuration message while in Hunt Mode. These
messages should only be sent when the DTA is in Pending Initialization Mode.
Figure 2 DTA Status, Hunt Mode
Figure 3 shows the Tuner Status diagnostic screen while the DTA is in Hunt Mode.
