Evolution Digital HD uDTA - Figure 18 Code Download Failure - Code Verification Failure; Figure 19 Code Download Failure - File Download Failure

Evolution Digital
EVO-SUP-DMS2002HD-U-001-v1r0 Page 35

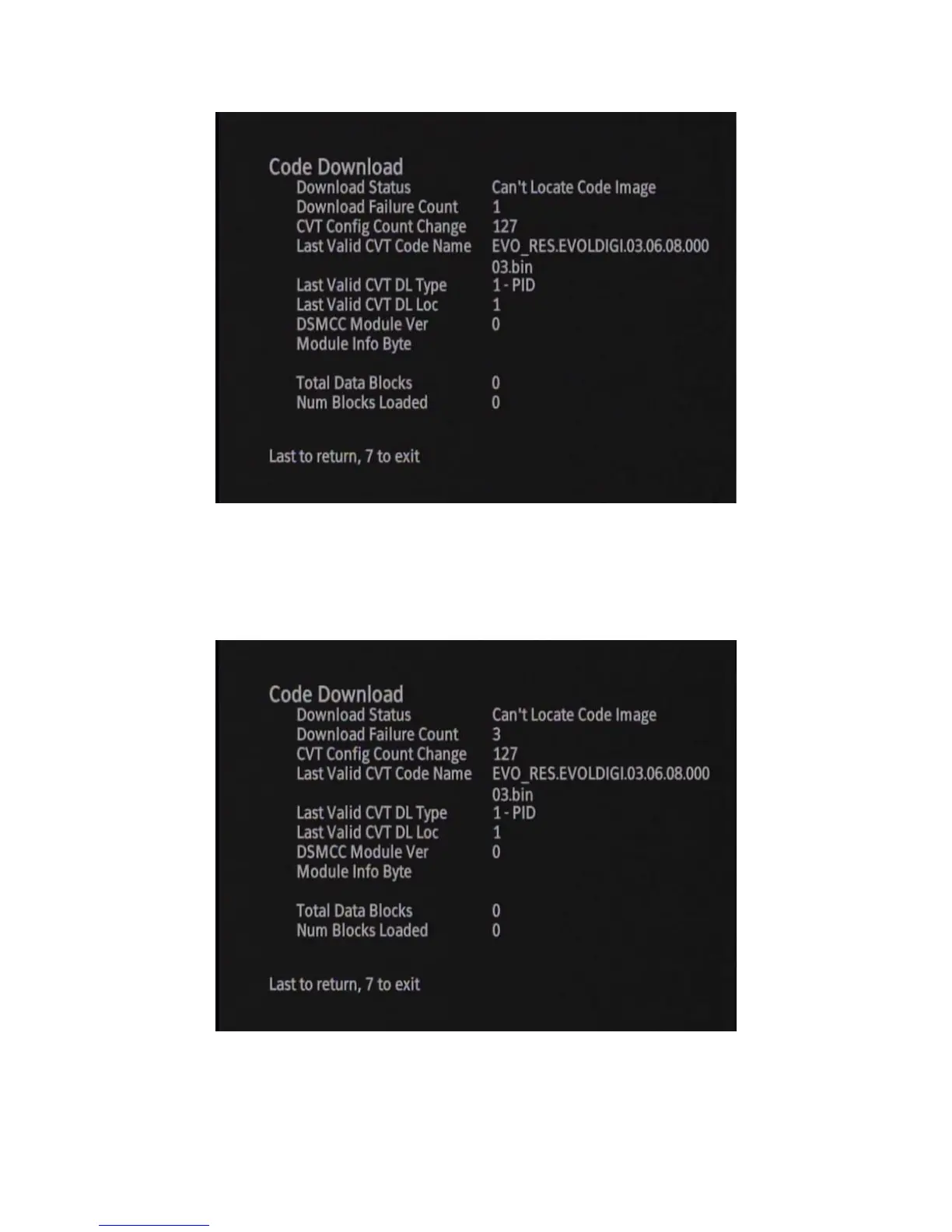

Figure 18 Code Download Failure – Code Verification Failure
In Figure 19, the failure is due to file download failure. Note that the DTA failed to download the code three times.
This is shown by the Download Failure Count equaling three (3).
Figure 19 Code Download Failure – File Download Failure
Please see Section 6.11 for more information on all possible Download Status messages.
