Evolution Digital HD uDTA - Hdmi; Figure 39 Diagnostic Menu - Code Download

Evolution Digital
EVO-SUP-DMS2002HD-U-001-v1r0 Page 65
on the DSMCC.
Module Info Byte
The code module name listed in the DII
on the DSMCC that is downloaded.
Total Data Blocks
Indicates the total number of blocks to
download for the currently available code
version. Decimal value.
Num Blocks Loaded
Indicates the number of blocks that have
been downloaded and loaded into
memory. Decimal value.

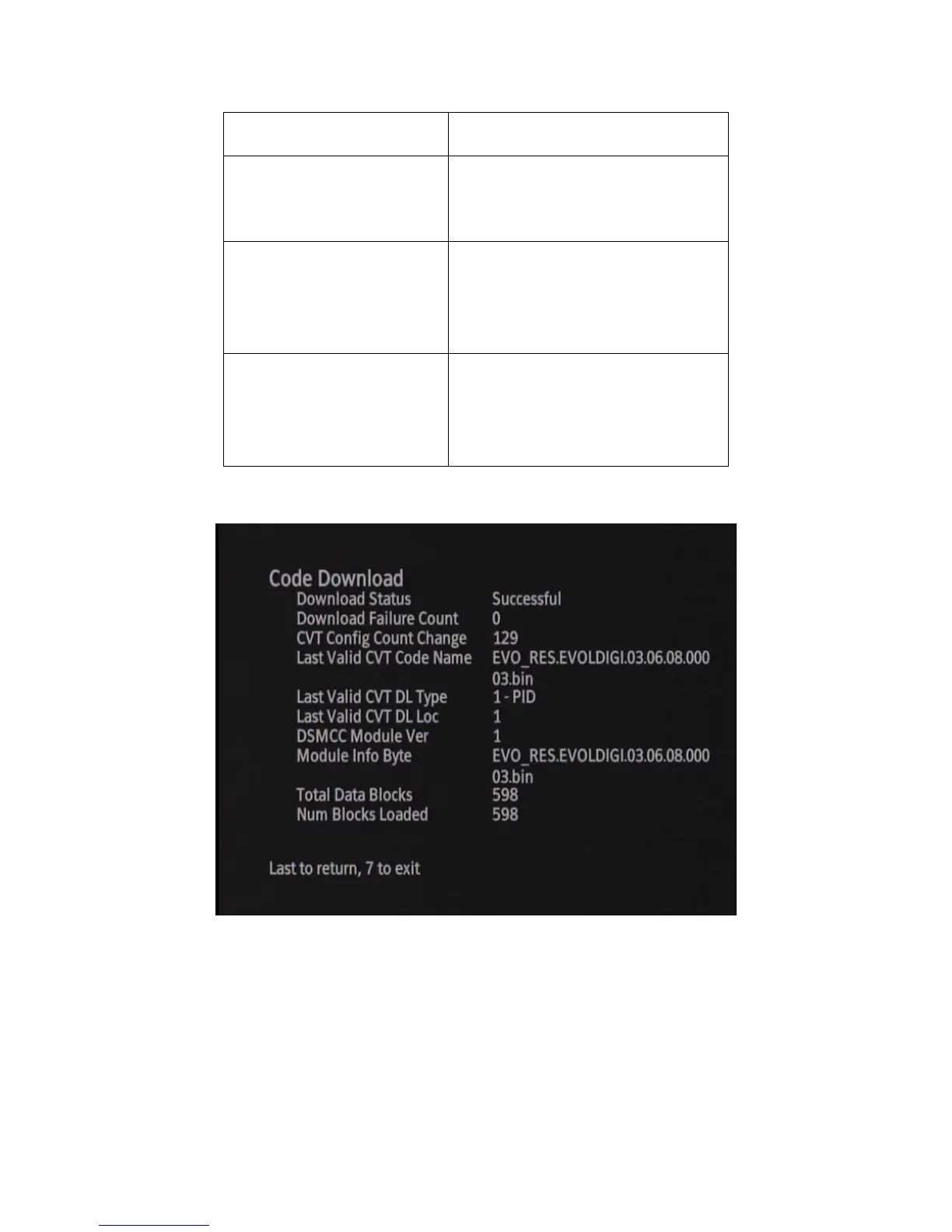

Figure 39 shows an example of the Code Download screen as presented on the DTA.
Figure 39 Diagnostic Menu – Code Download
6.12 HDMI
The HDMI screen gives information about the currently used HDMI output format as well as the EDID data
reported by the TV (if applicable). Table 22 defines the parameters displayed in the HDMI screen.
