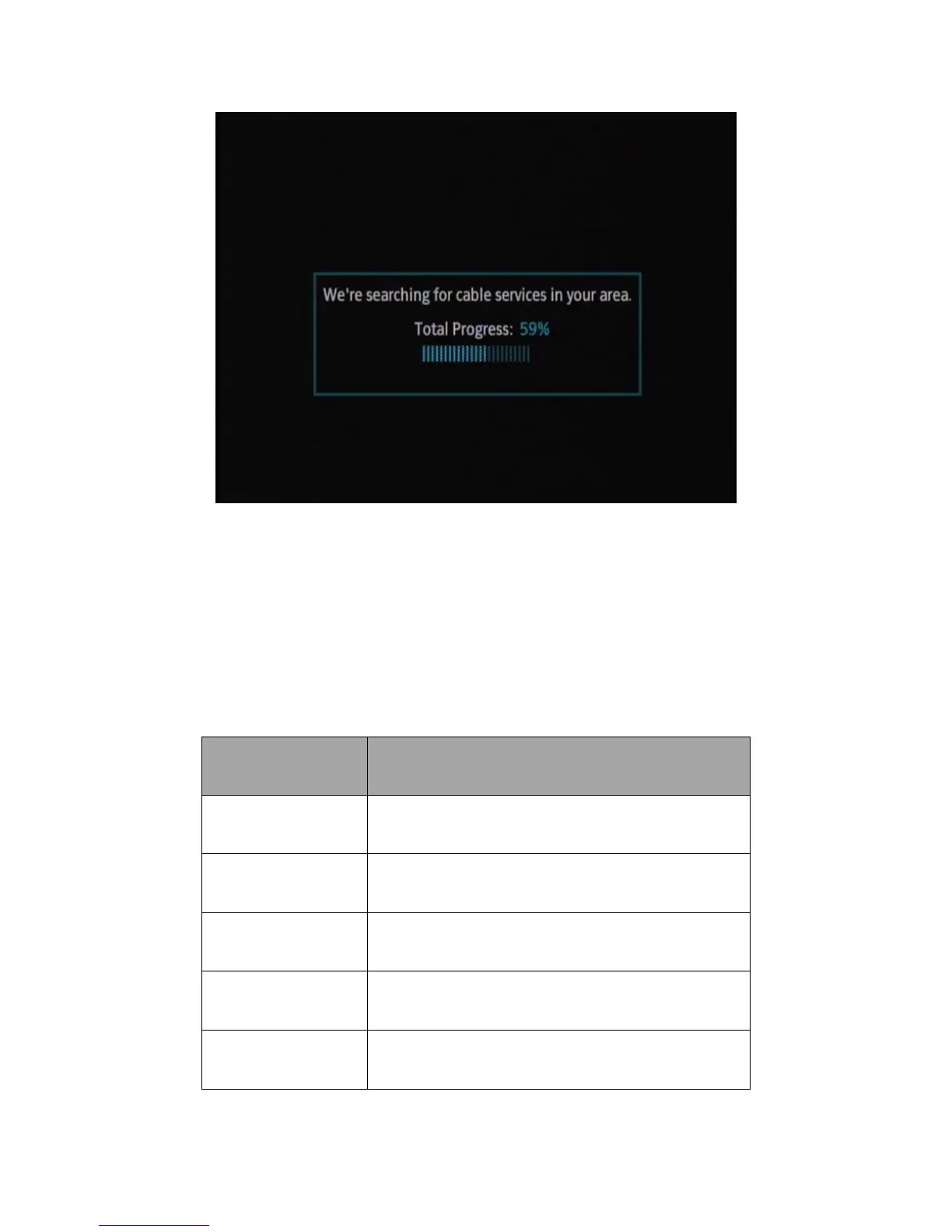

Figure 5 Hunt Mode On-Screen Message – Initial Scan
This message is displayed while the DTA performs its initial hunt for QAM lock and CAT with CA system ID
detection. The progress bar is shown on-screen for the duration of two full iterations through the predefined
frequency list detailed in Appendix A Frequency Hunt List. Table 4 shows how the percentage values line up with
the frequency list.
Table 4 Hunt Mode Progress Bar Percentages
Percentage Complete
Frequency List scanned
0%
Scan started
25%
First iteration through frequency list, half-way through
50%
First iteration through frequency list completed
75%
Second iteration through frequency list, half-way through
100%
Second iteration through frequency list completed
