While in Code Download Mode, the DTA may transition to Boot Mode only if the DTA successfully downloaded a
new image and then return to the previous mode of operation. If the DTA fails to download the code, the DTA will

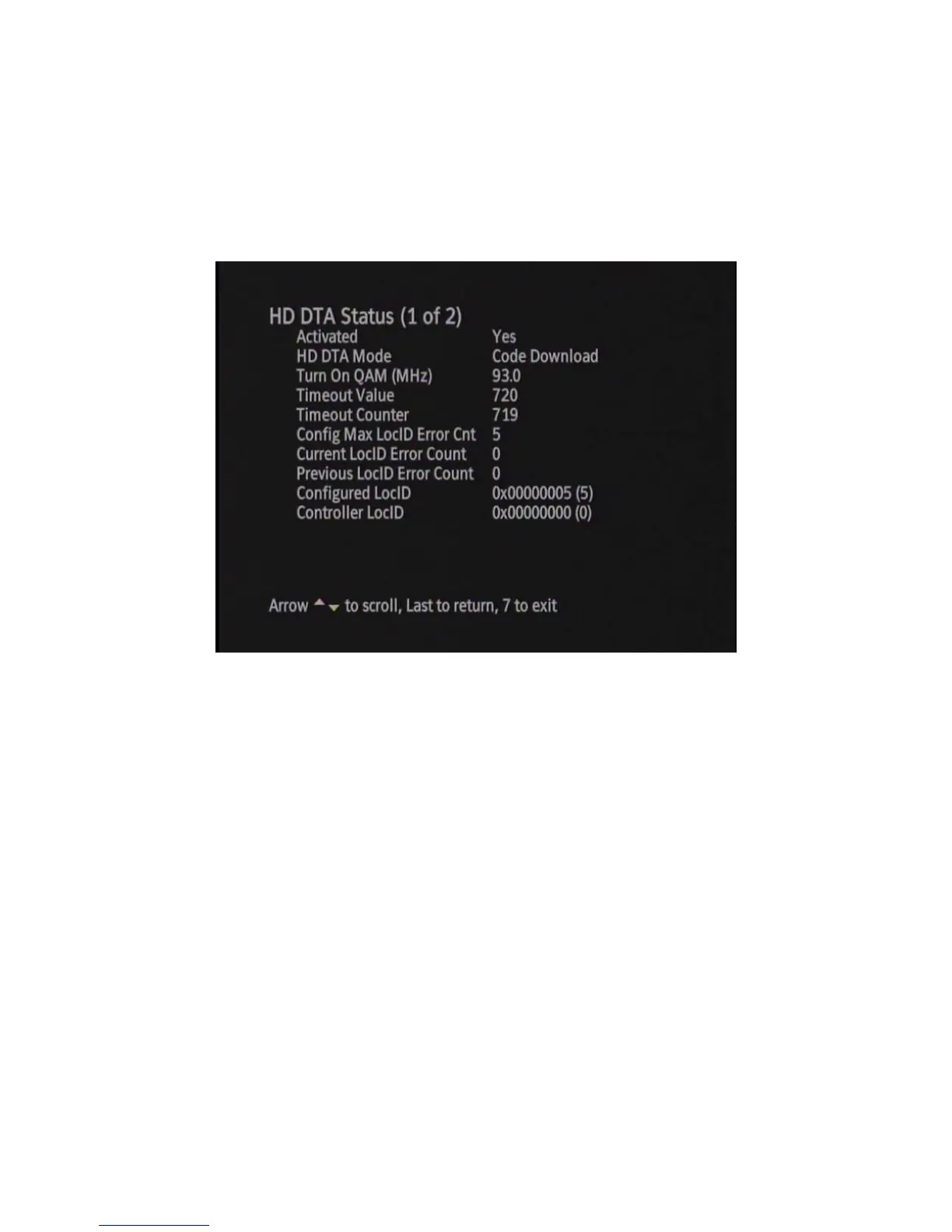

return to its previous mode of operation. Figure 15 shows the DTA Status diagnostic screen when the DTA has
entered Code Download Mode. Please note that the values shown in Figure 15 may not match those in your DTA
and is used only as an illustration for the DTA Status screen.
Figure 15 DTA Status Diagnostic Screen During Code Download
Figure 16 shows the Code Download Diagnostic screen in the DTA.
