EVS XT-3 User Manual

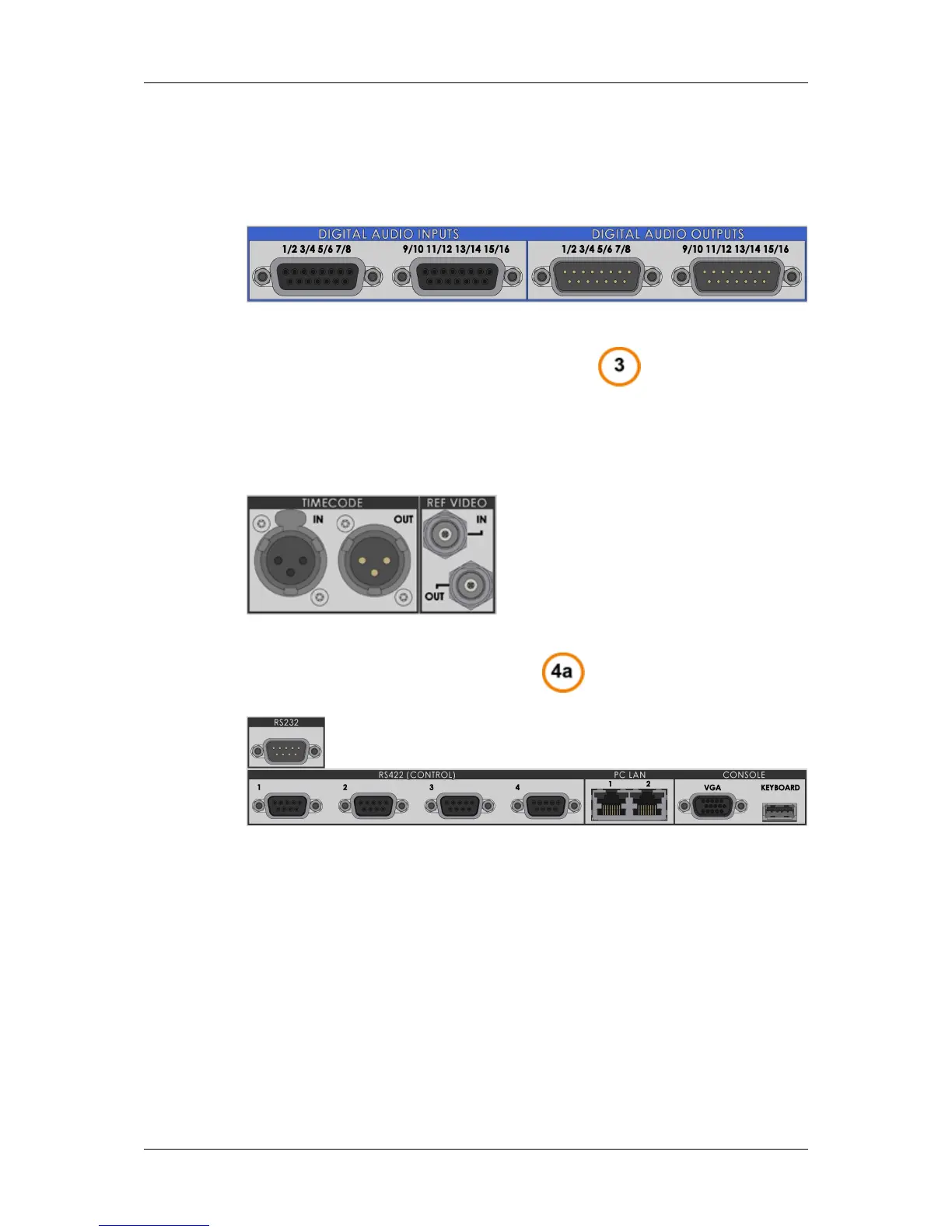

The following digital audio connectors layout are delivered with the XT3 4U server:
DA-15 Connectors
4 multi-pin DA-15 connectors (2in and 2out)
Timecode and Video Ref Connectors
The Timecode connectors allow the server to receive the LTC timecode reference signal
and send the LTC timecode that corresponds to PGM1.
The Ref Video connectors allow the server to receive or send back the analog genlock
reference signal.
Controls and Communications
This rear panel part, located below the audio connectors, presents connectors that allow
the EVS server to communicate with other devices. The connectors are described from
top left to bottom right:
The RS232 connector allows a tablet to be connected to the server.
The RS422 ports allow the server to be remotely controlled through remote panels or
third-party control devices. When a remote panel is used, it should be connected on the
first RS422 port.
Two PC LAN connectors allow connection of the PC LAN interface of the EVSserver to
an Ethernet network.
The Console connectors allow a monitor and a keyboard to be connected to the server.
60 5. Hardware Installation and Cabling
EVS Broadcast Equipment SA Issue 12.05.C- November 2014
