Connector label UHD4K in 3G-SDI
OUT 1A 3G-SDI output of the top left frame (square division) or
3G-SDI output of a 1080p frame at 1/4 of 4K resolution (two-sample
interleave)
OUT 1B 3G-SDI output of the top right frame (square division) or
3G-SDI output of a 1080p frame at 1/4 of 4K resolution (two-sample
interleave)
OUT 1C 3G-SDI output of the bottom left frame (square division) or
3G-SDI output of a 1080p frame at 1/4 of 4K resolution (two-sample
interleave)
OUT 1D 3G-SDI output of the bottom right frame (square division) or
3G-SDI output of a 1080p frame at 1/4 of 4K resolution (two-sample
interleave)
UHD MON 1 HD (1080p) monitoring of UHD OUT1
The monitoring output results from a mean of the 4 corresponding
UHD-4K pixels.

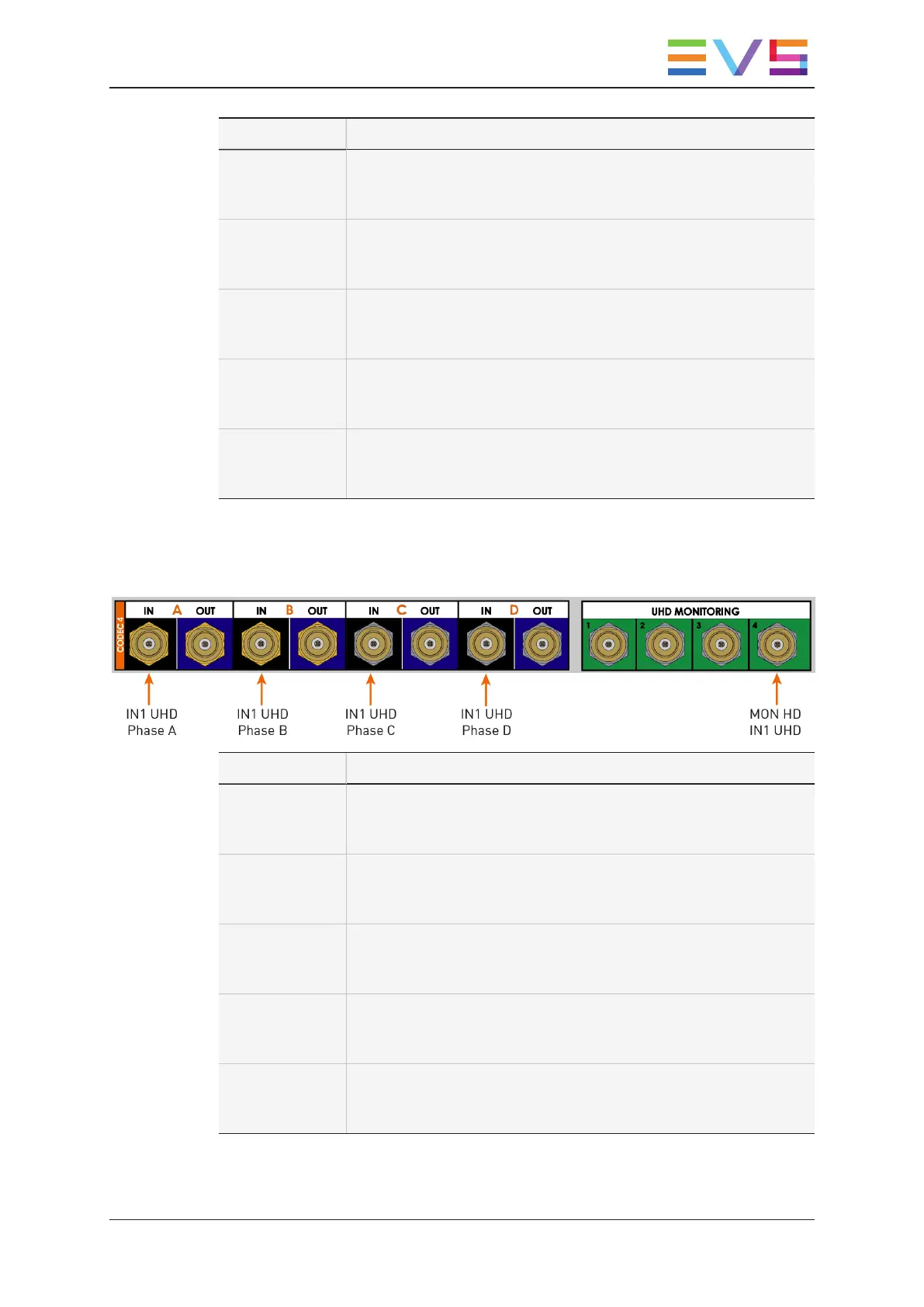

IN Channels
Connector label UHD4K 3G-SDI
IN 1A 3G-SDI input of the top left frame (square division) or
3G-SDI input of a 1080p frame at 1/4 of 4K resolution (two-sample
interleave)
IN 1B 3G-SDI input of the top right frame (square division) or
3G-SDI input of a 1080p frame at 1/4 of 4K resolution (two-sample
interleave)
IN 1C 3G-SDI input of the bottom left frame (square division) or
3G-SDI input of a 1080p frame at 1/4 of 4K resolution (two-sample
interleave)
IN 1D 3G-SDI input of the bottom right frame (square division) or
3G-SDI input of a 1080p frame at 1/4 of 4K resolution (two-sample
interleave)
UHD MON 1 HD (1080p) monitoring of UHD IN1
The monitoring output results from a mean of the 4 corresponding
UHD-4K pixels.
