EVS XT4K - Page 72

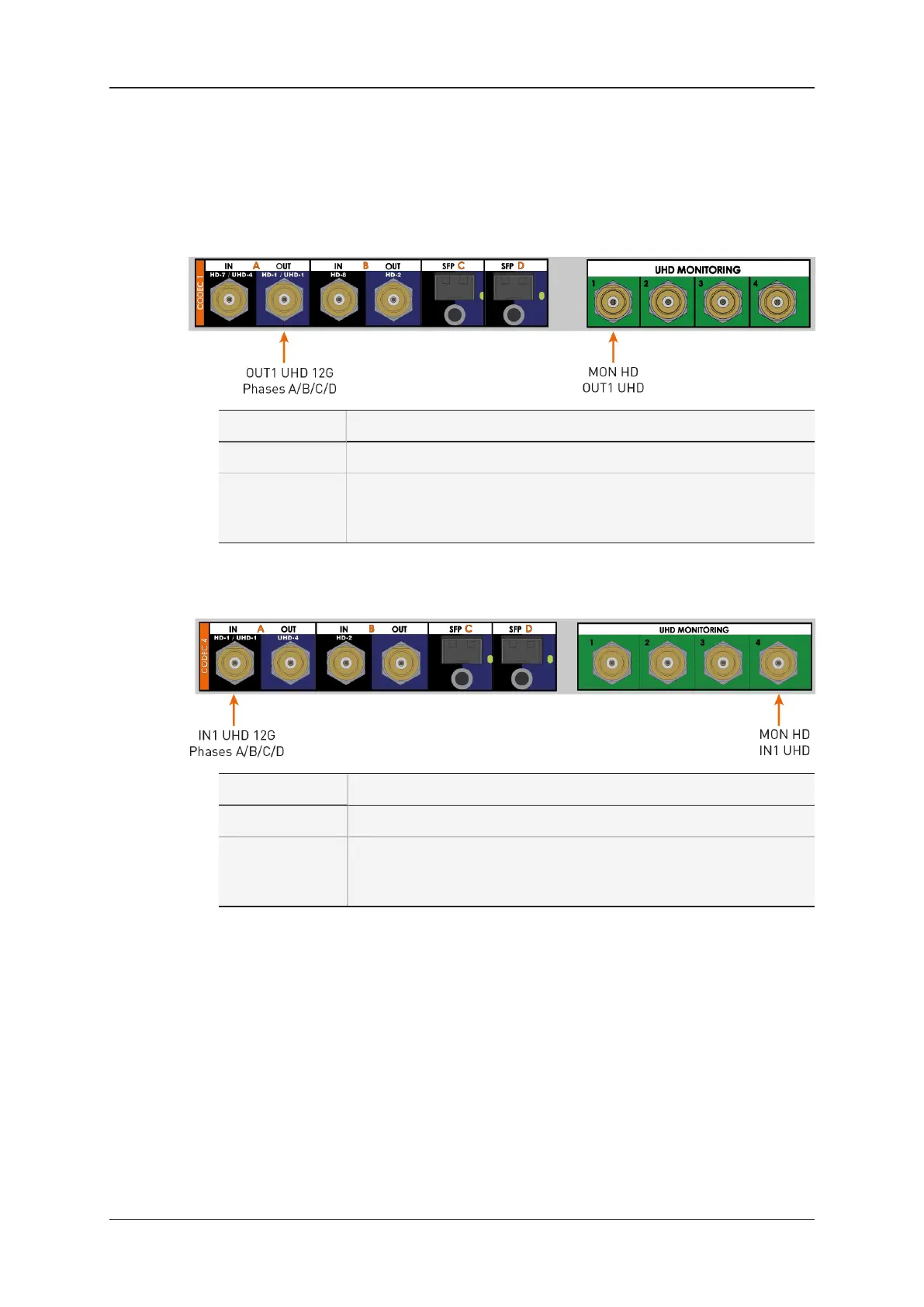

SDI & IP Hybrid Panels
OUT Channels
Connector label UHD4K 12G-SDI
OUT 1A 12G-SDI output of the UHD-4K image
UHD MON1 HD (1080p) monitoring of UHD OUT1
The monitoring output results from a mean of the 4 corresponding
UHD-4K pixels.
IN Channels
Connector label UHD4K 12G-SDI
IN 1A 12G-SDI input of the UHD-4K image
UHDMON1 HD (1080p) monitoring of UHD IN1A
The monitoring output results from a mean of the 4 corresponding
UHD-4K pixels.
