Connector
label
HDMode
IN 4C SDI input of another IN channel (cabled when all connectors A & B of
codec modules used with recorders have been cabled).
IN 4D SDI input of another IN channel (cabled when all connectors A & B of
codec modules used with recorders have been cabled).
OUT 4A SDI monitoring output of the IN1 channel.
OUT 4B SDI monitoring output of the IN2 channel.
OUT 4C SDI monitoring output of the IN channel cabled on IN 4C.
OUT 4D SDI monitoring output of the IN channel cabled on IN 4D.
SDI & IP Hybrid Panels
On hybrid panels, you can use either the SDI connectors or the IP connectors, but not
both connector types concurrently. The cabling principles on hybrid panels are the same
as on SDI panels.
The hybrid panels can accommodate configurations with maximum 8 channels using the 4
codec modules on the SDI or IP interface.

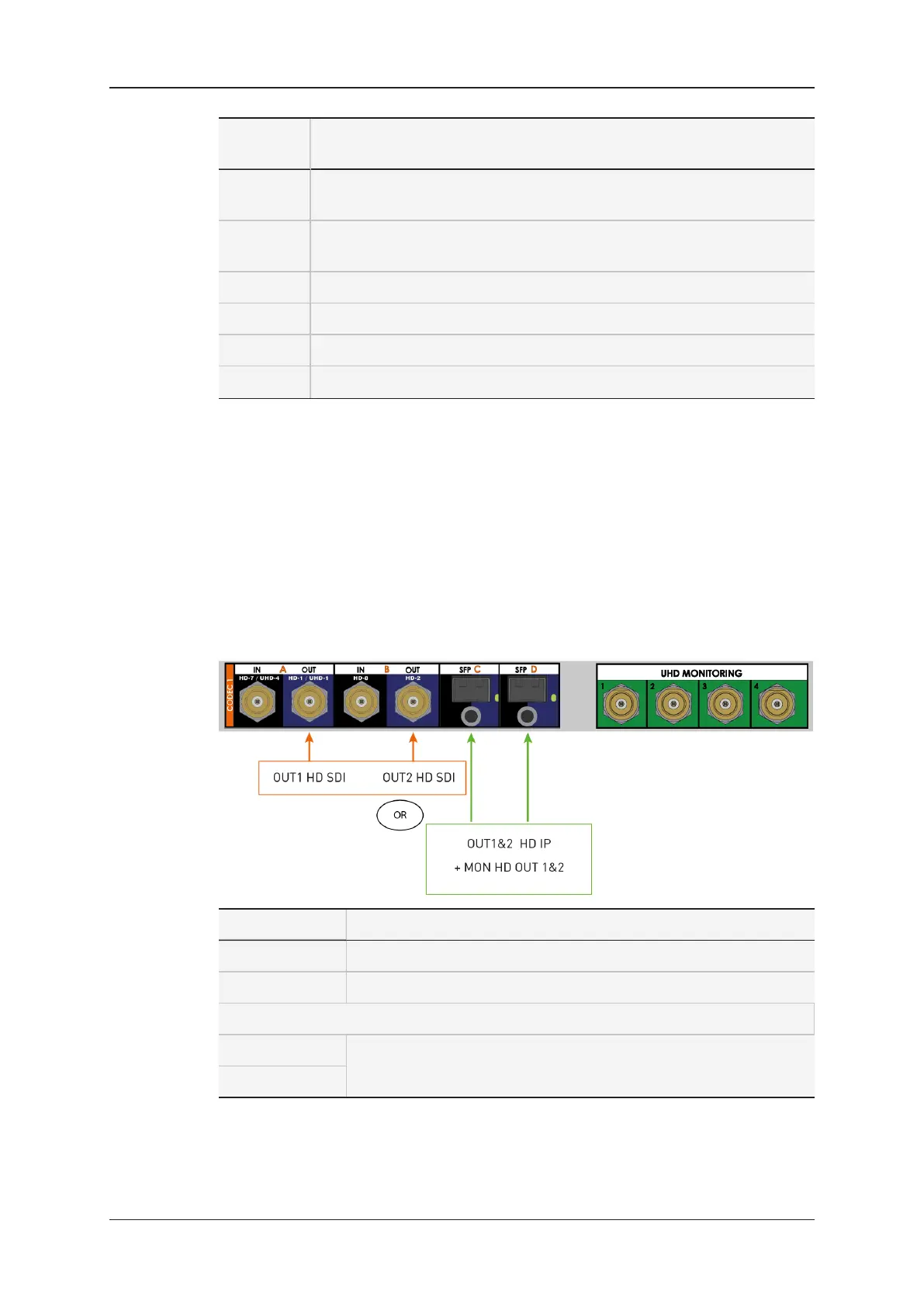

OUT Channels
Connector label HDMode
OUT 1A SDI output of the OUT1 channel (no SDImonitoring).
OUT 1B SDI output of the OUT2 channel (no SDImonitoring).
OR
SFP 1C IP output of the OUT1&2 channels and
IP monitoring of the OUT1&2 channels
SFP 1D
