If the LSM TV mode is used, these jumpers must be set up according to EVS
recommendations, which depend on software version and CPU board model/revision:
Set up the jumpers as follows:
• HPOL=On; VPOL=Off; ENVS=On

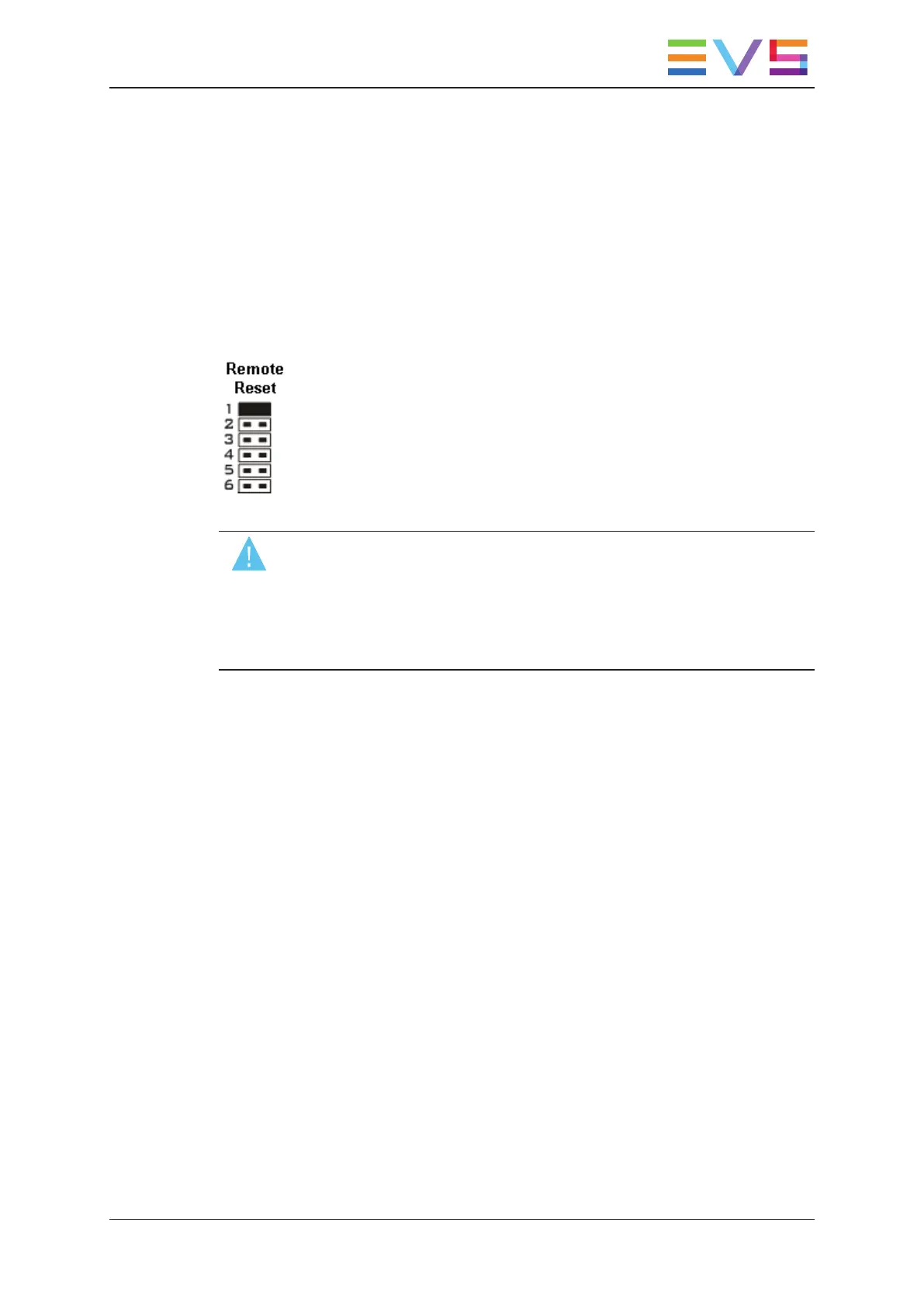

REMOTE RESET jumpers are available to designate the remote(s) from which the
RESET command can be sent.
This command resets the whole system: PC and video hardware.
In standard configuration only Remote one (on RS422 port 1) is allowed to reset the
system.
WARNING
This jumper should be removed if the device connected to the RS422 port is
NOT an EVS controller. Maximum voltage on pin 5 of an RS422 port of the
server should not exceed 5 Volt when the corresponding jumper is engaged.
Applying a higher voltage on pin 5 when the corresponding jumper is engaged
will result in permanent electronic damage to the board.
