Design and function
MIG/MAG welding
099-005401-EW501
17.06.2014

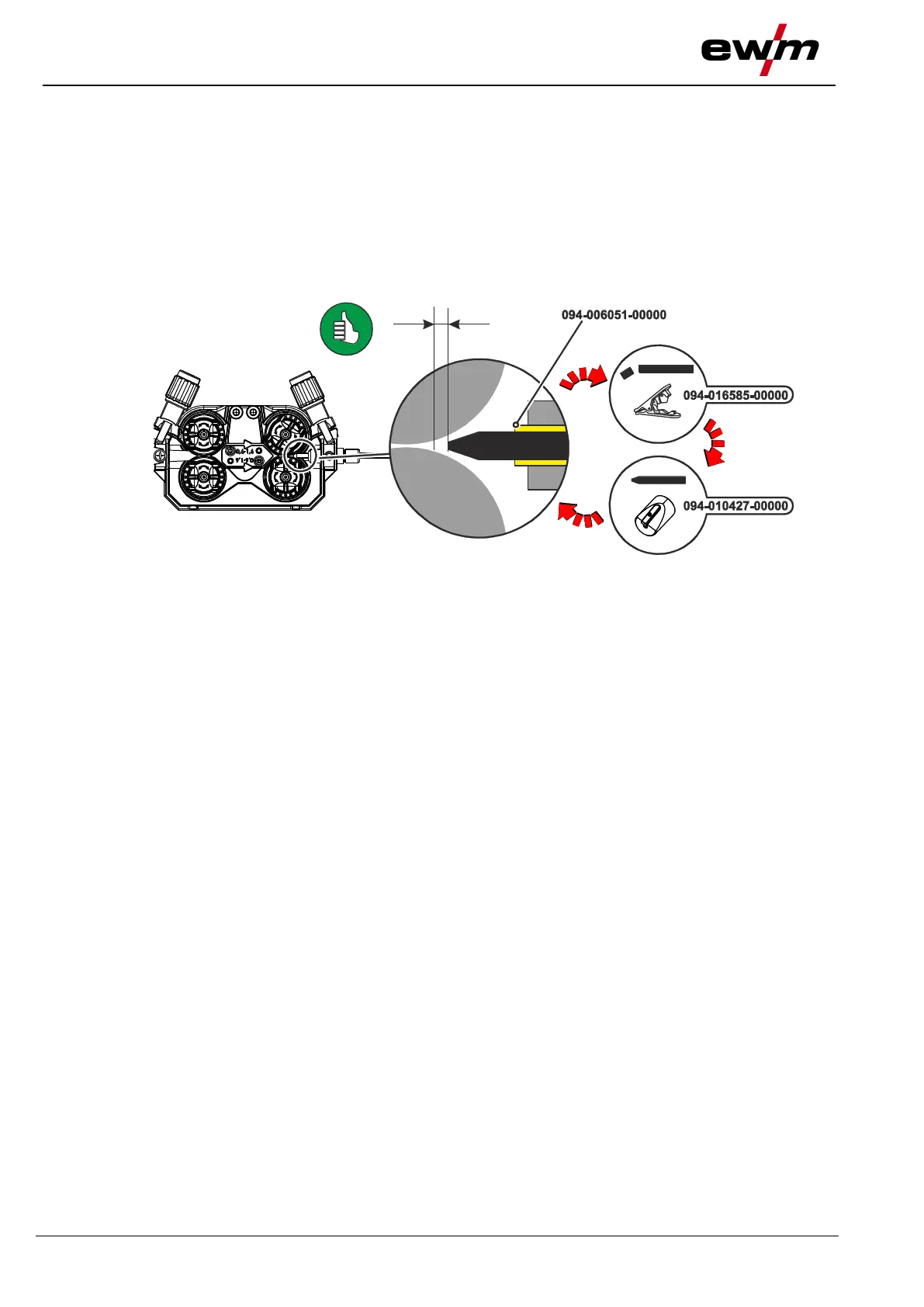

Preparation for connecting welding torches with a plastic core:
• Push forward the capillary tube on the wire feed side in the direction of the central connector and
remove it there.
• Slide plastic core guide tube off the central connector.
• Carefully insert the central plug for the welding torch, with the still oversized plastic liner, into the
central connector and screw together with crown nut.
• Use a suitable tool to cut off the plastic liner just before the wire feed roller, making sure not to pinch it.
• Unfasten and remove the central plug on the welding torch.
• Cleanly remove the burr from the separated end of the plastic core!
Figure 5-6
