Design and function
MIG/MAG welding
099-005401-EW501
17.06.2014
29

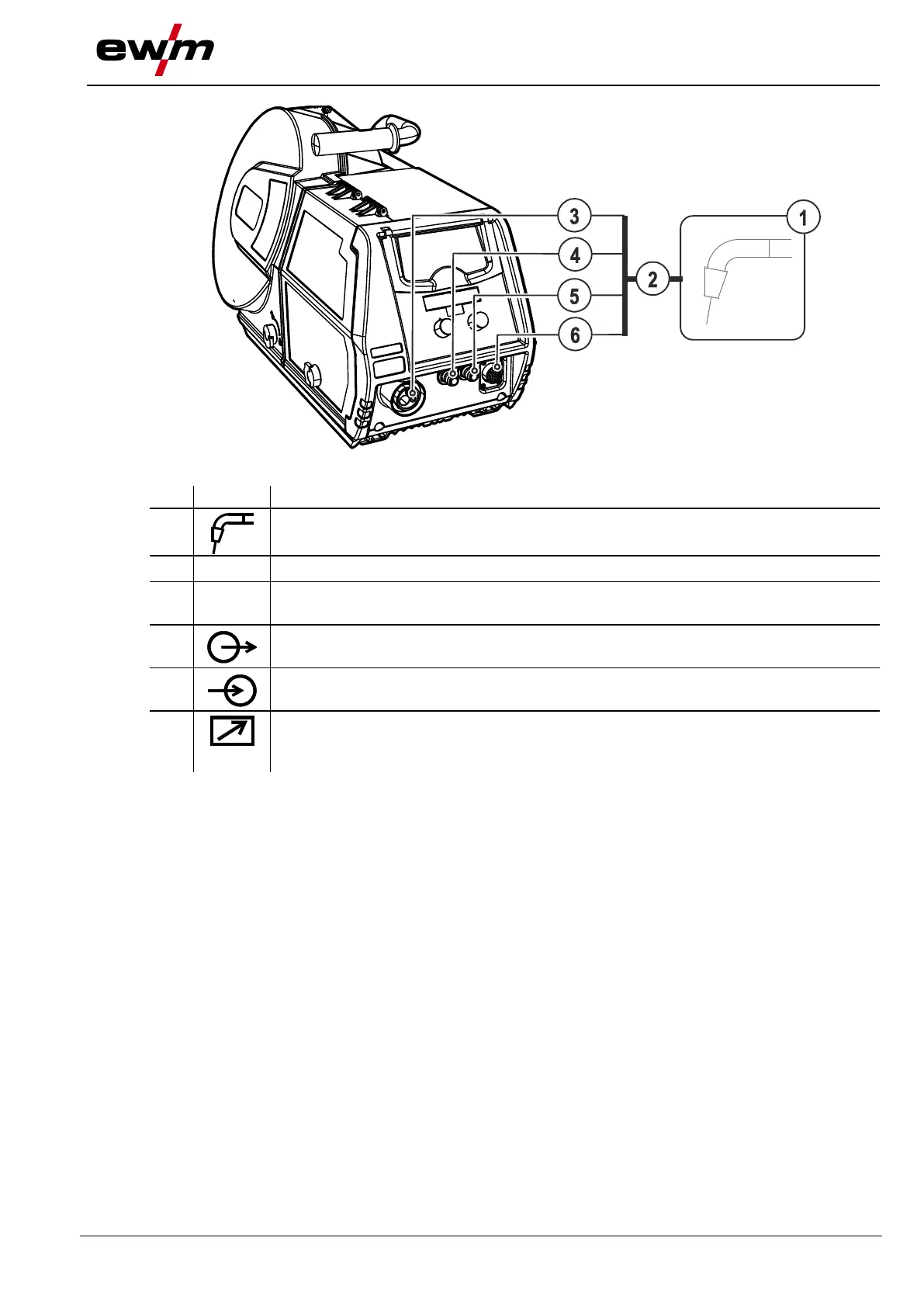

Figure 5-7
Item
Symbol
Description 0
1
Welding torch
2
Welding torch hose package
3
Welding torch connection (Euro or Dinse torch connector)
Welding current, shielding gas and torch trigger integrated
4
Quick connect coupling (blue)
coolant supply
5
Quick connect coupling (red)
coolant return
6
19-pole connection socket (analogue)
For connecting analogue accessory components (remote control, welding torch control
lead, etc.)
• Insert the central plug for the welding torch into the central connector and screw together with crown
nut.
• Lock connecting nipples of the cooling water tubes into the corresponding quick connect couplings:
Return line red to quick connect coupling, red (coolant return) and
supply line blue to quick connect coupling, blue (coolant supply).
• Insert the welding torch control cable into the 19-pole connection socket and lock (MIG/MAG torches
with additional control cables only).
