System diagram
EXAKT 35 / 50 Edition 04/09.2002
11
5 System diagram
5.1 Operator controls
Note
For information concerning spare part orders see the section
spare parts and accessories.

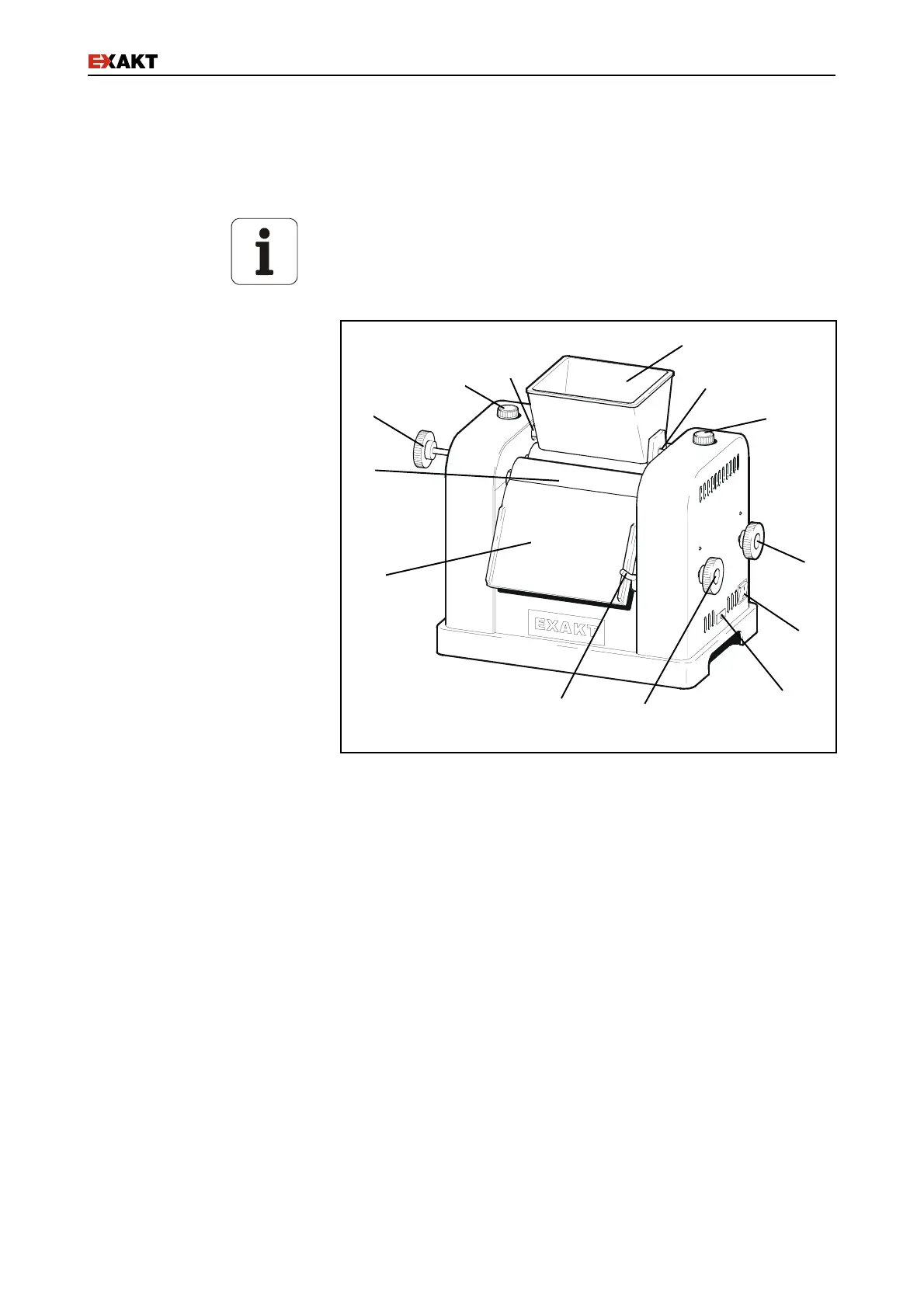

Fig. 1: System diagram
a Attachable hand-wheel for manual roller rotation (e.g. for
cleaning)
b Fastening screw for stainless steel hopper (option)
c Plastic guides
d Hopper
e Knob for adjusting rear roller gap
f Main ON/OFF switch (see section 5.4 for information
concerning the speed control system EXAKT 50 only)
g Circuit breaker (EXAKT 50 only)
h Knob for adjusting front roller gap
i Release lever for scraper
j Scraper
k Front, centre and rear rollers
g
e
w
c
d
i
a
b
c
f
h
k
