Appendix
EXAKT 35 / 50 Edition 04/09.2002
47

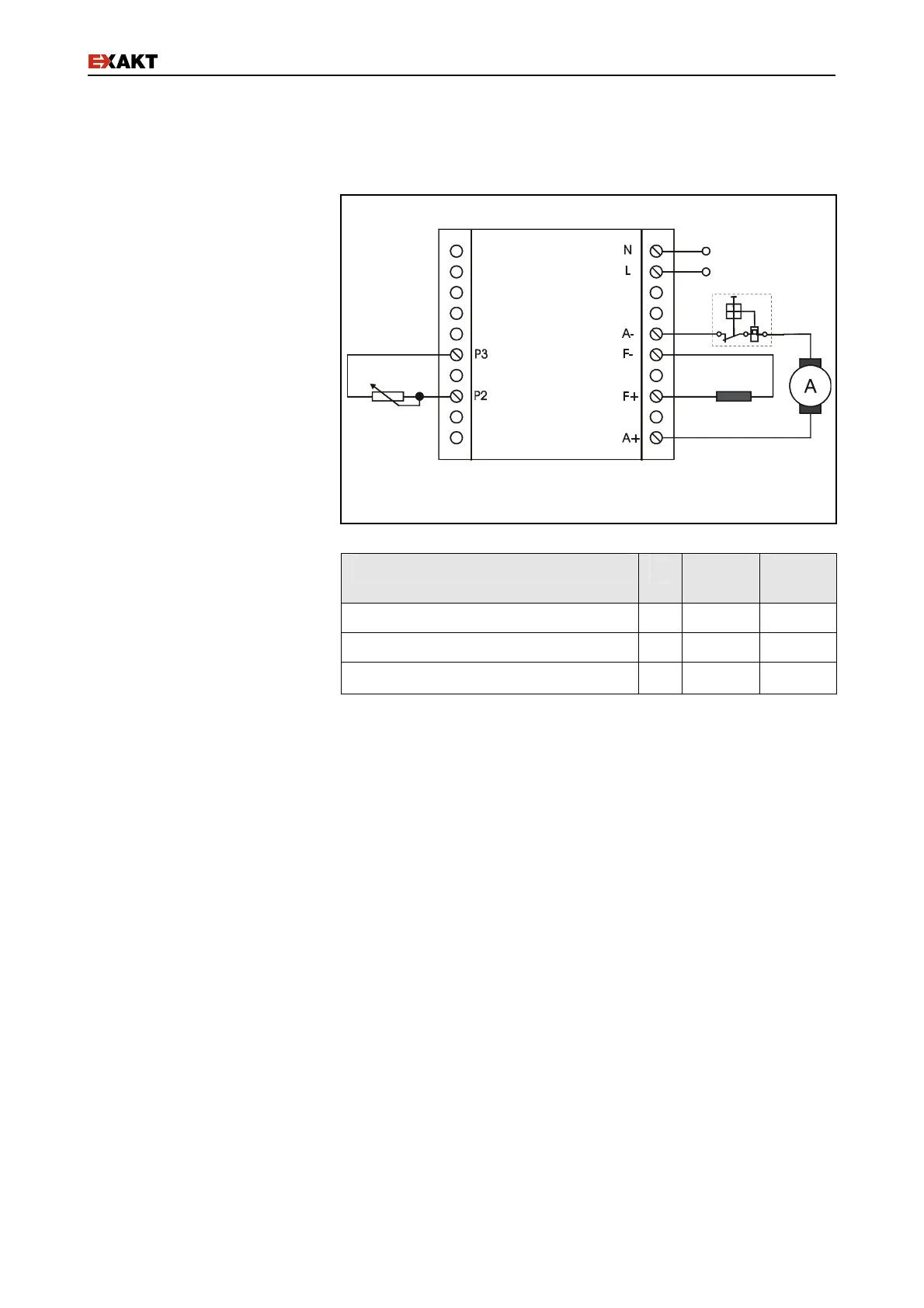

12.3 Circuit diagram of speed control system
Fig. 27: Speed control system
Name 100-
110 V
230-
240 V
Fuse F 4 A F 4 A
ETA circuit breaker
S1
1.5 A 1.0 A
Potentiometer for speed adjustment
R1
1 M# 1 M#
R1
S1
