10.2 EXAKT 35 spare parts

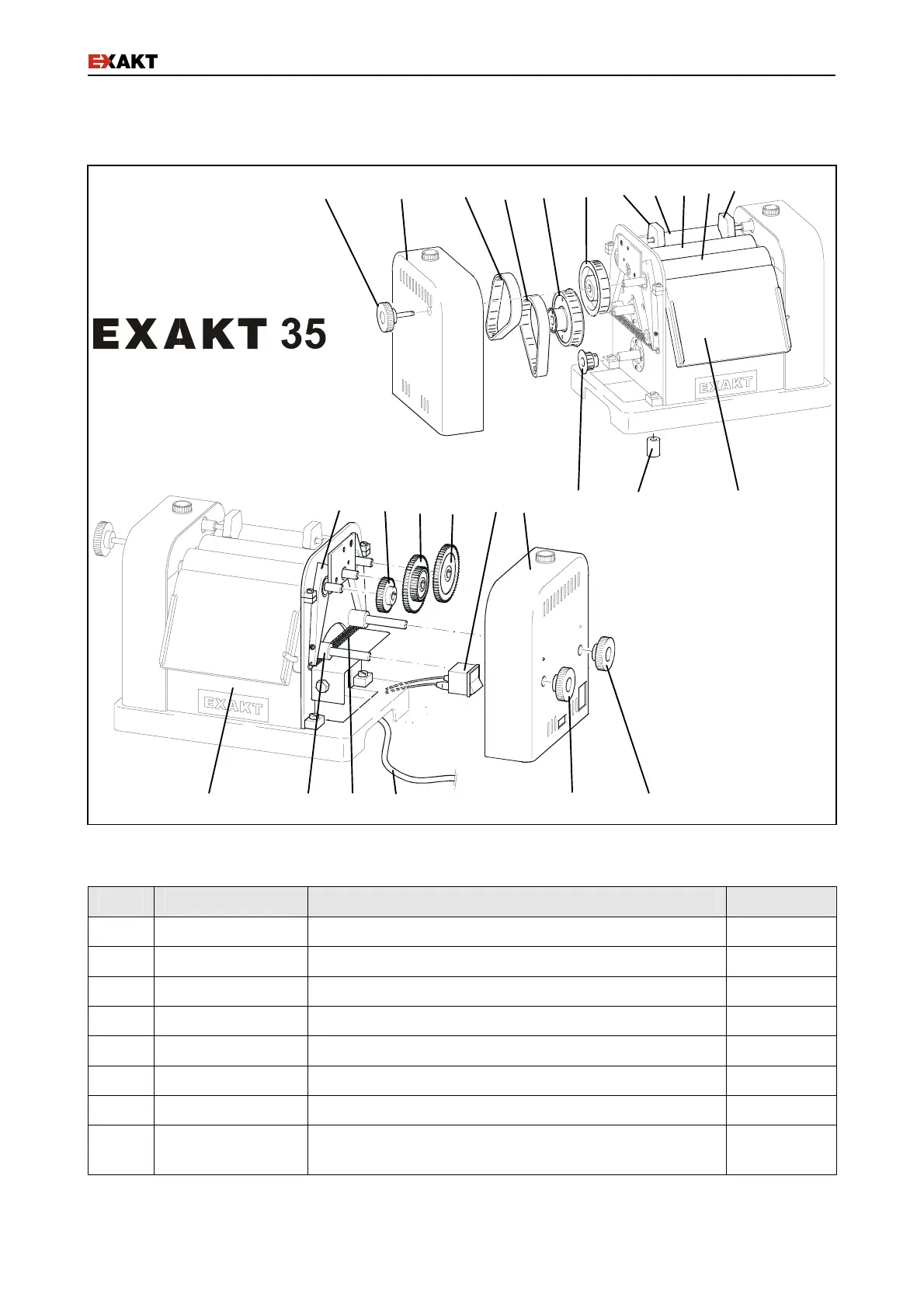

Fig. 23: EXAKT 35
Item Part no. Description Quantity
1 10500 Reducing gear
2 10510 Adjustable pulley
3 10520 Drive pulley
4a/4b 10570 V-belt step 1+2
5 10600 Cover, left side
6 10610 Cover, right side
7 10300 Plastic guide (1 unit)
8 Material specific
part no.
Rear roller
13 5 4b 4a 1 2 7 8 9 10 7
20 17 18 19 16 6 3 25 11/12
23 22 21 24 15 14
