RS-232 Interface Format
I . Mode: UART Signal of EIA-RS0232 C
II . Format :
1. Baud rate : 1 200, 2 400, 4 800, 9 600 bits/second
2. Data bits : 8 bits
3. Parity bit : None
4. Stop bits : 1 bit
5. Code : ASCII (Exchange code of American standard)

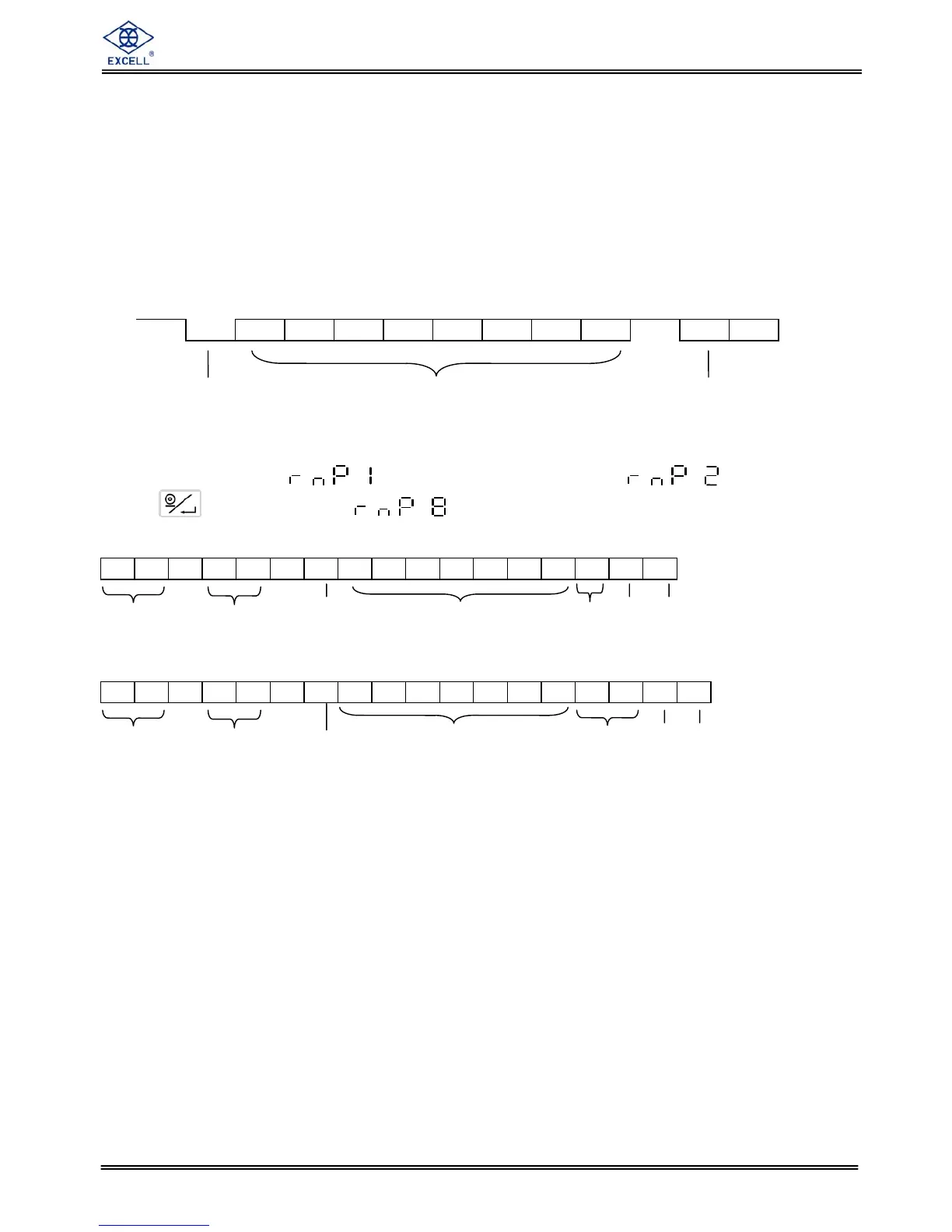

Start bit Data bits Stop bit
RS-232 Data Format
Stable transmission ( ), Continuous transmission ( ),
Press key to transmit ( )
(1) gram as weight unit
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 g
HEAD , HEAD , ± DATA UNIT CR LF
(2) kg or lb as weight unit
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 kg/lb
HEAD , HEAD , ± DATA UNIT CR LF
