3-2 ⇒ RS-232 Interface Output Setting
Make J1、J3 on RS232 short circuit, when connecting to computer.

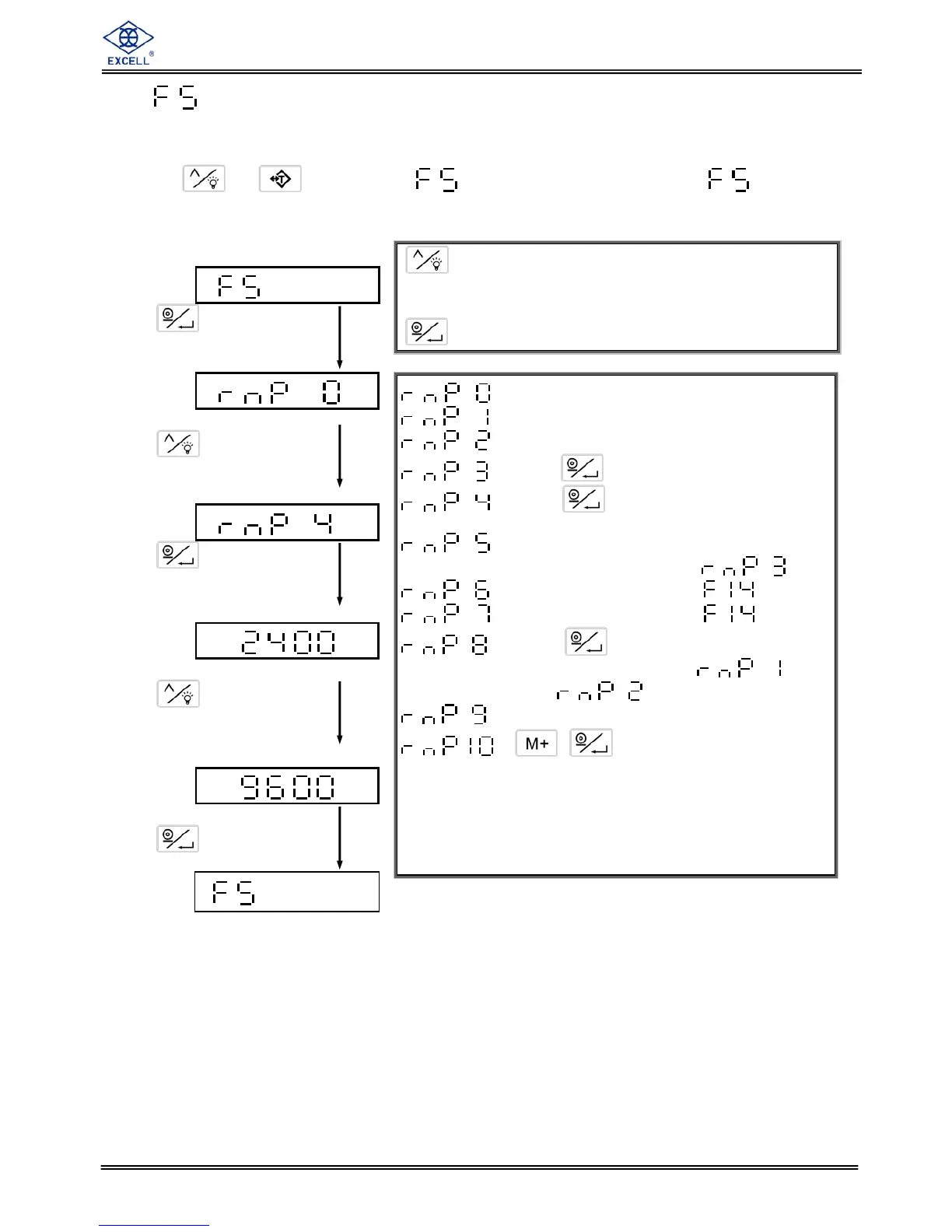

Press or key to select function ⇒ the display shows
Press key
The display shows the default
setting of transmission mode
Press key
Select transmission mode
Press key
The display shows the default
setting of RS-232 baud rate
Press key
Select RS-232 baud rate
(1200, 2400, 4800,9600)
Press key
key = Increase the flash value by one (from 0 to
8) or selecting baud rate from 1200,
2400,4800 and 9600(default setting).
key =Confirm key
⇒ No transmission
⇒ Stable transmission *
⇒ Continuous transmission *
⇒ Press key to transmit in simple mode. *
⇒ Press key to transmit in complete
mode.*
⇒ Stable transmission in totalizing mode.
The format is as same as *
⇒ Free format. Please refer to .
⇒ Free format. Please refer to .
⇒ Press key to transmit.
The format is as same as
and . *
⇒ Continuous transmission，specific format *
⇒ or key transmit specific format *
* : RS-232 is open
 For Brazil approval models, if the unit weight is less than
0.1d, RS232 function close.
(from 0 ~ 8 )
