USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg

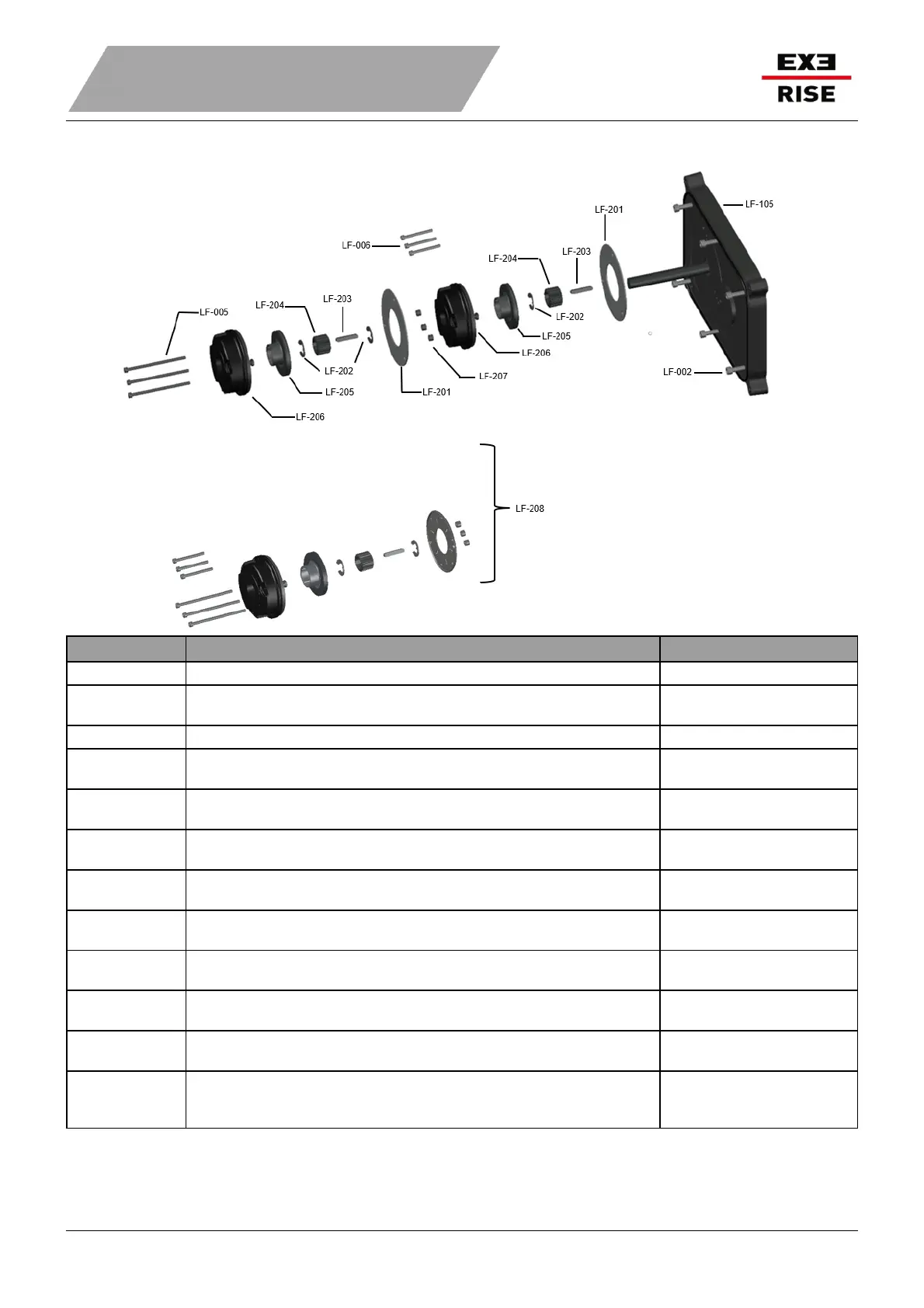

LF2 - Brakes Exploded drawingLF2 - Brakes Exploded drawing
KEY NUMBERKEY NUMBER
DESCRIPTIONDESCRIPTION A4I ITA CODEA4I ITA CODE
LF-002 Screws UNI 5931 6X40mm TCEI 8.8 ZB (n.4 x frame) 3.0740
LF-105 Large Frame Brake Frame
Not available separately
(LF-113
LF-201 Steel brake disk Øe 122mm - Øi 50mm – S=1.5mm (n.1 per brake) LT XRS-0192
LF-202
KIT n.4 Seeger-Ret. Shaft Locking Washer Set Ø10mm
(n.2 x 2nd brake – n.1 x 1st brake)
LT XRS-0160
LF-203 Metal key 6x28mm (n.1 x brake)
Not available separately
(LF-208)
LF-204 Hub gear (n.1 x brake)
Not available separately
(LF-208 LF-209)
LF-205 Rotor brake (n.1 x brake)
Not available separately
(LF-208 LF-209)
LF-206 KIT Stator brake L10 103VDC (n.1 x brake)
Not available separately
(LF-208)
LF-207 (Only double brake) Spacers (n.3 x pair of brake)
Not available separately
(LF-208)
LF-005
(Only double brake) n.3 Screws UNI 5931 5x90mm TCEI 8.8 ZB
(n.1 kit x pair of brake)
LT XRS-0154
LF-006
(Only single brake) n.3 Screws UNI 5931 5x40mm TCEI 8.8 ZB
(n.1 kit x brake)
LF-208
KIT 1st or 2nd brake
LF-201 + n.2 LF-202 + LF-203 + LF-204 + LF-205+ LF-206 + n.3 LF-
207 + n.3 TCEI-M5x90 + n.3 TCEI-M5x40
LT XRKB10
