Introducing the OTH-7000 Optical Test Head
Optical Test Head 3
Available Configurations
Note: You can also connect the unit to AC power with the AC/DC power adapter
sold by EXFO.
USB host ports
Reset button

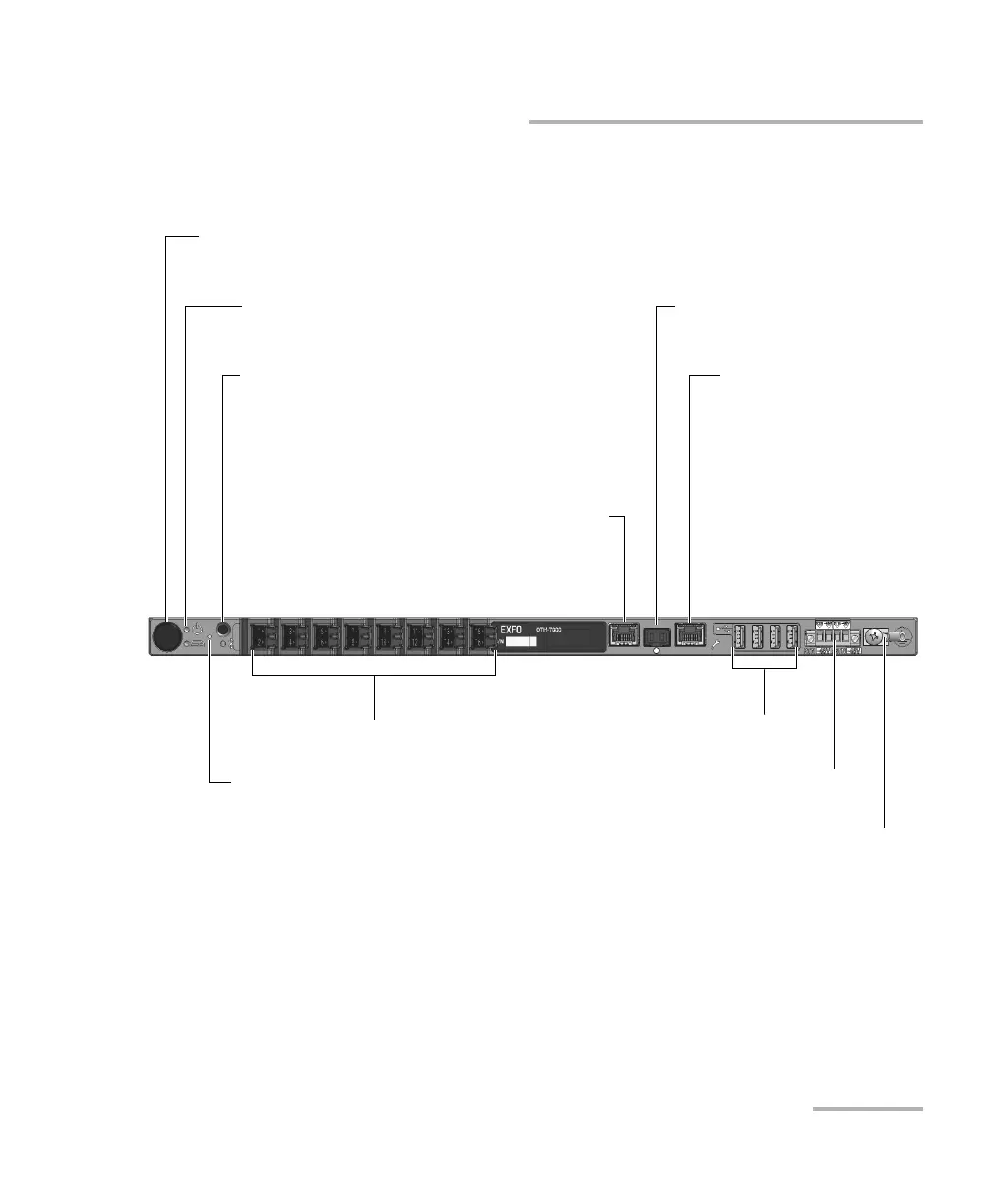

Front panel (16-port model shown)
Ethernet (RJ-45)
management port for local
access (to connect a
portable computer to the
unit)
Optical test ports
DC power inlet (dual feed)
Grounding lug
Ethernet (RJ-45) port
(for LAN/WAN connection)
Bluetooth
®
communication activation
button and status LED (reserved for future
use)
On/Off button
LEDs SFP port and status LED
