FX15 Controller Technical Bulletin
34
Connecting Active Current Sensors
The FX15 analog inputs can accept a maximum of four active current
sensors, powered by the FX15 itself, in the range 0-20 mA or 4-20 mA.
The AI has to be configured via software (and hardware jumpers) in
order to accept current signals. If a 4-20 mA sensor has to be connected,
the specific hardware jumpers has to be closed (see Figure 31) and the
application can be configured through the FX Builder, setting 0-20 mA,
20% suppression.
The FX15 can be connected to P299xAx series of Johnson Controls®
pressure sensors which generate a 4-20 mA signal.
1 2 3
AGND
AI1
EXT V
4 5
AGND
AI2
6 7
AGND
AI3
8
EXT V
FX16
P299xAx
Active Pressure Sensor
FX15

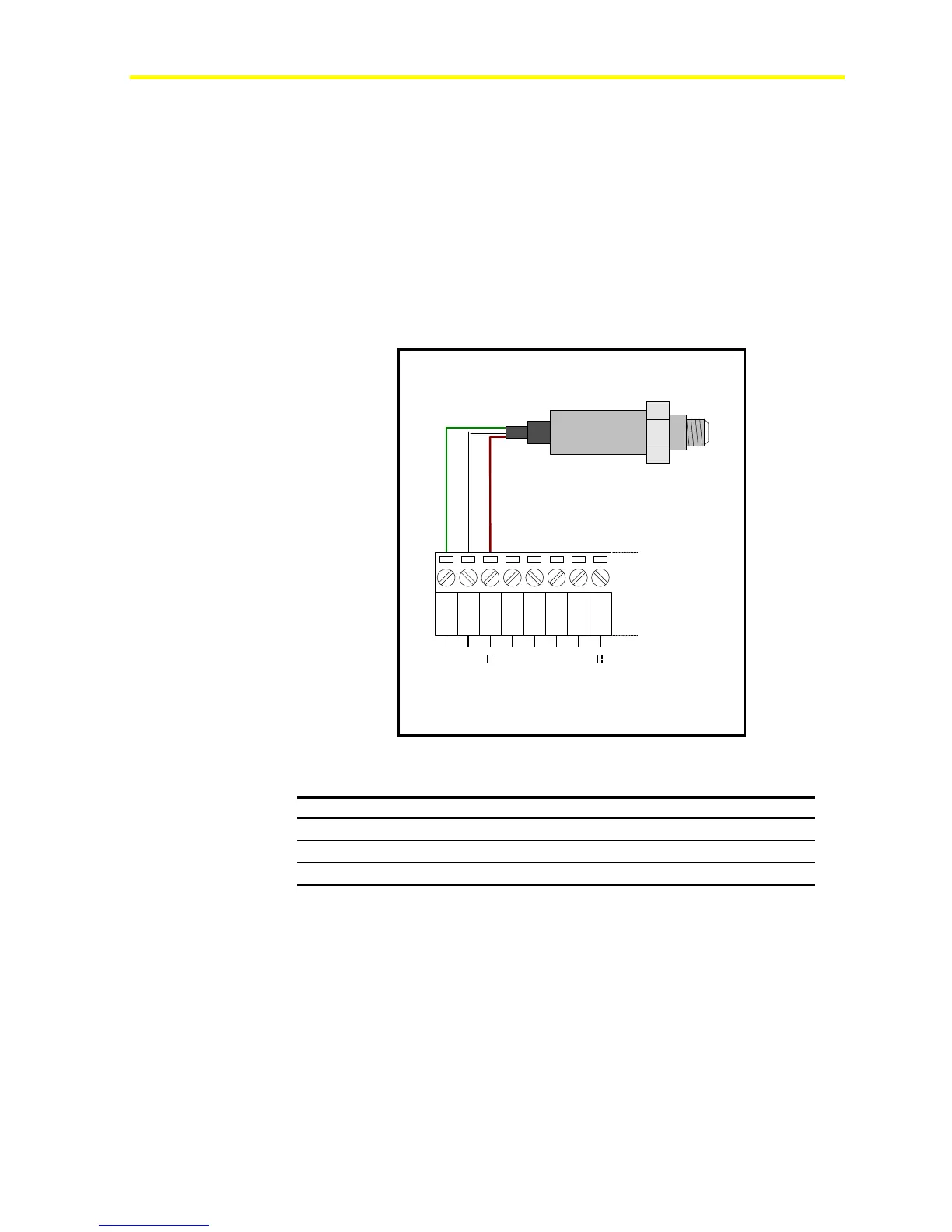

Figure 34: Pressure Sensor Connection Diagram
Table 5: Active Current Sensors
FX15 Terminals P299xAx Cable Description
AGND (1)
Green Common Reference
EXT V (3)
Brown Sensor Power Supply 16 V, 80 mA
AI1 (2)
White Pressure Output 4-20 mA
Note: The numbers between the brackets are the FX15 terminal
numbers.
