Extel WEAT V2 N - Complete Installation; Specifications

WEAT V2 N - V1
9GB

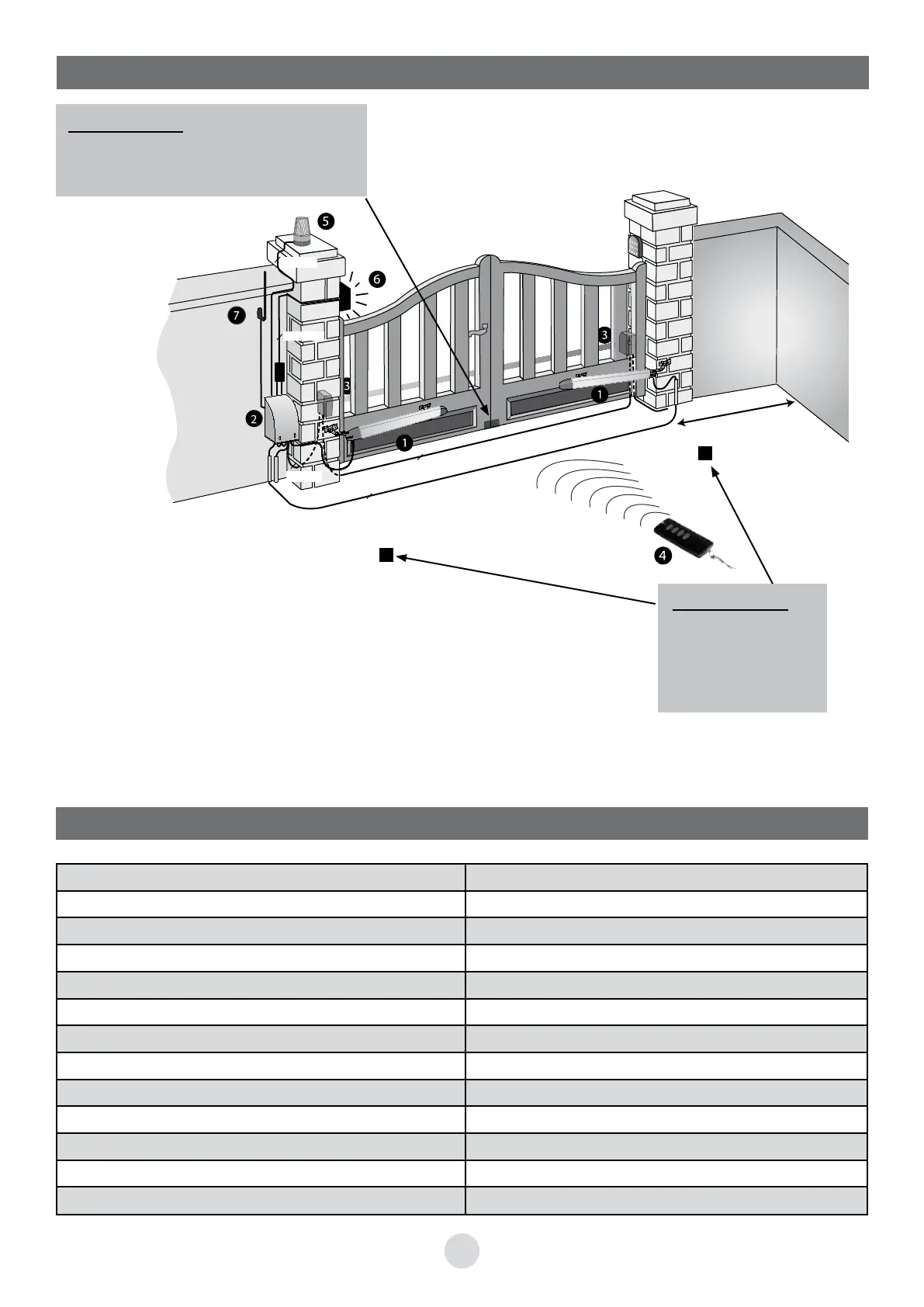

3. COMPLETE INSTALLATION
4. SPECIFICATIONS
Max. weight of leaf 200 kg
Max. width of leaf 2 m
Power supply 230 VAC / 12 VAC
Power consumption 0.8-3.5 A at 12 VDC per worm gear actuator
Power 40 W per actuator
Delivered torque 650 N
Weight of one worm gear 3.4 kg
Motor speed 1400/175 rpm
Degree of protection IP55 (actuators) IP44 (elec. box)
Travel time to 90° Approx. 15 sec. depending on opening angle
Unlocking With key
Operating temperature -20°C / +55°C
Corner piece at 90° 20 cm mini
2 x 1,5 mm
2
2 x 1,5 mm
2
2 x 6/10e
2 x 6/10e
3 x 6/10e
1 – 2 worm gears, left or right
2 – electronic box to be placed on the left or right
3 – set of photocells
4 – remote control WEATEM 4
5 – flashing beacon (visible from street) 12 VDC
6 – lighting of the motion area VIA the supplied control module.
7 - WEATAN 2 : optional antenna for extended remote control range
IMPORTANT :
Install a middle ground stop outside the
gate to stop the two leaves
IMPORTANT :
Use a ground stop
for each leaf, when
opening or use the
internal stops.
clearance
20 cm mini
