Extel WEAT V2 N - Dimensions; Typical Connection

WEAT V2 N - V1
10GB
RX
TX

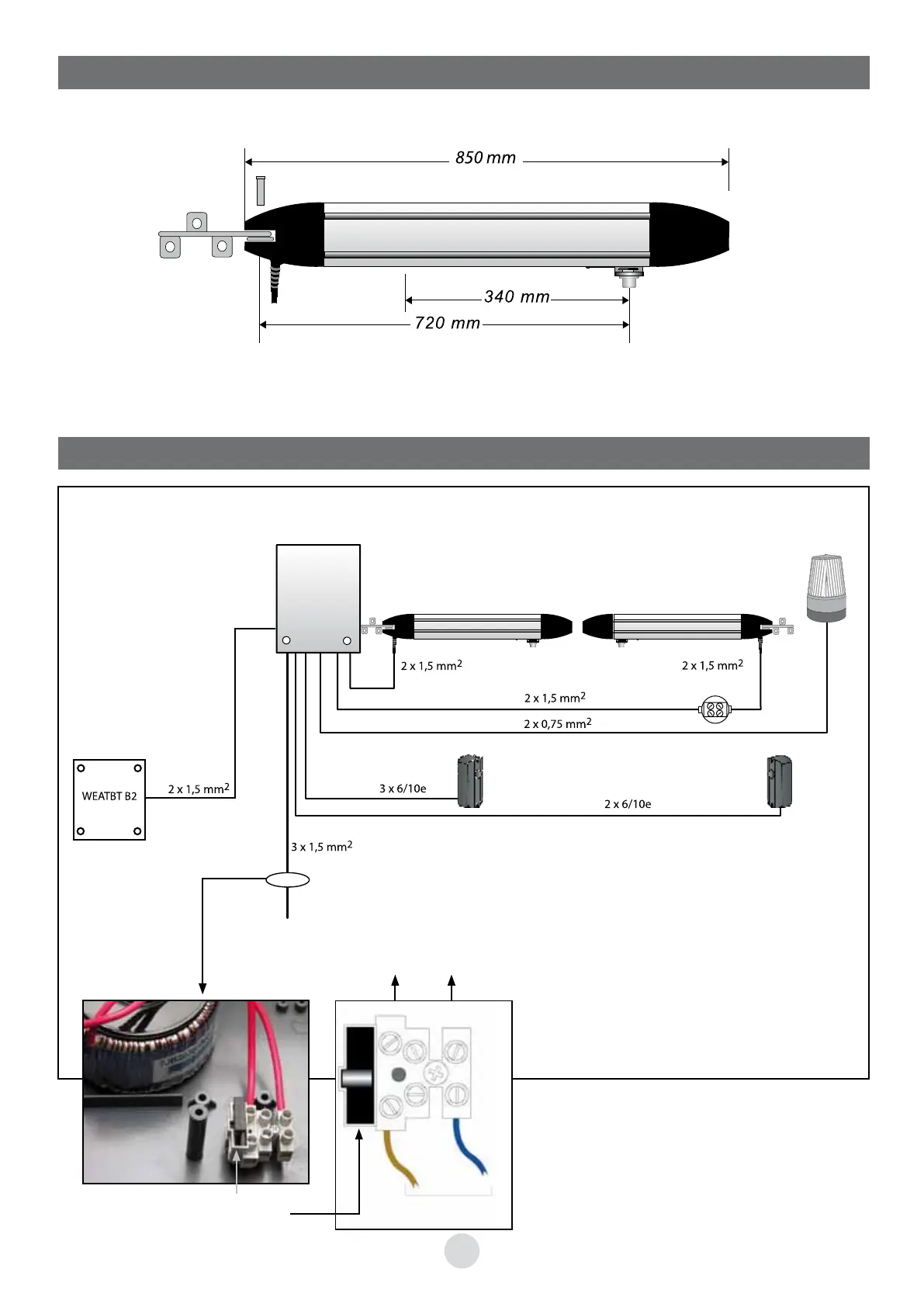

5. DIMENSIONS
6. TYPICAL CONNECTION
After protecting the power supply with a
10 A two-pole circuit breaker and a 30 mA
GFCI, is to be connected to the terminal
board inside the cabinet.
Flashing beacon
PHOTOCELLS
Battery kit
(option)
230 VAC mains
power supply
To transfo
Fuse (5x20)
250V 1AT
neutrallive
230 V mains
power supply
Drive slide
