6.1 Assembly
An authorised dealer should assemble the
stove.
The assembling of the ceramics in the stoves
which have majolica tiles, must be done by a
qualified technician.
6.2 Installation
a) Paying attention to the dimes of perforation
and taking into consideration a floor pro-
tection plate, if fitted, measure and make
the hole in the chimney for connecting the
fume exhaust pipe with diam. 80 mm.
If the hole has to be done on a wood wall,
the minimum hole diam. must be 130 mm.,
and a min. 20 mm. thickness insulation
material.

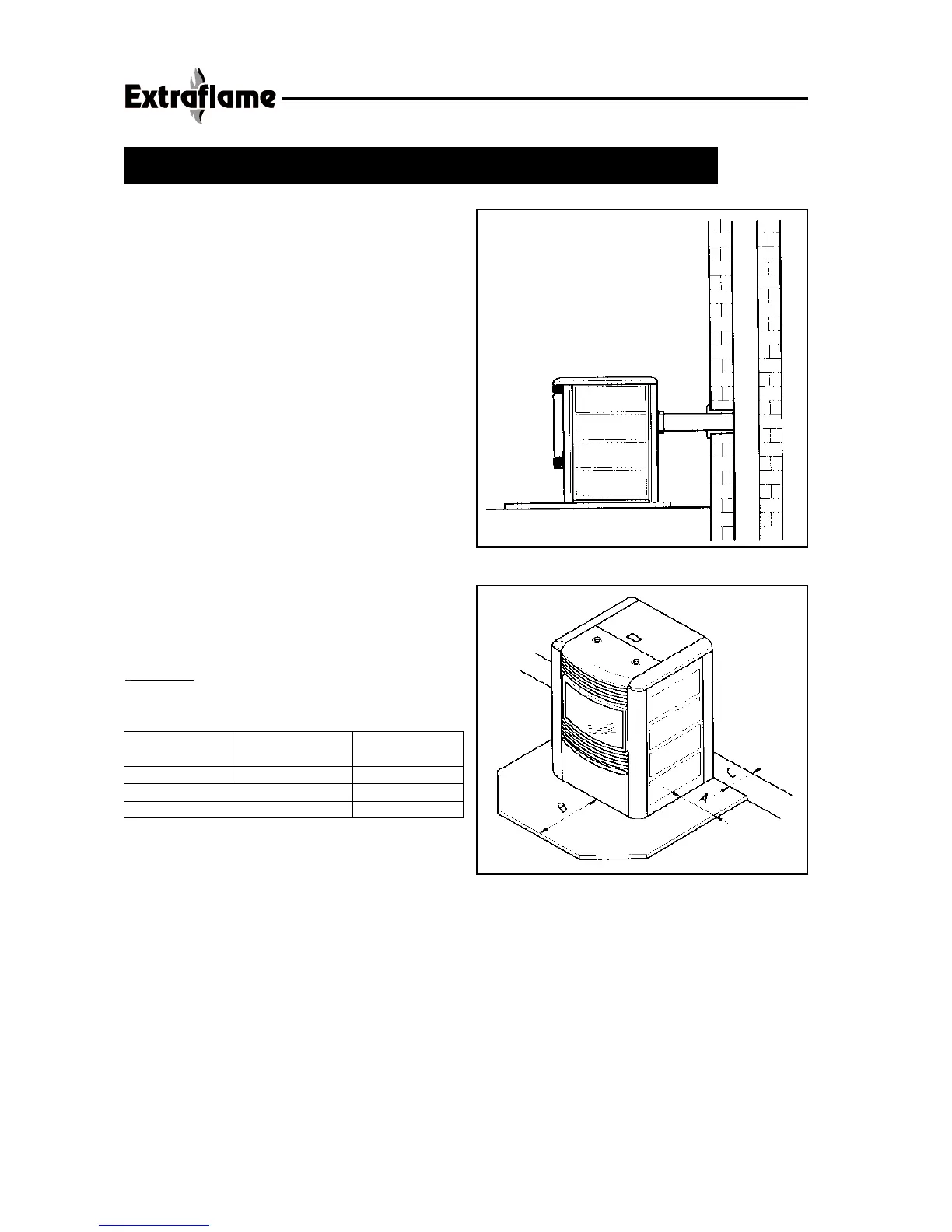

b) Connect the stove to the chimney by means
of a steel pipe, sealing it hermetically and
taking care not to obstruct the free section
with the fume pipe. (See fig. 1)
TABLE A: Dimensions of the floor protection
plate and relative safety distances in mm.
6 ASSEMBLY AND INSTALLATION INSTRUCTIONS
REFERENCES
Flammable Not-flammable
objects objects
a* 200 100
b* 800 400
c* 200 100
PRECAUTIONS
1. The appliance must be placed on a flame
resistant floor.
If it is placed on a flammable floor, a floor protection plate must be used. (See table A)
2. The appliance must be connected to a chimney authorised for solid fuels with a minimum
diameter of 130 mm.
3. The fume exhaust system is based on the depression (draught) in the place of combustion
and a light fume exhaust over-pressure (forced exhaust). This makes it essential for the
exhaust pipe to be installed correctly and hermetically.
4. To seal and insulate the pipes, only use heat-resistant materials (up to 300 °C) such as
adhesive tape in aluminium, rock wool or high-temperature silicone.
5. The stove must be placed, so that the electric cord is easy to reach.
fig. 1
fig. 2
*see fig. 4
