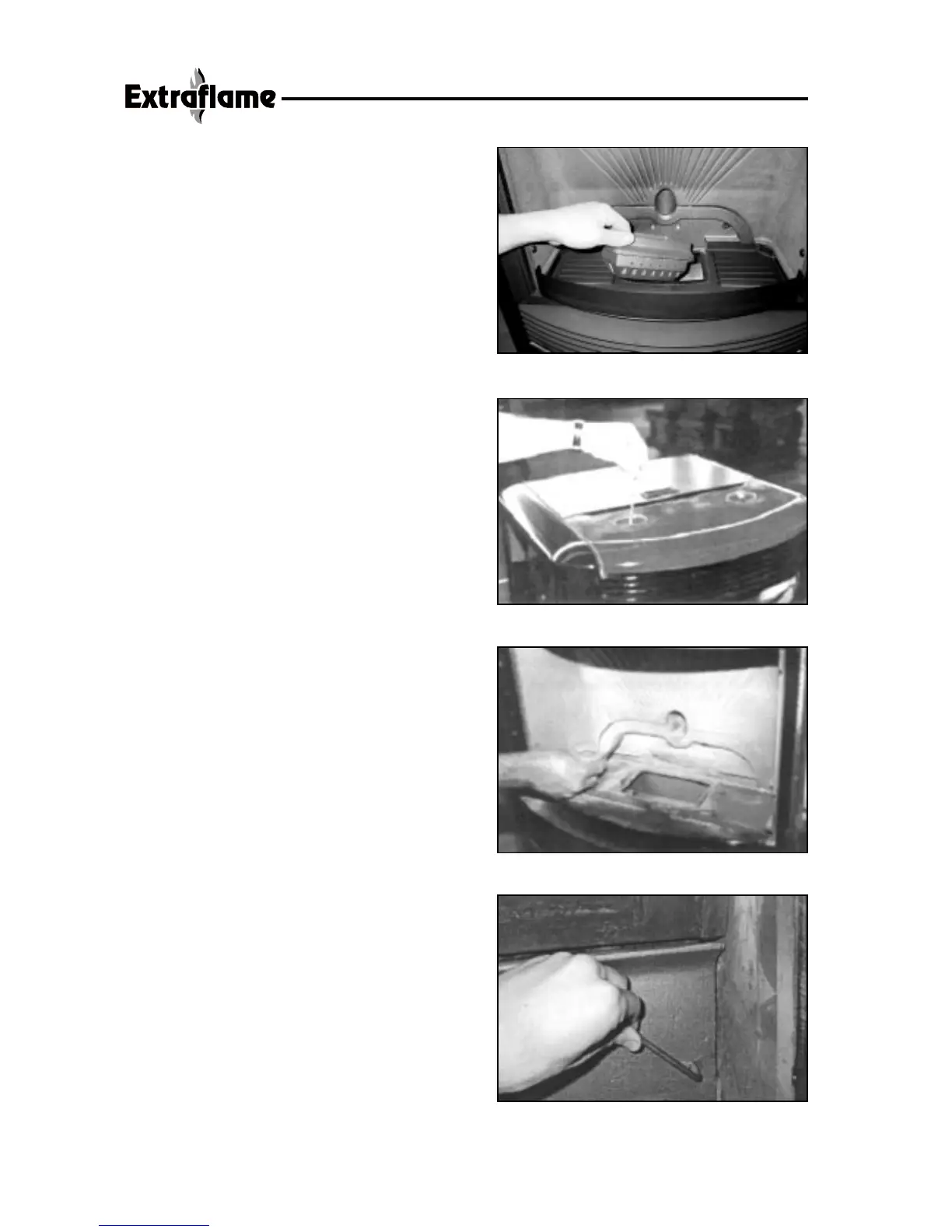

15.1 Cleaning Ecologica-I.C.MAXI- Ecol.Idro
1 The ash tray must be emptied whenever
necessary. When you carry out this opera-
tion, you should check that the chamber
under the burn pot is clean and that the
relative holes for the air are not obstructed.
Use a vacuum cleaner to simplify this
operation. (See fig. 22)
2 To have a constant heat yield all the time,
slide the two scrapers from the top to the
bottom, every day, by means of the two
knobs on the top of the stove. (See fig. 23)
This is for removing the ash, which deposits
on the tubes of the heat exchanger.
3 The glass window in the door should be
cleaned using a cloth moistened with water
(
only when the glass is cold). A solvent,
which can be bought from our dealers, can
be used for more stubborn dirt.
4 Clean the heat exchanger chamber every
week, if necessary.
5 On the Ecologica IDRO, the mobile firewall
can be removed once a month ( see Fig.25).
CLEANING PROCEDURE
a)
Open the glass door.
b) Using a specific tool, turn the two
screws/bolts, which keep the mobile firewall,
through 90º towards the centre. (See Fig. 24)
c) Remove the mobile firewall, taking care not
to damage the insulating ring.
NOTE: the insulation ring may deteriorate
with the time; when necessary it must be
replaced with a new one, which can be
purchased exclusively from our authorised
dealers.
fig. 25
