Extraflame DIVINA Use And Maintenance Manual

Display D1
Display D2
Function
Chronothermostat
DAY-NIGHT TEMPERATURE FUNCTION
PELLETS LOADING SETTING
CANALISATION FAN PARAMETERS (DIVINA PLUS)
Start/Stop chronothermostat, setting current day
Off 1
A
Current Hour Setting
Installer Parameter (must not be changed)
First Ignition Time
First Extinction Time
Consents 1st Ignition/Extinction on the weekdays
Second Ignition Time
Second Extinction Time
Consents 2nd Ignition/Extinction on the weekdays
Start Day Phase/End Night Phase
Start Night Phase/End Day Phase
Maximal Temperature Day Phase
Maximal Temperature Night Phase
06:00
B
22:00
C
25
D
20
E
% Pellets Loading Setting
00
F
Canalisation Fan Ignition/Extinction
Off
G
% Canalisation Fan Setting
00
H
Off
00:
:00
00
00:00
00:00
Off 1
00:00
00:00
1
2
3
4
5
6
7
8
9
30

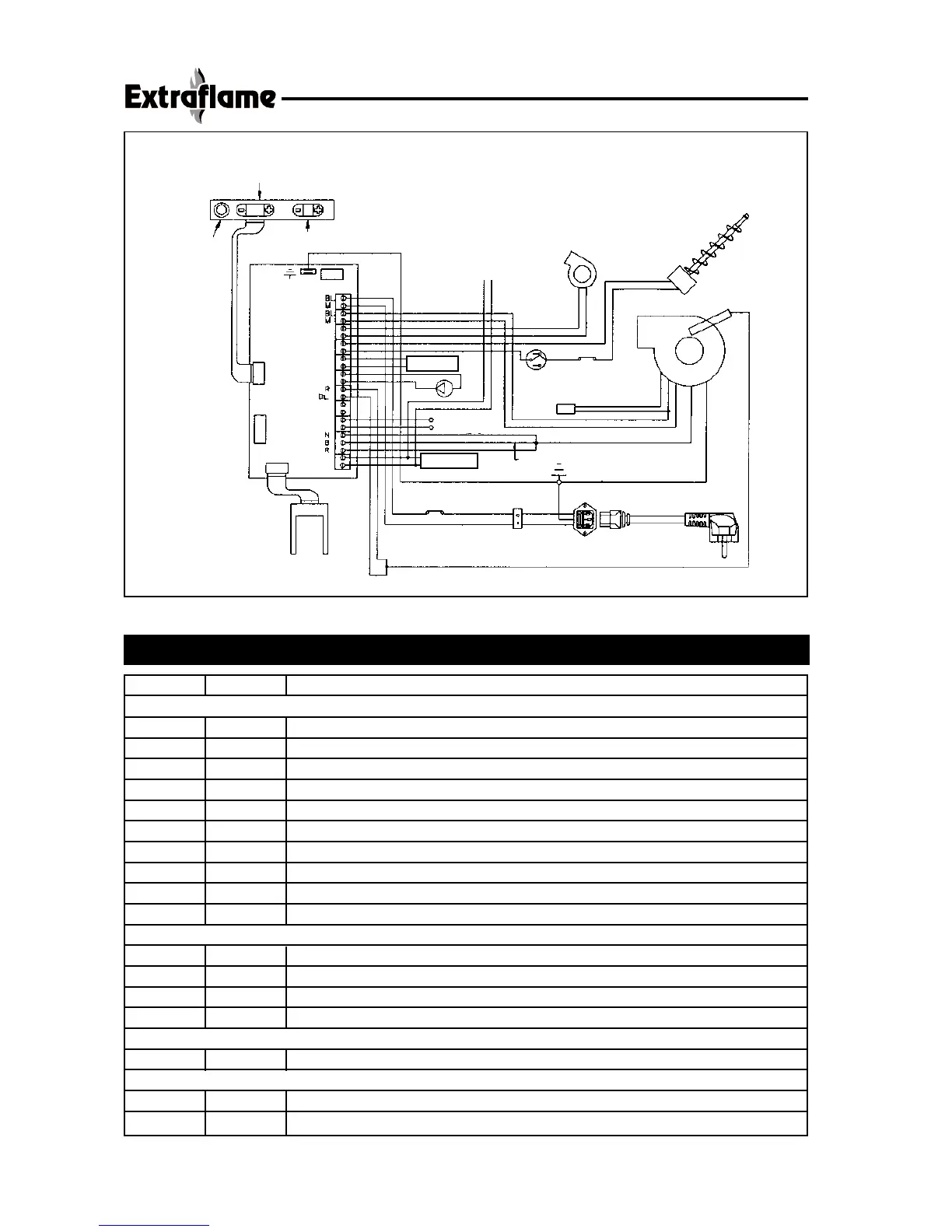

Electric drawing Ecologica Idro
12.3 USER PARAMETERS
Current Minutes Setting
AMBIENT TEMPERATURE
REGULATOR
CONTROL
PANEL
FILLING WORM
SCREW
POWER REGULATOR
ON-OFF
BUTTON
HEATING
TANGENTIAL FAN
WHITE
MOTOR
HEAT
PROBE
BLACK
BLACK
FUME EXTRACTION
MOTOR PELLETS
RESIST.
RESISTANCE
FUME
DISCHARGE FAN
PROBE
BROWN
BLUE
CONDENSADOR
THERM.
ELECTRONIC
BOARD
DEPRES.
BLACK
ENCODER
RED
WHITE
FUMES
SENSOR
YELLOW/GREEN
BLUE
2-POLE SWITCH
BLUE
FILTER
BROWN
WHITE
HOT AIR MOTOR
YELLOW/GREEN
TRIPLE OUTLET WITH FUSE
TA 5X20 2A
POWER
SUPPLY
RED
CHRONOTHERMOSTAT
PUMP
BROWN
THERMOSTAT 85°
BLUE
BLUE
WATER PROBE
THERMOSTAT 100 °
WATER PRESSURE REGULATOR
OPTIONAL :
EXTERNAL ROOM THERMOSTAT
(THE CONNECTION MUST BE SET
PARALLEL TO THE “THERMIC PROBE”
TERMINAL)
