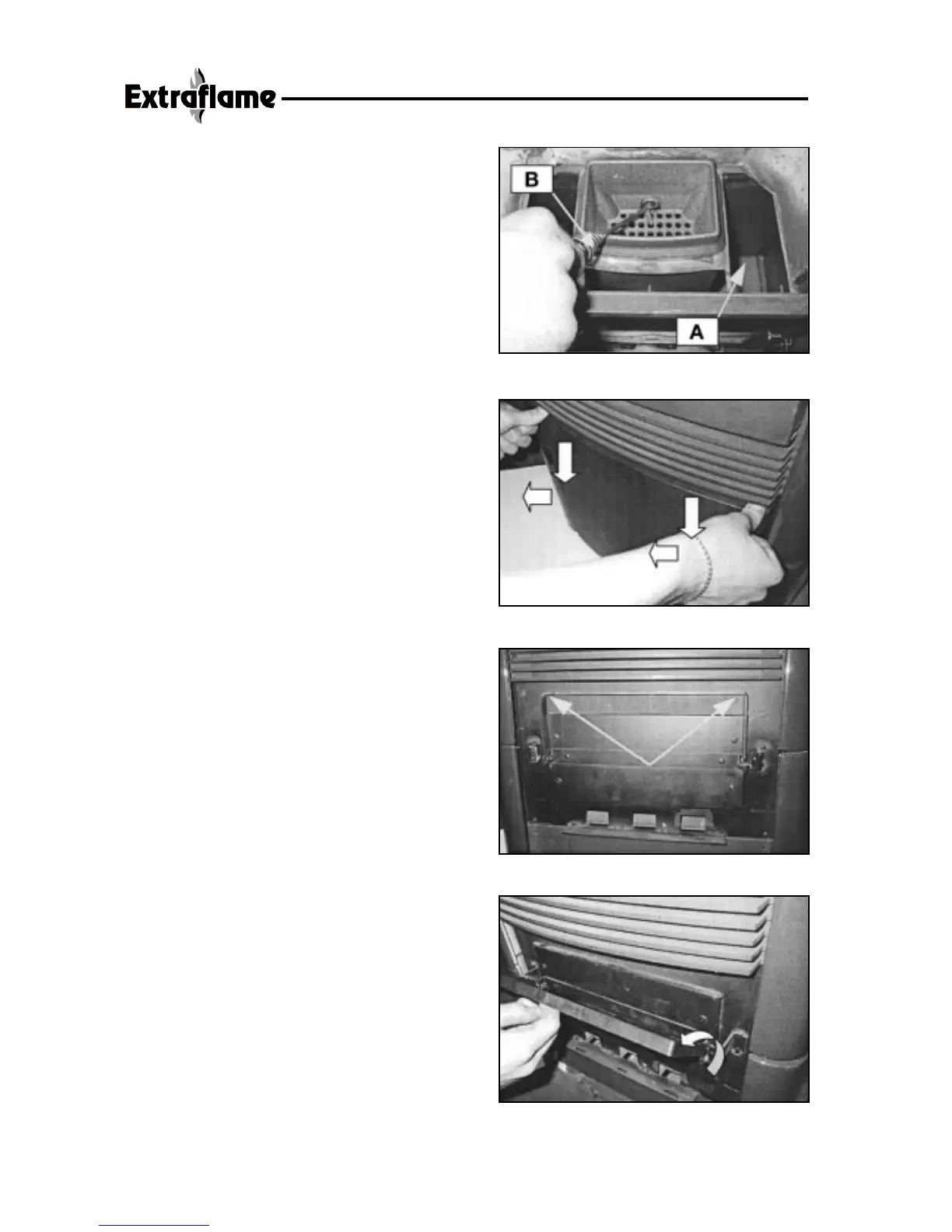

fig. 34
fig. 33
fig. 32
fig. 31
15.2 CLEANING BELLA- BELLA LUX-DIVINA
CONTESSA – PREZIOSA – BABYFIAMMA
The maintenance operations guarantee a
correct stove functioning in the time.
Failure to respect these operations annuls all
the warranties and could affect the safety of the
stove.
1. BURN POT CLEANING
The burn pot must be cleaned every day.
To do so, use the special poker(see part.B
Fig.31) to scrape off any incrustation which
may have formed in the holes. Remove the
deposited residues using a vacuum cleaner.
Remove the burn pot from its seat and
remove the ash deposits using a vacuum
cleaner.
2. CLEANING OF ASH DRAWER
The ash drawer (A Fig.31) must be emptied
according to need.
To do so, proceed as follows:
a. press the bottom door downwards and
rotate it outwards (see fig. 32).
b. grip the handle (fig. 33).
c. turn the handle 90° as shown in fig. 4 in
order to release the pan from the fixed body
of the stove.
d. pull out the ash drawer and empty the
ashes, Fig.35.
e. Proceed in the inverse order to reassemble.
N.B.: When you hook the drawer back,
ensure that the handle rests on the fixed body
of the stove when it is in the locked position;
if this operation is not carried out correctly,
combustion problems may arise as the stove
may not be properly sealed.
