14. Operation description of the radiofrequency bi-directional remote control with LCD display
for the model INSERTO COMFORT MINI
1. GENERAL DESCRIPTION
The radiofrequency remote control communicates via a bidirectional way with the mother board,
sending commands and displaying the operation status of the stove.
Operation frequency selection
Should more than one device be installed within the range of some meters, it is possible that one
interferes with the other jeopardizing the correct operation. To avoid this, it is possible to assign
a specific coding to each single device:
1. Disconnect the power supply from the stoves
2. Remove the batteries from the remote controls
3. Re-insert the battery in the remote control to be coded
4. Press simultaneously the keys 4 and 5 for three seconds until the display shows the text “UNIT”
5. Using the push-button 4 or 5, select the wished coding (from 0 to 3)
6. Enable the stove to be coded
7. After the acoustic signal of 2 beeps, press the push-button 1 for 4 seconds until the display
shows the text “extraflame”.
Here below we provide the main characteristics:
The visual interface is supplied as a display by LCD of 24 characters located on 4 lines plus 16 bars.
Capacity in transmission and reception is 4 meters in free air.
Display of the product operational status.
Direct commands for switching ON/OFF, power change.
Setting the weekly programmer (chronothermostat)
Power supply by batteries (2 x 1,5 V type AA).
Size 61 x 150 x 20 (Base x Height x Depth)mm
2. THE KEYBOARD

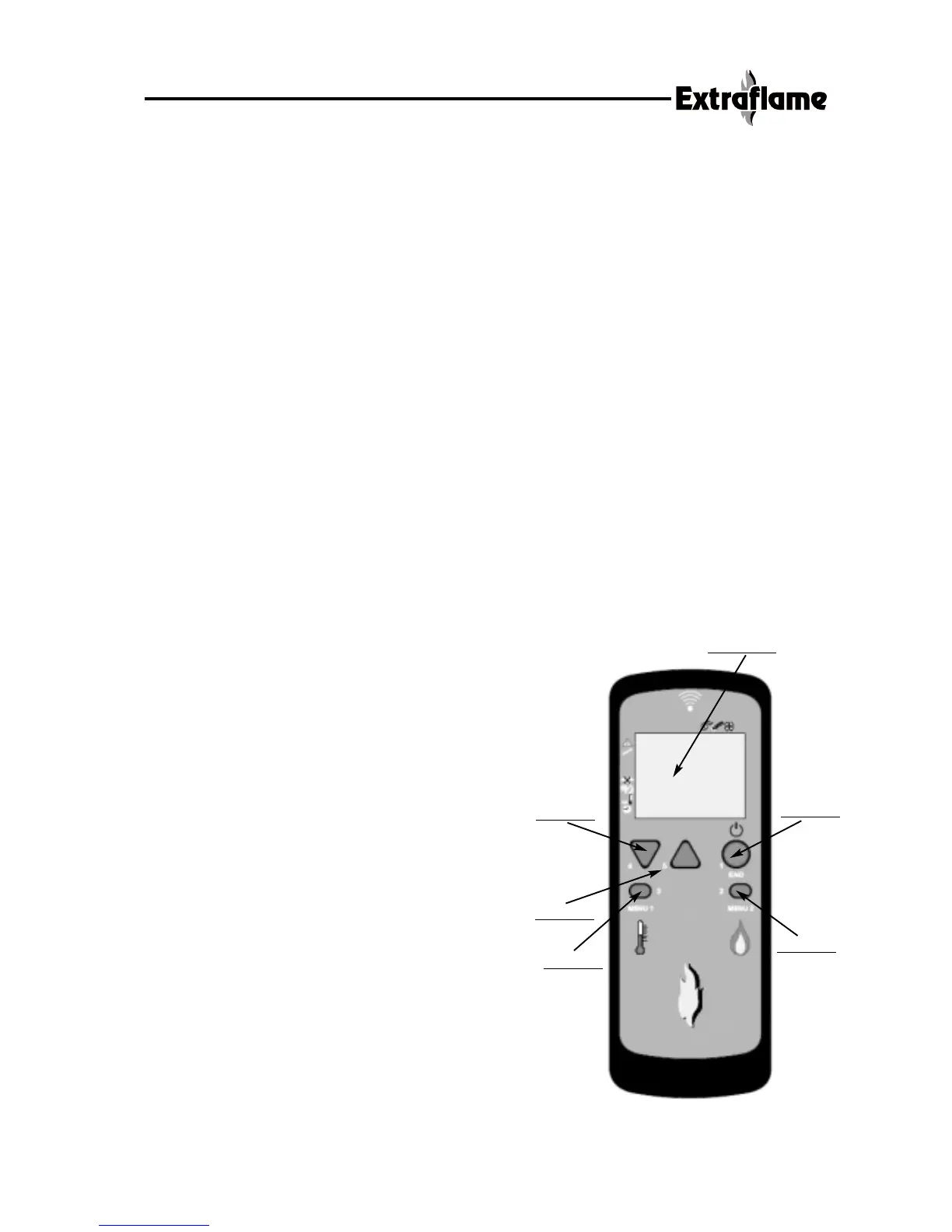

Here below we indicate the image of the radiofrequen-
cy remote control for the dialog with the mother board.
Button 1 – ON/OFF unlock
The key, pressed for two seconds, allows the manual
ignition or the switching OFF of the stove according to
the fact that one is in the ON or OFF status.
When the alarms occur, bringing the stove to the
Block, the button allows the unlock and the following
passage to the status
OFF.
During the programming of the user’s parameters
allows to exit returning to the main menu.
Buttons 4 e 5 – Increase / Decrease parameter
In the main screen, the buttons allow to adjust the
power of operation of the stove from a minimum value
of 1 to a maximum value of 5; such a value is indicates
in the upper display.
During the modification of the user’s parameters, the
buttons allow to perform the increase/decrease
desired of the parameter, whose value is displayed on
the first line of the display.
Buttons Menu 1(3) and Menu 2 (2)
The following buttons allow to enter and set the user’s
programmings.
Pulsante 1
Pulsante 2
Pulsante 3
Pulsante 5
Pulsante 4
Display LCD
